XFX RADEON RX480 Black Edition OC AMD Graphics Card 8GB

8GB XFX Radeon RX 480 Black Ed. with Backplate, 14nm, PCIe 3.0, 8000MHz GDDR5, 1120MHz GPU, 1328MHz Boost, 2304 Streams

XFX
Scan code: LN73180 Manufacturer code: RX-480M8BBA6 Request call
£259.99Item overdue since 19 October 2016
Pre order
Pay on Scan Finance with a 10% deposit from just £6.49 / month (APR 15.9%)
review High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

AMD XFX BLACK EDITION - Radeon RX 480 GPU

XFX Black Edition RX 480 Graphics Card

The RX 480 XFX Black Edition brings a jump in clock speeds for a little extra cost. This graphics card, filled with effective technologies and mighty components, will fluently run the most recent of games. This Radeon from XFX allows you to see digital games and other media in crisp detail thanks to various tech such as FreeSync. The Black Edition RX 480 is the upgrade on the XFX 480 Core Edition.

2304
Streams

8GB
GDDR5

1120MHz
Core Clock

1328MHz
Boost Clock

ADVANCED RX 480 GRAPHIC PERFORMANCE

Unlock the Potential of SAPPHIRE RX 480

Embedded into this SAPPHIRE 480 graphics card is their new NITRO Boost switch that increases the boost clock and power limit for higher performance, to unleash the gaming performance of the card. Planning to overclock or looking for maximum performance? SAPPHIRE NITRO 480 cards come with an 8 pin power connector to plug in and enable Nitro Boost.

MULTI-MONITOR GPU DISPLAY TECH

Experience AMD Eyefinity Gaming Immersion

Taking you beyond the boundaries of traditional PC displays, Eyefinity embedded into this RX Radeon 480 is capable of running multiple monitors. Expanding the traditional limits of a desktop computer, Eyefinity not only enhances games but multiplies work-station screen area making you more productive.

*Number of supported displays can vary depending on Radeon RX 480 card.

RX 480 CROSSFIRE TECHNOLOGY

AMD Harness The Power Of Multiple GPU

With AMD’s Crossfire tech your Radeon RX 480 is capable of working along-side other compatible graphic cards. By applying multiple GPUs to your PC you can enhance the performance output dramatically. It boasts the ability to combine the power of two, three or even four graphics cards together, the perfect solution to those that demand extreme performance.

SMOOTH GAMING SESSIONS

AMD Graphics FreeSync Technology

Every PC gamer knows how incredibly smooth gaming can be at a steady 60+ FPS. Now you can have that low-latency experience at virtually any framerate with AMD FreeSync monitors. The Radeon 480 features FreeSync tech that will free your games and their cinematics of screen tearing, and minimize stuttering.

RADEON 480 COOLING EFFICIENCY

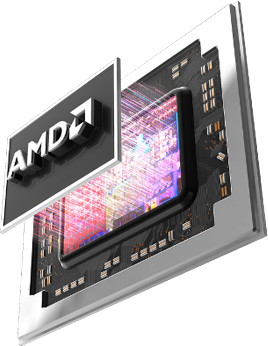

FinFET 14nm Enhancing Gaming

The Polaris architecture precisely combines the latest 14nm FinFET process and AMDs advanced power, enhancing technologies for a superior cool and quiet gaming experience. Get the most from you Radeon 480 from AMD.

AMD RADEON CONNECTIONS

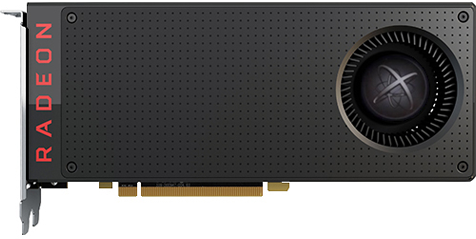

RX 480 Connection Capabilities

The Radeon RX 480 comes with the connectivity ports that you expect to see on any graphics cards. Vital GPU connections are present such as HDMI and multiple DisplayPorts, making it easy to connect to your chosen display screen - even when using VR.

Specifications
Specifications
Chipset Radeon RX 480
Edition Black Edition
Manufacturing Process 14 nm
Microarchitecture Polaris - Ellesmere XT
Streams 2304
Core Clock 1120 MHz
Boost Clock 1328 MHz
Memory Size 8GB
Memory Type GDDR5
Memory Clock 2000 MHz
Memory Speed (Effective with DDR) 8000 MHz
Memory Data Rate
Memory Bus 256 Bit
Memory Bandwidth 256 GB/s
Cooling Solution Single Fan (1)
Cooler Design AMD Reference Design Blower Fan
Fitted/Included Backplate Yes
Interface PCIe 3.0 (x16)
Connectivity
  • 3 x DisplayPort 1.4
  • 1 x HDMI 2.0b
Maximum Digital Resolution 3840x2160 (Ultra HD)
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
AMD CrossFire Support 2 Way CrossFireX
AMD Freesync Support Yes
Microsoft DirectX Support 12 API
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power
Graphics Card Power Connectors 1 x 6-pin PCIe
Minimum Recommended PSU 500 W
Maximum GPU Temperature
Dimensions 127 x 39 x 240 mm
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
TekSpek Guides
AMD Radeon RX480
AMD Radeon RX480
Date Issued: 29th Jun 2016

It's been a good start to the year for PC enthusiasts. Intel has unleashed the deca-core Core i7-6950X and Nvidia has served up a suitable partner in the form of the high-end GeForce GTX 1080. Handy, if you happen to have thousands of pounds to pour into your next PC, but for everyone else a more mainstream solution is needed to sate our appetites.

Read More
