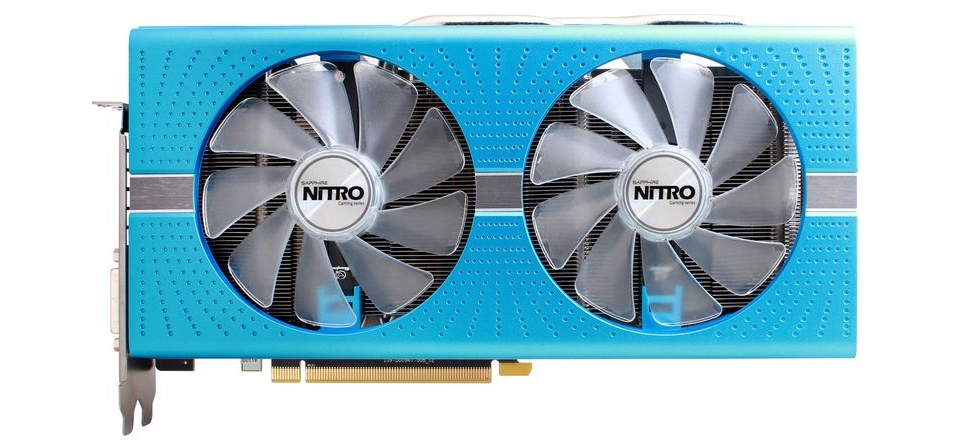

Special Edition AMD Radeon™ RX590 NITRO+ Gaming Graphics Card by Sapphire

Sapphire Radeon RX 590

Sapphire RADEON RX 590 GPU SAPPHIRE Technology is proud to introduce a set of superior features for PC Gamers’ with the new SAPPHIRE NITRO+ Radeon RX 590 8GB Special Edition Graphics card. Designed to optimize performance and efficiency on FinFET 12nm process technology, the NITRO+ RX 590 8GB Special Edition comes equipped with the Award Winning SAPPHIRE Dual –X Cooler, and is capable of delivering a smooth and fast gaming experience at high resolutions. There is also a stylish RGB LED SAPPHIRE logo on the side which changes colour to indicate board temperature which can be easily controlled with SAPPHIRE TriXX software.

2304Stream Processors

8GBGDDR5 Memory

1560 MHzBoost Clock

Ultimate Polaris Architecture

Polaris Architecture

EVEN BETTER PERFORMANCE Gamers will experience the advantages of APIs like DirectX® 12 and Vulkan® which have been optimized on AMD’s Radeon™ RX graphics platform in collaboration with many of the world’s top game developers and studios, to deliver unrivalled gaming performance and stunning lifelike imagery. Powered by “Polaris” Architecture Radeon™ the NITRO+ RX 590 8GB Special Edition features the 4th Gen GCN graphics cores, display engine and multimedia cores, all on FinFET 12 process technology. This has enabled SAPPHIRE to push up the clocks, and reach up to 10% better performance than the competition. Packed with 2304 GCN-based stream processors, the SAPPHIRE NITRO+ RX 590 8GB Special Edition is the card to deliver 1080p gaming and enhanced performance in everyday applications.

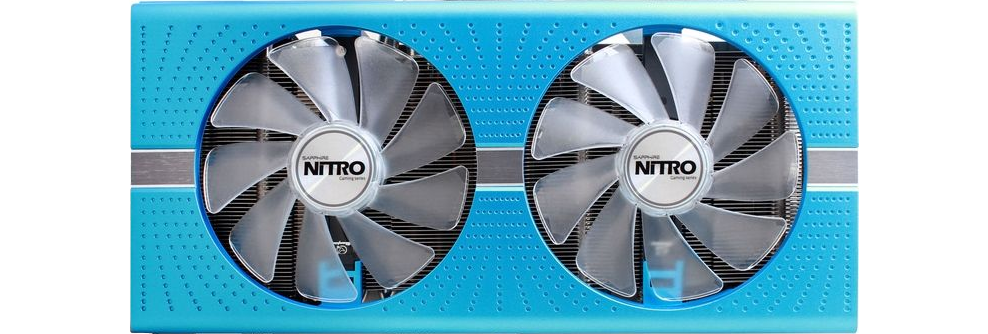

Dual X Cooling – A Proven Performer

Sapphire Cooling

Optimized for gaming performance The Dual-X cooling system on the NITRO+ RX 590 8GB Special Edition continues to push the performance boundaries beyond the default specification. When targeting the same GPU temperature of 75 degrees Celsius, the cooling system is up to 12 dbA quieter and with significantly lower component temperatures. The cooling system module has 2x 8 mm + 2x 6mm heat pipes, a larger heat dissipation surface of 54 fins and a NEW thermal grease producing 30% more thermal conductivity. All of these features cement SAPPHIRE’s Dual – X Cooler as the best in class system available on the market today. SAPPHIRE’s Intelligent Fan Control III system, increases the precision of the fan controller. The differences in RPMs from fan to fan have been brought down from 10% to 3.2%, increasing the cooler’s accuracy.

Radeon RX590 Connections

RX 590 Ports

2 x Display Ports 1.4 / 2 x HDMI 2.0b / Dual Link DVI-D

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 5700 XT RX 5700 VII RX Vega 64 RX Vega 56 RX 590 RX 580 RX 570 RX 560 RX 550
Architecture RDNA RDNA GCN 5th GCN 5th GCN 5th GCN 4th GCN 4th GCN 4th GCN 4th GCN 4th
GPU Navi 10 Navi 10 Vega 20 Vega 10 Vega 10 Polaris Polaris XTX Polaris 20 Pro Baffin Baffin
Stream Processors 2,560 2,304 3,840 4,096 3,584 2,304 2,304 2,048 896/1024 512/640
Reference Base Clock 1,605 MHz 1,465 MHz 1,400 MHz 1,247 MHz 1,156 MHz 1,469 MHz 1,257 MHz 1,168 MHz 1,175 MHz 1,287 MHz
Reference Boost Clock 1,905 MHz 1,725 MHz 1,750 MHz 1,546 MHz 1,471 MHz 1,545 MHz 1,340 MHz 1,244 MHz 1,275 MHz 1,287 MHz
Memory 8GB GDDR6 8GB GDDR6 16GB HBM2 8GB HBM2 8GB HBM2 8GB GDDR5 4GB/8GB GDDR5 4GB/8GB GDDR5 4GB GDDR5 4GB GDDR5
Memory Controller 256-bit 256-bit 4096-bit 2048-bit 2048-bit 256-bit 256-bit 224-bit 128-bit 64/128-bit
TDP 225W 225W 300W 295W 210W 225W 185W 150W 60-80W 50W
Specifications
Key Specifications
Chipset Radeon RX 590
Edition NITRO+ Special Edition
Manufacturing Process 12 nm
Microarchitecture Polaris 30 XT
Cores & Clocks
Streams 2304
Core Clock TBA MHz
Boost Clock 1560 MHz
Video Memory (VRAM)
Memory Size 8GB
Memory Type GDDR5
Memory Clock 2100 MHz
Memory Speed (Effective with DDR) 8400 MHz
Memory Bus 256 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling Solution Dual Fan (2)
Cooler Design SAPPHIRE Dual-X with Quick Connect Support
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 3.0 (x16)
Connectivity
  • 2 x DisplayPort 1.4
  • 1 x DVI-D DL
  • 2 x HDMI 2.0
Visuals
AMD CrossFire Support Supported
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™ 2
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 5 Displays
Maximum Digital Resolution 5120x2880 @ 60Hz
Maximum Analog (VGA) Resolution N/A
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors
  • 1 x 6-pin PCIe
  • 1 x 8-pin PCIe
Graphics Card TDP/Power 250 W
Minimum Recommended PSU 500 W
Maximum GPU Temperature
Physical
Width 2.2 Slot
Low Profile Support N/A
Dimensions 135 x 43 x 260 mm
Package Type Retail
Additional Information
Scan Code LN94014
Model Number 11289-01-20G
GTIN 4895106286276
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
AMD Radeon RX590
AMD Radeon RX590
Date Issued: 16th Nov 2018

AMD has had a strong position in the premium mainstream graphics card market with the Radeon RX 480 (2016) and RX 580 (2017) GPUs. The duo uses what is known as the Polaris architecture to good effect, enabling high-quality PC gameplay at the popular FHD (1,920x1,080) and QHD (2,560x1,440) resolutions.

Read More

Reviews
8GB Sapphire Radeon RX 590 NITRO+ Special Edition, 12nm, 2304 Streams, 1560MHz Boost, 8400MHz GDDR5, 2x DP/2x HDMI/DVI-D is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from excellent value Excellent performance considering the price. Paid substantially less than I would have for a gtx 1070 and performance is solid at 1440p in ask games. Obviously I tone down some of the ridiculous settings (looking at you Witcher 3 hair settings) to maintain good frame rates but got £250 I'm playing AAA titles with no issue. Only complaint is that it is a relatively high power component which I hadn't realised at first, ended up switching PSUs to compensate. Performance is actually on par with the "Fatboy" version a friend owns (likely due to the higher memory clock) without using up that third slot.
Date published: 2018-12-11
Rated 5 out of 5 by from Great Card for the price. destroys the 1060 6gb in everything. easily overclocked to 1650mhz core clock Great Card for the price. destroys the 1060 6gb in everything. easily overclocked to 1650mhz core clock so after 15 hours of solid testing both stock and overclocked i can safely say this card is much better then the 1060 6gb i have. card is aesthetically please with a sturdy cooler and very stylish backplate. performance at 1080p is solid on every game test at 1080p ultra settings. amd software is often not the best but it seems to be working with no issue so far. CONS (not really cons more like minor gripes ) blue leds... would of preferred to be able to change the colours of the led. outer packaging does not feel like they used the best materials but is secondary to performance. power. using a 8+6pin for a mid range budget gpu is a lot of power. a decent power supply is needed but everyone should have a decent power supply anyway in my opinion 3d mark firestrike score screenshot included
Date published: 2018-11-17
