Gigabyte AORUS AMD Radeon RX 580 8GB XTR Graphics Card
8GB Gigabyte AORUS Radeon RX 580 XTR, 14nm Polaris, 2304 Streams, TBDMHz GPU, TBDMHz Boost, 8000MHz GDDR5, 3xDP/HDMI/DVI
XTREME Edition AMD RX 580 from Aorus & Gigabyte
Aorus XTREME EDITION RX 580 Gaming Card
AORUS graphics cards are crafted for perfection in pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the revolutionary Radeon GPUs, the AORUS Radeon graphics card brings you incredible gaming experience. Using technologies such as the Windforce 2X Cooling System make the Aorus RX 580 is a force to be reckoned with. It boasts 8GB of GDDR5 for unmatched gaming graphics.
Aorus All-Round Cooling Solution
RX 580 Windforce Cooling System
AORUS provides the all-around cooling solution for all key components of the graphics card. We take care not only GPU but also VRAM and MOSFET, to ensure a stable overclock operation and longer life. On the front side, the large copper base plate dissipates the most heat from the GPU and VRAM. On the back side, the copper back plate dissipates the heat from the GPU back side. All other key components are taken care of very well by the WINDFORCE cooling module. AORUS ensures the customer a better cooling solution in many ways.
Advanced Aorus Fan Cooling
Windforce 2X cooling system
Equipped with 2x 100mm unique blade fans, 4 pure copper composite heat-pipes, and heat-pipe direct touch GPU, the WINDFORCE 2X cooling system delivers an effective heat dissipation capacity. To optimize air flow the RX580 uses alternate spinning fans to reduce air turbulence and effectively dissipate the heat.
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
Unique Blade Fans
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by 23% over the traditional fans.
3D Active Fans
The AORUS RX 580 are equipped with 3D-Active Fan. The fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.
RGB Lighting Effects
Gigabyte Aorus RGB FUSION
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics engine.
SMART POWER LED
Gigabyte Power LED
Be alert when PCI-E voltage is unstable with the smart power LED indicators. When experiencing any power abnormality, the indicator will alert gamers via a flashing light, a stable light symbolizes a dissconnected or faulty cable and no light means the voltage to your power supply is stable.
Premium Build in Every Aspect

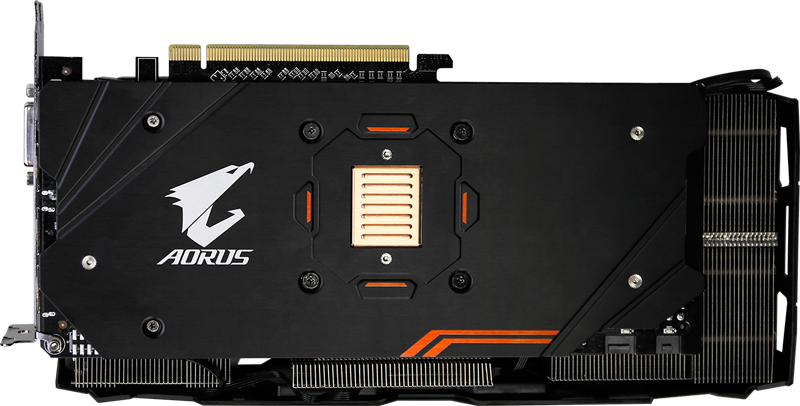

Stylish Metal Back Plate
A Glorious black metal back plate on the Xtreme Gaming 580 provides solid protection, strengthens the structure and inspires the passion for gaming. It also features a large Aorus logo.
Overclock Your Aorus RX 580
Aorus Graphics Engine
With the Aorus Graphics Engine you can monitor and fine tune in real-time your Clock Speeds, Voltage, fan performance and power target. You can tune them to your own gaming preference using the intuitive user interface.
RX 580 Connections
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
|Chipset||Radeon RX 580|
|Manufacturing Process||14 nm|
|Core Clock||TBD MHz|
|Boost Clock||TBD MHz|
|Memory Speed (Effective with DDR)||8000 MHz|
|Memory Data Rate|
|Memory Bus||256 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||WINDFORCE 2X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||3840x2160 (Ultra HD)|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power||170 W|
|Graphics Card Power Connectors||
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
|Dimensions||133.28 x 54.64 x 275.5 mm|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 36 months
- Return to base
- DOA Period:
- 28 days
- RTB Period:
- 36 months
- 0871 472 4747
Date Issued: 19th Apr 2017
It has been a busy start to 2017 for chip giant AMD. Having shaken-up the CPU landscape with the launch of its Ryzen 7 and Ryzen 5 processors, the company is now turning its attention to graphics by refreshing its range of Radeon GPUs.
