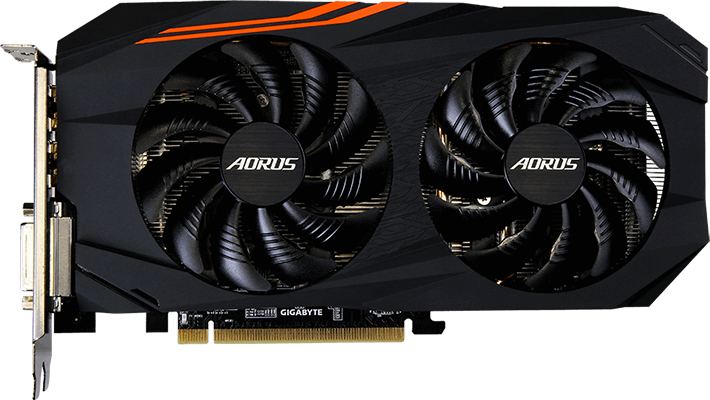

Gigabyte AORUS AMD Radeon RX 580 8GB Graphics Card
Radeon RX 580 AORUS GPU built on Polaris Architecture
8GB Gaming Graphics Card from GIGABYTE and AMD
The Radeon 580 AORUS from GIGABYTE produce a phenomenal gaming output, this 8GB graphics card is based on the revolutionary AMD Polaris architecture. It boasts GPU Gauntlet Sorting, superior performance and power efficiency, supports up to 8K display and displays outstanding Virtual Reality gaming performance. It’s cooled by GIGABYTE’s WindForce system and has also been built with the cards protection in mind.
WINDFORCE 2X 580 Cooling
aorus All-around cooling solution
AORUS provides the all-around cooling solution for all key components of the graphics card. We take care not only GPU but also VRAM and MOSFET, to ensure a stable overclock operation and longer life. On the front side, the GPU direct touch heat-pipes combines a metal base plate to dissipate the most heat from the GPU and VRAM. On the back side, the copper back plate dissipates the heat from the GPU back side. All other key components are taken care of very well by the WINDFORCE cooling module. AORUS ensures the customer a better cooling solution in many ways.
RX 580 Cooling System

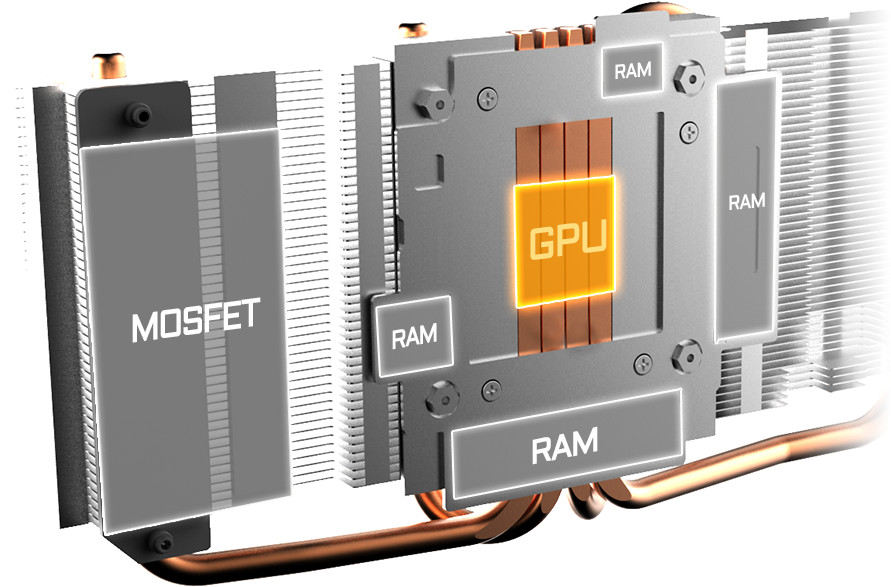

Heat Pipes Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU for enhanced thermal transfer. The heat pipes also touch a large metal base plate covering the VRAM module via thermal pads to ensure the critical cores are properly cooled.
GIGABYTE Heat Transfer

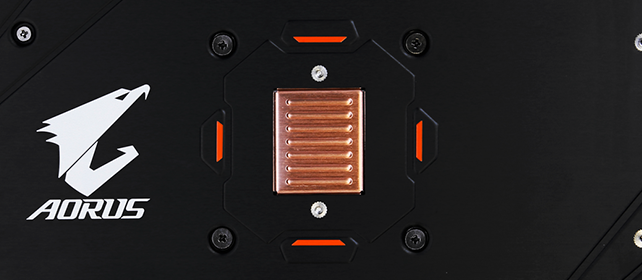

Advanced Copper Back Plate Cooling
Excessive heat from GPU not only gets dissipated utilizing the massive cooling module in the front but also through the back side with a copper plate, providing a well-rounded thermal solution for the GPU.

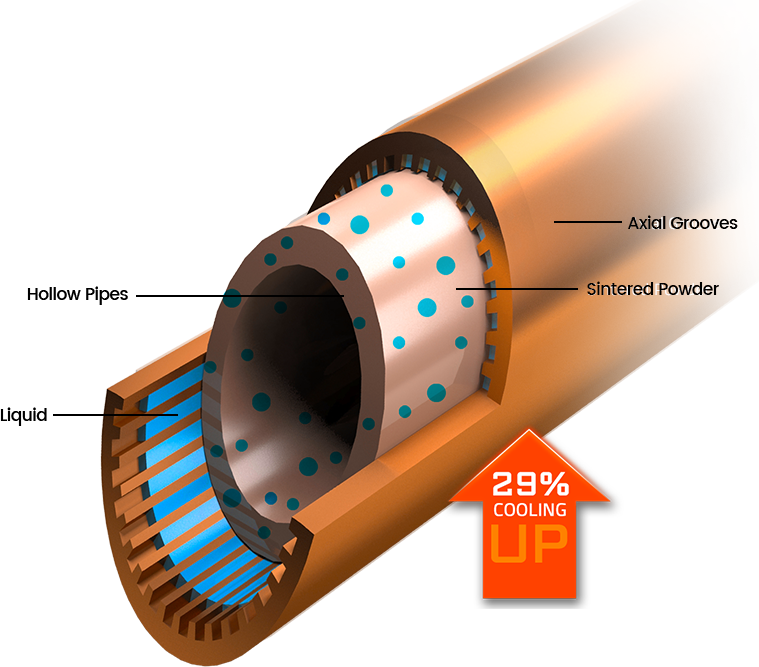

Advanced Thermal Tech
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
AORUS 580 Fan Blades

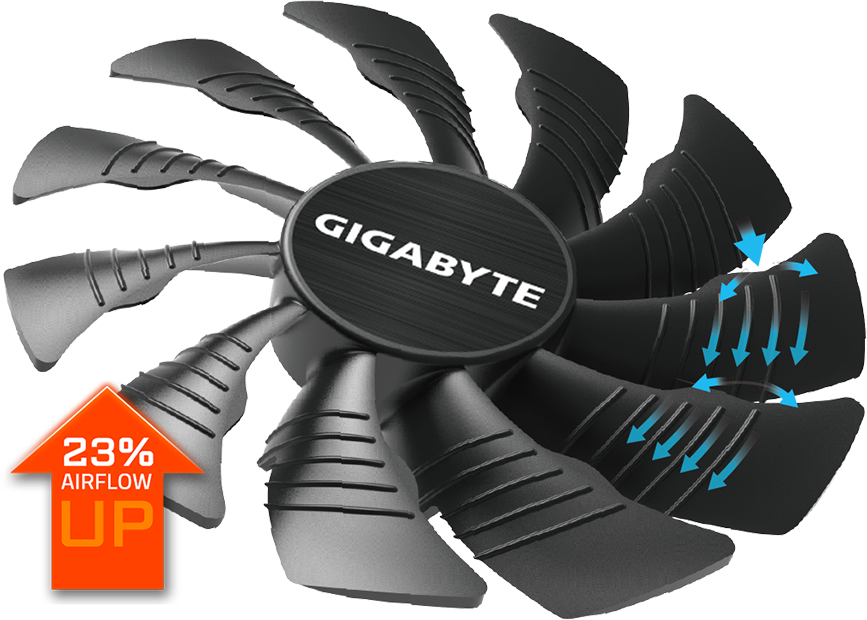

Unique GPU Fan Blade Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by 23% over the traditional fans.

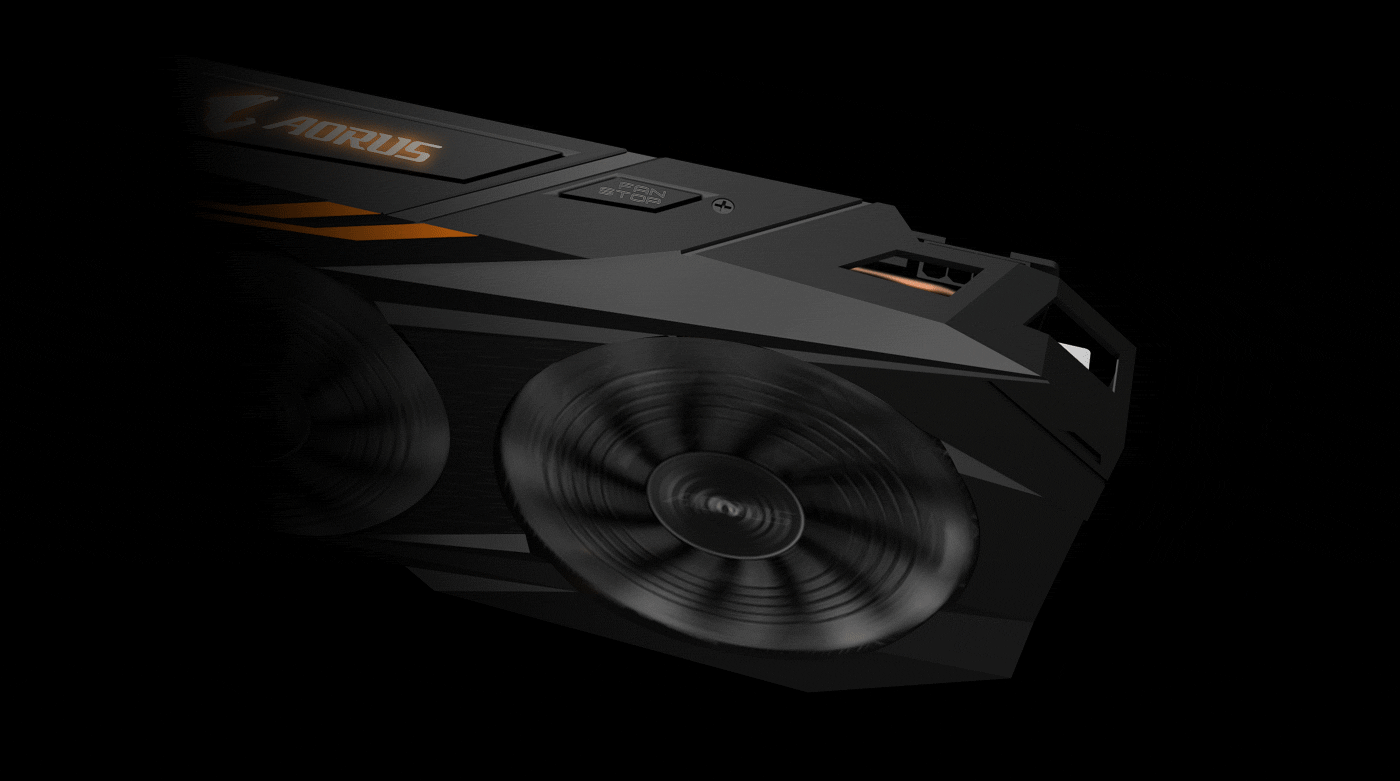

3D ACTIVE FAN
Intelligent fan activity
The AORUS graphics cards are equipped with 3D-Active Fan. The fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.
*The photo is for illustration only.
ALTERNATE SPINNING Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.
RGB Fusion Lighting
90mm Unique Blade Fan Design
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics engine.
VGA - Built for OverClocking

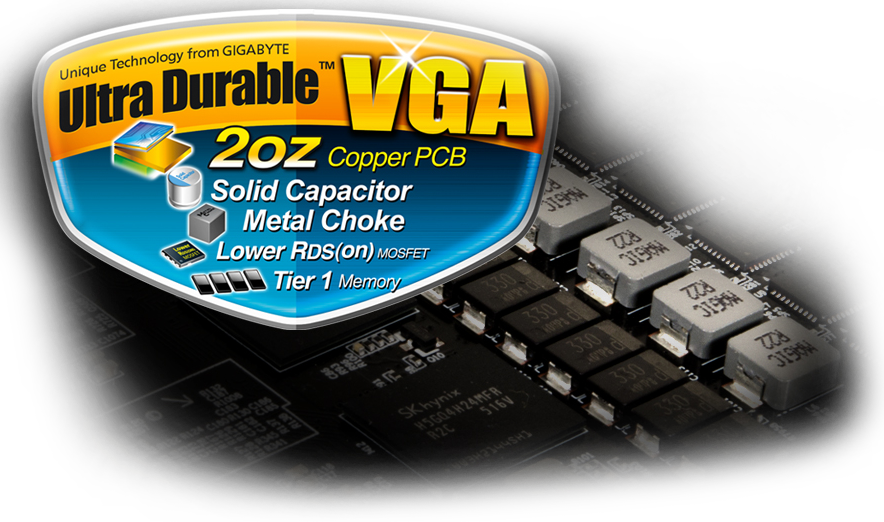

High-Grade Ultra-Durable Materials
Compared to reference design(6+1), the 6+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
GIGABYTE Radeon Protection

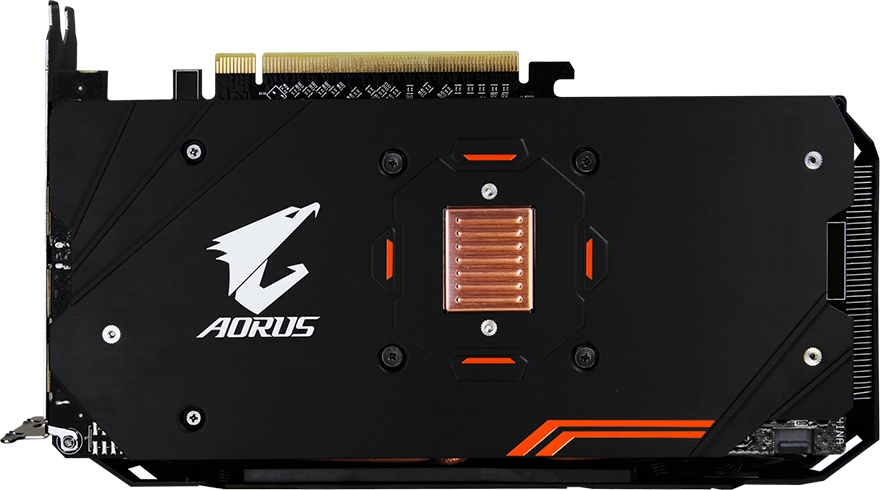

STYLISH METAL BACK PLATE
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.
Complete Control over your AORUS

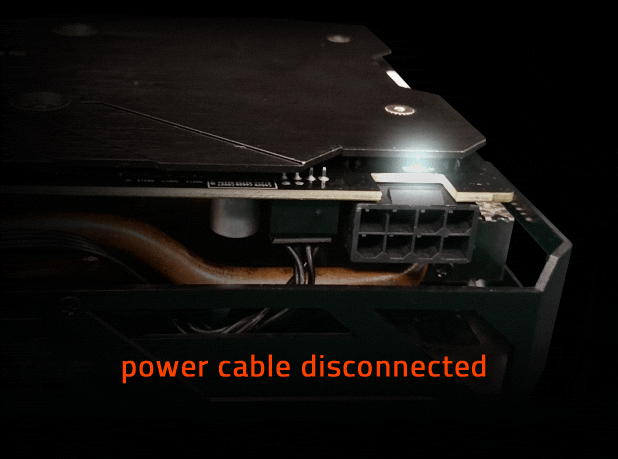

Be alert when PCI-E voltage is unstable with the smart power LED indicator.
- LED ON: power cable disconnected
- LED OFF : stable power supply
- Blinking LED: abnormal power supple

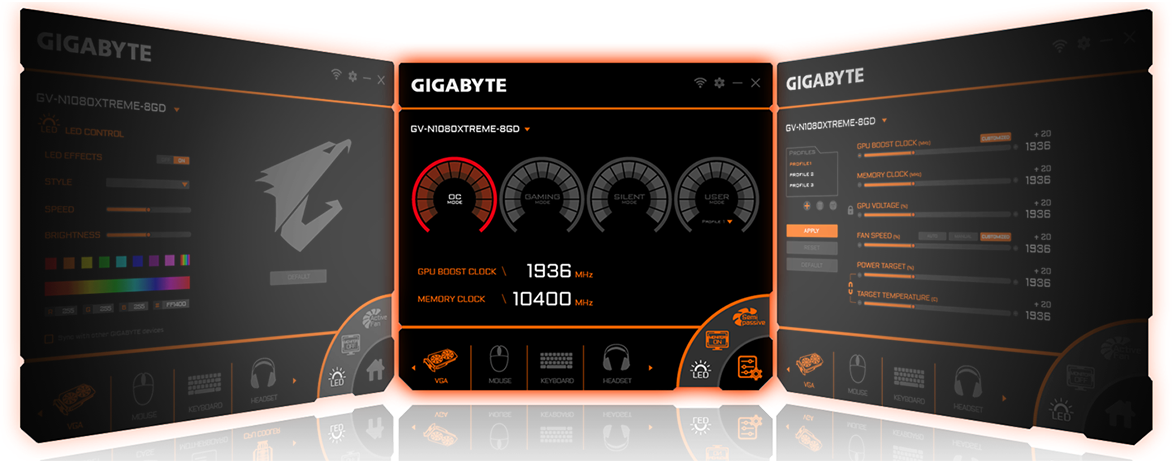

AORUS Graphics Engine
One-click Overclocking and much more!
Clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
*The interface and functionality of the software is subject to each model.)
|Chipset||Radeon RX 580|
|Manufacturing Process||14 nm|
|Core Clock||1365 MHz|
|Boost Clock||1380 (OC Mode) MHz|
|Memory Speed (Effective with DDR)||8000 MHz|
|Memory Data Rate|
|Memory Bus||256 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||WINDFORCE 2X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||3840x2160 (Ultra HD)|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power||135 W|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
|Dimensions||121 x 36 x 232 mm|
