ASUS RX480 ROG STRIX GAMING Radeon AMD 8GB Graphics Card

8GB Asus Radeon RX 480 ROG STRIX GAMING, 14nm Polaris, PCIe 3.0, 8000MHz GDDR5, 1266MHz GPU, 2304 Streams, 2x DP/HDMI

Asus
Scan code: LN75287 Manufacturer code: STRIX-RX480-8G-GAMING Request call
£278.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

AMD ASUS ROG Strix OC GAMING - Radeon RX 480 GPU

ASUS ROG Strix OC GAMING RX480 Graphics Card

This RX 480 from ASUS is their Strix OC GAMING 480, it is an impressive graphics card that takes a focus on gaming. This beautifully designed graphics card comes with an abundant of beneficial features that concentrate on stabilizing graphics, enhancing GPU performance, increasing airflow and customizing the style amongst others. The performance within the Strix RX 480 will display digital games with a crisp finish, enthralling you in any media.

2304
Streams

8GB
GDDR5

1266MHz
Core Clock

ASUS STRIX 480 BREAKDOWN

STRIX GPU COOLING SYSTEM

DirectCU III GPU Cooling Tech

The RX 480 will achieve up to 30% extra cooling performance when gaming thanks to the exclusive DirectCU III cooling technology. This tech featured on the RX 480 direct-GPU contact heat-pipes that will transport more heat away from the GPU and out-perform the reference designs.

*Image for illustration only. Actual design may vary.

ENHANCED RX480 COOLING

Triple Wing-Blade GPU Cooling

DirectCU III features triple 0dB fans engineered with a patented wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink, while operating at 3X quieter volumes than reference cards. The 0dB fans also let you enjoy games in complete silence and make DirectCU III the coolest and quietest graphics card in the market.

ASUS GPU FAN CONNECTIONS

GPU Controlled Fan Headers

When gaming it is commonly found that GPU temperatures are higher than that of the CPU, due to chassis fans usually referencing CPU temps only - resulting in inefficient cooling. The Strix 480 graphics card features two 4-pin GPU controlled headers that can be connected to system fans for targeted cooling on your RX480.

STRIX 480 EMBEDDED LED

ASUS 480 Aura RGB Lighting

ASUS Strix 480 features Aura RGB Lighting on the shroud, these Strix graphics cards are capable of displaying millions of colors in six different effects. Experience a personalized gaming system with RX 480.

GPU DURABILITY & EFFICIENCY

A More Reliable Radeon RX 480

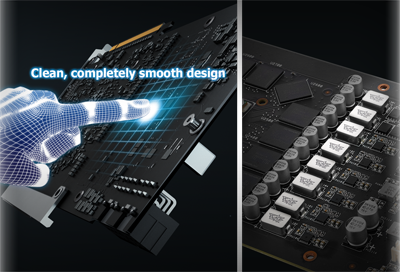

This 480 series, like various other ASUS boards, has had premium alloy components intergrated into their graphics card designs reinforcing the overall reliability. Super Alloy Power II components greatly enhance the Strix 480 efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.

ASUS GPU TWEAK II

Control and Track GTX 1060 Performance

Redesigned with an intuitive, all-new UI, GPU Tweak II makes graphics cards overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically.

SMOOTH GPU GAMING GRAPHICS

Radeon 480 Freesync Technology

Every PC gamer knows how incredibly smooth gaming can be at a steady 60+ FPS. Now you can have that low-latency experience at virtually any framerate with AMD FreeSync embedded into this graphics card. The RX 480 features FreeSync tech that will free your games and their cinematics of screen tearing and help minimize stuttering - enhancing the performance of your GPU.

SMOOTH GPU GAMING GRAPHICS

Premium Quality and The Best Reliability

ASUS graphics cards are produced using Auto-Extreme technology, an industry-first 100% automated production process, and feature premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability.

STRIX RX 480 CONNECTIONS

2x HDMI 2.0b | 2x DisplayPort 1.4 | 1x Dual-Link DVI

Specifications
Specifications
Chipset Radeon RX 480
Edition Strix 8G Gaming
Manufacturing Process 14 nm
Microarchitecture Polaris - Ellesmere XT
Streams 2304
Core Clock 1266 MHz
Boost Clock
Memory Size 8GB
Memory Type GDDR5
Memory Clock 2000 MHz
Memory Speed (Effective with DDR) 8000 MHz
Memory Data Rate
Memory Bus 256 Bit
Memory Bandwidth 256 GB/s
Cooling Solution Tri Fan (3)
Cooler Design DirectCU III with RGB LED
Fitted/Included Backplate Yes
Interface PCIe 3.0 (x16)
Connectivity
  • 2 x DisplayPort 1.4
  • 1 x DVI-D
  • 2 x HDMI 2.0
Maximum Digital Resolution 3840x2160 (Ultra HD)
Maximum Analog (VGA) Resolution
Max. Concurrent Displays 4 Displays
AMD CrossFire Support 2 Way CrossFireX
AMD Freesync Support Yes
Microsoft DirectX Support 12 API
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power
Graphics Card Power Connectors 1 x 8-pin PCIe
Minimum Recommended PSU 500 W
Maximum GPU Temperature
Dimensions 134 x 40 x 298 mm
Package Type Retail
