Scan code:
LN106111
Manufacturer code:
HMA81GR7DJR8N-XNTG

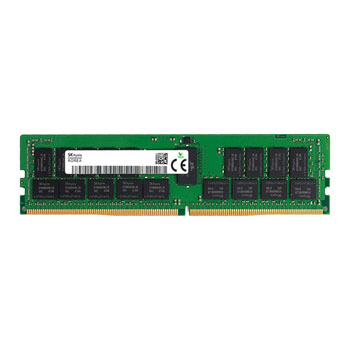

SK Hynix 8GB DDR4 3200MHz ECC Reg RDIMM Server Workstation Memory
8GB (1x8) Hynix DDR4 PC4 25600 3200MHz CL22 ECC Reg. 1.2V RDIMM
Scan code:
LN106111
Manufacturer code:
HMA81GR7DJR8N-XNTG
RRP: £59.99
Order now and receive it
by Monday, 17th August
Delivery Options
- By DPD On 17th Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
Features
Power Supply: VDD=1.2V (1.14V to 1.26V)
VDDQ = 1.2V (1.14V to 1.26V)
VPP - 2.5V (2.375V to 2.75V)
VDDSPD=2.25V to 2.75V
Functionality and operations comply with the DDR4 SDRAM datasheet
16 internal banks
Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Supports ECC error correction and detection
On-Die Termination (ODT)
Temperature sensor with integrated SPD
This product is in compliance with the RoHS directive.
Per DRAM Addressability is supported
Internal Vref DQ level generation is available
Write CRC is supported at all speed grades
DBI (Data Bus Inversion) is supported(x8)
CA parity (Command/Address Parity) mode is supported
VDDQ = 1.2V (1.14V to 1.26V)
VPP - 2.5V (2.375V to 2.75V)
VDDSPD=2.25V to 2.75V
Functionality and operations comply with the DDR4 SDRAM datasheet
16 internal banks
Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Supports ECC error correction and detection
On-Die Termination (ODT)
Temperature sensor with integrated SPD
This product is in compliance with the RoHS directive.
Per DRAM Addressability is supported
Internal Vref DQ level generation is available
Write CRC is supported at all speed grades
DBI (Data Bus Inversion) is supported(x8)
CA parity (Command/Address Parity) mode is supported
