Scan code: LN97969 Manufacturer code: FD-PSU-IONP-860P-BK

Fractal Design ION+ 860P 860 Watt Fully Modular Platinum PSU/Power Supply

860W Fractal Design Ion+ 860P, Full Modular, 80 PLUS Platinum, SLI/CrossFire, Single Rail, 71.6A, 140mm Fan, ATX PSU

Thumbnail 1 : Fractal Design ION+ 860P 860 Watt Fully Modular Platinum PSU/Power Supply Thumbnail 2 : Fractal Design ION+ 860P 860 Watt Fully Modular Platinum PSU/Power Supply Thumbnail 3 : Fractal Design ION+ 860P 860 Watt Fully Modular Platinum PSU/Power Supply Thumbnail 4 : Fractal Design ION+ 860P 860 Watt Fully Modular Platinum PSU/Power Supply Fractal Design ION+ 860P 860 Watt Fully Modular Platinum PSU/Power Supply : video thumbnail 1
Scan code: LN97969 Manufacturer code: FD-PSU-IONP-860P-BK
£124.99
From £11.22 / month (APR 14.9%)
Monthly Payment: £21.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £124.99
Total inc. interest: £130.14
Monthly Payment: £11.22
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £124.99
Total inc. interest: £134.65
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

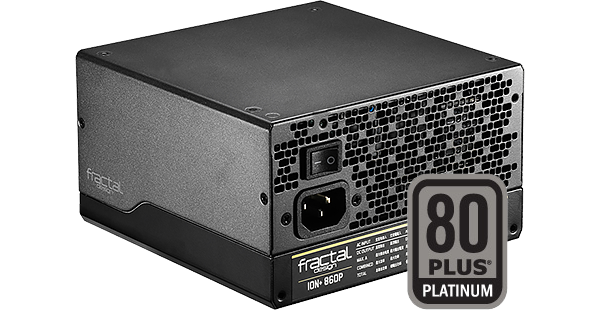

ION+ Platinum 860P - 860 Watt Power Supply from Fractal Design

ION+ 860W PSU

UTILIZE FULLY MODULAR GREATNESS The ION+ Platinum is a high-performance, fully modular PSU that offers near-silent operation and enhanced cable flexibility. Enjoy superior output quality and an incredible 80 PLUS® Platinum Efficiency. You can select a semi-passive Zero RPM mode which maintains pure silence under light loads, with the custom-tailored 140mm fan inside the PSU utilizing special FDB bearings to barely make a noise even under heavy use. Enjoy the convenience of the revolutionary UltraFlex cable with its ultra-high strand count wire and special insulation bends which twist effortlessly to make cable-routing and installation easier than ever. The ION+ PSU uses premium Japanese 105°C capacitors to provide enhanced reliability, and only takes up 150mm of depth so you can easily fit this PSU into compact spaces with extra room for cables. If that isn't enough, the ION+ offers a wealth of protective features and an extensive ten-year warranty to give you support for years to come.

Enjoy Completely Silent PSU Operation

ion silent fan

CUSTOM TAILORED FRACTAL FAN The ION+ uses a 140mm Dynamic Series fan which works to minimize noise whilst maximizing lifespan with true FDB bearings. You can select a Zero RPM mode which allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling.

Keep your Power Supply Protected for Longer

protective japanese capacitors

EXTENSIVE PROTECTIVE FEATURES The ION+ PSU uses premium Japanese 105°C capacitors to give you incredible durability and reliability. It also utilizes a wealth of protective features such as Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection. All these extensive safeguarding features work to keep your PSU working reliably for longer.

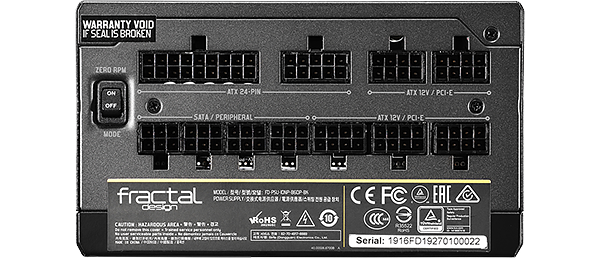

ION+ 860P Connection Ports

ION ports

versatile connectivity options 1 x 4+4-pin ATX 12V | 4 x 4-pin Molex | 6 x 6+2-pin PCIe | 1 x 8-pin CPU +12V (EPS) | 10 x SATA

Incredible Efficiency Guaranteed

80 plus platinum efficiency

80 PLUS PLATINUM & WARRANTY The ION+ PSU has an 80 PLUS® Platinum Efficiency rating which means your PSU supplies optimized electrical performance and reduced heat generation. Fractal Design also offers a generous ten-year warranty with your ION+ PSU so you'll be supported for years to come.

Explore the Features of the ION+ Power Supply

ION VIDEO
Specifications
Size ATX
Edition Ion+ 860P
Wattage 860 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 71.6 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 71.6 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin ATX 12V
  • 4 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 10 x SATA
Dimensions 150 x 86 x 150 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN97969
Model Number FD-PSU-IONP-860P-BK
GTIN 7340172701927
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
