850W EDGE850 80 PLUS Platinum Fully Modular PSU from Lian-Li
A New Platform for PowerThe EDGE series PSU steps up conventional power supply design with its distinctive L-shape, crafted to fit perfectly into dual-chamber chassis. This design isn’t just about looks—it's a functional approach to cable management, offering a more natural fit in systems that prioritise clean layouts and airflow. Its elevated USB hub section is designed to connect seamlessly with Lian-Li's L-Connect, STRIMER, and UNI FAN hubs, enhancing its role within the modular ecosystem and contributing to a smooth, cohesive Lian-Li setup. It also meets ATX 3.0 and 3.1 standards, alongside PCIe 5.1 compliance, ensuring compatibility with the latest hardware requirements for modern performance setups.
850Watts
70.8Amps
ATX 3.1Form Factor
Seated on the Cutting 'Edge'

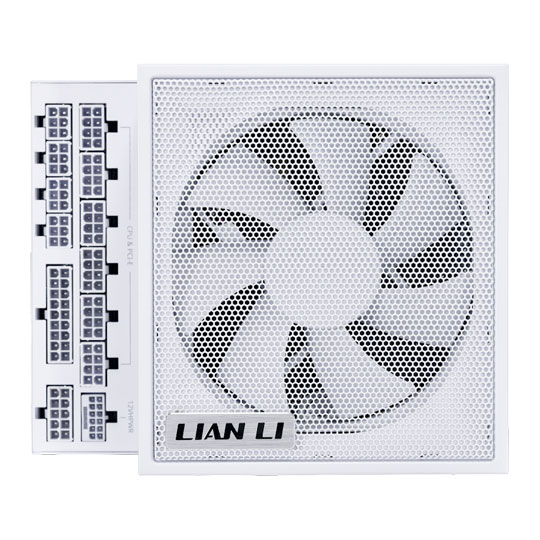

L-SHaped designEngineered specifically for dual-chamber chassis, the EDGE PSU’s L-shape design is ideal for vertical installation at the second chamber. This unique form factor reorients the connectors outward, allowing you to tame cables much easier. Additionally, the Internal 9-Pin USB ports make it easier to link the PSU with Lian-Li's other features, such as L-Connect, UNI-FAN and STRIMER, giving builders better control of their Lian-Li setup.
The Heart of Your Lian-Li Ecosystem

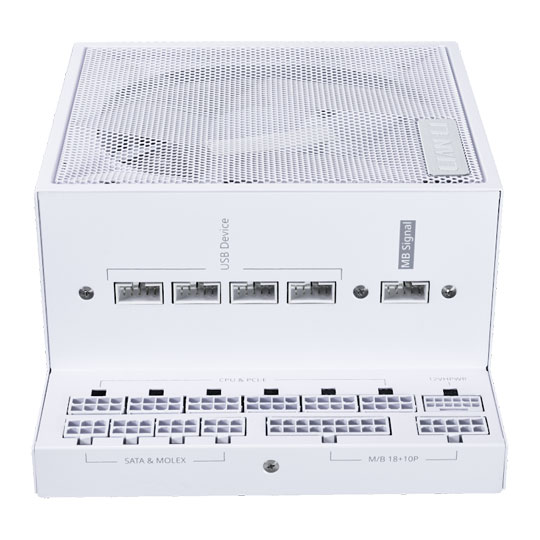

9-PIN USB CONNECTORSThe Edge Series integrates 4 × 9-pin internal USB expansion ports, acting as a 1-to-7 USB hub, simplifying connections for devices like UNI fans, Strimer Plus, and RGB controllers. Each port provides a steady 500mA current, ensuring connected devices stay powered even when the PC is off. Ports #1, #2, #3, and #4 provide one and two USB signals respectively, with ports #2, #3, and #4 supporting up to 7 devices when used with a 1-to-2 splitter cable. For optimal performance, it's advised to connect the TL controller to ports #2-4, while other controllers can connect to any port.
For detailed guide to setting up Lian-Li TL and LCD fans using these ports, please click here.
1x Internal 9-Pin USB to Internal 9-Pin USB
1x Internal 9-Pin USB to USB 2.0 Type-A
Extensive Efficiency
Platinum PedestalAchieving the 80 PLUS, Cybenetics and PPLP Platinum certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
80PLUS PLATINUMThis certification guarantees that a PSU operates with at least 80% energy efficiency at 20%, 50%, and 100% loads, helping reduce wasted energy and lower electricity bills.
Cybenetics PlatinumCybenetics rates PSUs based on their efficiency, noise output, and build quality, offering a more comprehensive understanding of a PSU’s real-world performance.
PPLP PlatinumPLP certification ensures that a PSU can handle varying loads without voltage drops or instability, guaranteeing reliable power delivery under different usage conditions.
Dual Colour PCIe 5.1 Connector
1Dual-colour shell ensures a firm, clear connection for easy installation.
2Gold plating added to prevent any risk of short circuits, keeping things safe.
3Soldered wire and terminal connections ensure stable current flow.
4Increased copper thickness (0.25mm) lowers contact resistance for better efficiency.
custom designed 12vhpwrLIAN LI’s in-house R&D developed 12V-2×6 alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance. The terminal maintain a contact resistance below 1.5mΩ after 50 plug/pull cycles, compared to ordinary terminals at 2-3mΩ, enhancing the connector’s performance and long-term reliability.
Cool & Controlled
120mm PWM FanDesigned for performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature works in tandem with the 120mm PWM fan, which operates with minimal noise, cooling the system quietly even at high loads. This fan also features 0dB (fanless) mode, remaning at Zero RPM during low loads for quiet operation.
Industrial Grade Components
GERMAN EPCOS CAPACITORSThe EDGE PSU integrates the German EPCOS capacitors, offering compact, robust performance with higher tolerance to temperature and harsh environments. Featuring LLC topology and Active PFC, the EDGE PSU enhances efficiency, reduces heat generation, and ensures cleaner, more reliable power delivery.
SATA Synergy
Comprehensive sata solutionsThe EDGE PSU series doesn't just stick to the standard when it comes to SATA connectivity—it expands on it by including Y-type and close-type SATA connectors alongside the usual options. The Y-type connectors are perfect for users looking to power multiple devices from a single cable, cutting down on clutter while keeping the build tidy. Meanwhile, the close-type connectors cater to compact setups where storage drives are positioned closely together, minimising unnecessary cable length and improving airflow.
CLOSE-TYPE SATAA 300mm long cable with 15mm spacing between power connectors, making it easy to attach devices while maintaining a tidy setup.
Y-TYPE SATAPerfect for connecting drives and controllers located in different areas, providing flexibility and reducing cable clutter.
Always Reliable
Where structure meets promiseEngineered with premium materials, the EDGE series delivers not just power, but unwavering reliability built for the long haul. Designed to endure, this PSU redefines expectations with a blend of performance and durability. Backed by a comprehensive 10-year warranty, it’s more than a power supply—it’s a promise of quality you can depend on, year after year.
