Corsair AX850 850 Watt Fully Modular Titanium ATX PSU/Power Supply

850W Corsair AX Series AX850, Full Modular, 80PLUS Titanium, SLI/CrossFire, Single Rail, 70A, 135mm Fan, ATX PSU

Thumbnail 1 : Corsair AX850 850 Watt Fully Modular Titanium ATX PSU/Power Supply Thumbnail 2 : Corsair AX850 850 Watt Fully Modular Titanium ATX PSU/Power Supply Thumbnail 3 : Corsair AX850 850 Watt Fully Modular Titanium ATX PSU/Power Supply Thumbnail 4 : Corsair AX850 850 Watt Fully Modular Titanium ATX PSU/Power Supply Corsair AX850 850 Watt Fully Modular Titanium ATX PSU/Power Supply : video thumbnail 1
Scan code: LN94345 Manufacturer code: CP-9020151-UK
£209.99
From £8.75 / month (APR 0%)
Monthly Payment: £35.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £209.99
Monthly Payment: £17.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £209.99
Monthly Payment: £11.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £209.99
Monthly Payment: £8.75
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £209.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 12th Dec To 16th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

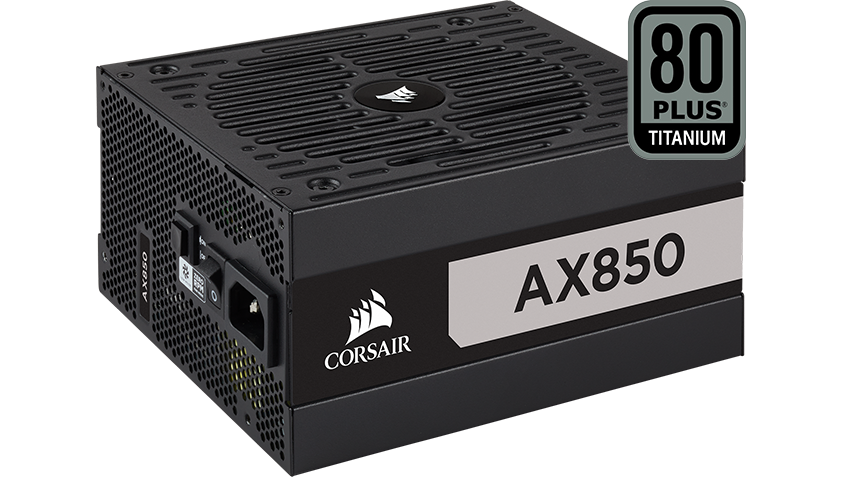

Corsair AX850 - 80 PLUS Titanium Fully Modular ATX PSU

AM 850 Titaium

80 PLUS TITANIUM CERTIFIED PSU AX Series fully modular power supplies deliver 80 PLUS Titanium efficient power and ultra-low-noise operation to complete your most ambitious builds. The highest quality internal components and all-Japanese 105°C rated capacitors provide the tightest voltage regulation and lowest ripple noise, delivering only the highest quality power to your PC. A 135mm fluid-dynamic bearing fan with Zero RPM Mode only turns on when needed, ensuring virtually silent operation at low and medium loads. Fully modular flattened cables make building or upgrading your PC easy as you only need to install the cables your systems requires. With the strength of 80 PLUS Titanium efficiency, and the subtlety of near-silent operation, the CORSAIR AX Series is ready to power the world’s best PCs for years to come.

This PSU is also available in the 1000W version :

AX 1000W

Fully Modular Connectivity

AX 850connections

KEEP YOUR BUILD LOOKING CLEAN The easy to install, fully modular setup on the Corsair AX850 allows you to combine the low-profile cables provided for a great-looking build. Only connect the cables your system needs, making clean and tidy builds easier.

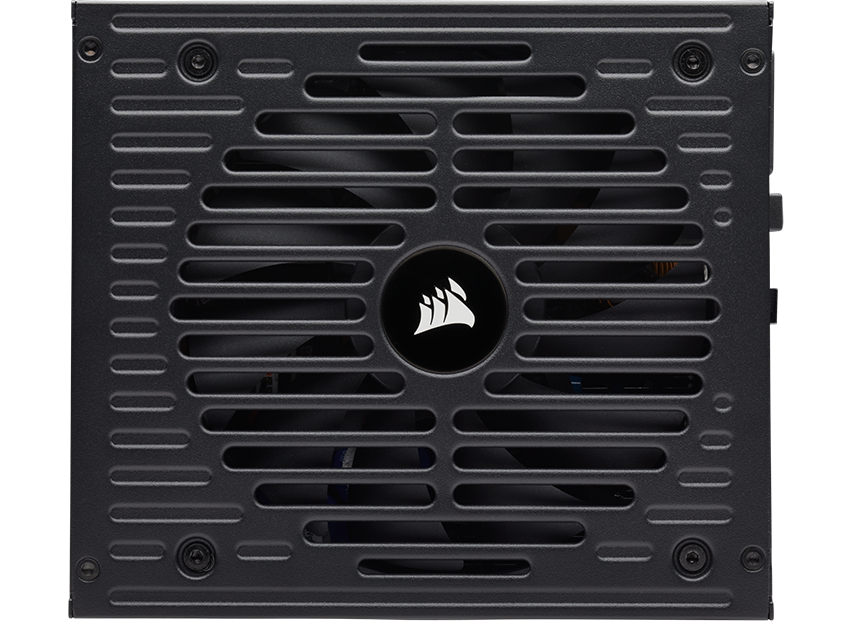

Powerful Cooling with low-noise Operation

AX 850 135mm FDB Fan

135mm Cooling Fan 135mm Cooling fan with true FDB bearing delivers low-noise operation even at demanding loads whilst having a longer life. The cooling fan also switches off entirely for near-silent operation. Superior voltage regulation and minimal ripple noise ensures the highest quality power for your PC.

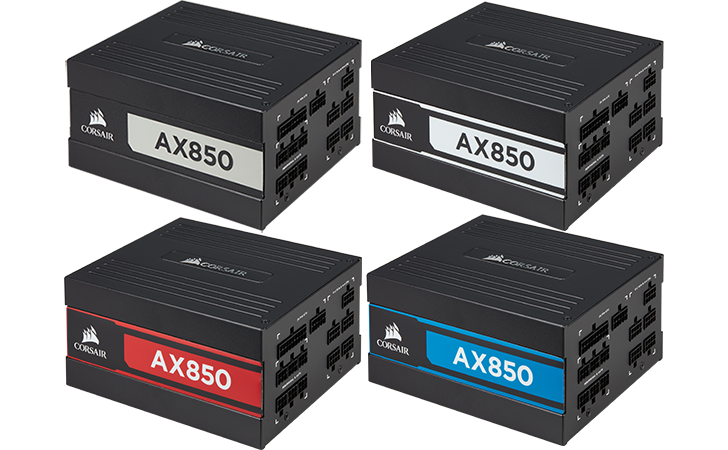

Three-Colour Magnetic Side Labels

AX 850 interchangable magnetic strip

match up your components Customize your PSU to match the rest your system with three included magnetic side labels in red, blue or white.

Corsair AX850 Key Features

80PLUS - Gold

80 PLUS TITANIUM CertifiedTITANIUM certification ensures the highest level of efficiency and performance.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

lownoise

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

Corsair 10 year warranty

Ten Year WarrantyYour guarantee of reliable operation that will last across several system builds.

Specifications
Size ATX
Edition AX Series AX850
Wattage 850 W
80 PLUS Certification 80 PLUS Titanium
Max. Efficiency (at 230Vac) 95 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 70 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 70 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin ATX 12V
  • 1 x 4-pin FDD Adapter
  • 6 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 16 x SATA
Dimensions 150 x 86 x 170 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN94345
Model Number CP-9020151-UK
GTIN 843591077811
