Cooler Master V-Series 850 Watt Fully Modular 80+ Platinum PSU/Power Supply

850W Cooler Master V-Series V850 Platinum, Full Modular, 80PLUS Platinum, Single/Multi Rail, 70.4A, 135mm Fan, ATX PSU

Thumbnail 1 : Cooler Master V-Series 850 Watt Fully Modular 80+ Platinum PSU/Power Supply Thumbnail 2 : Cooler Master V-Series 850 Watt Fully Modular 80+ Platinum PSU/Power Supply Thumbnail 3 : Cooler Master V-Series 850 Watt Fully Modular 80+ Platinum PSU/Power Supply Thumbnail 4 : Cooler Master V-Series 850 Watt Fully Modular 80+ Platinum PSU/Power Supply Cooler Master V-Series 850 Watt Fully Modular 80+ Platinum PSU/Power Supply : video thumbnail 1
Scan code: LN96650 Manufacturer code: MPZ-8501-AFBAPV-UK
£219.98
From £9.17 / month (APR 0%)
Monthly Payment: £36.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £219.98
Monthly Payment: £18.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £219.98
Monthly Payment: £12.23
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £219.98
Monthly Payment: £9.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £219.98
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 29th May 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Power Up

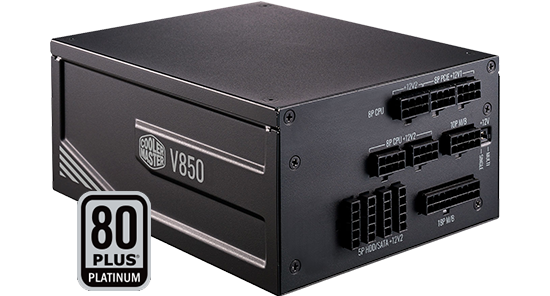

The V Platinum series promises high-end performance for every type of PC user. As the vanguard of our current power supply models, we have brought together innovation, experimentation, and user feedback to develop our latest high wattage, platinum efficiency power solution. These power supply units offer an 80 PLUS Platinum efficiency certification, full-modular cabling, 100% Japanese capacitors, an operating temperature of 50°C, and a single/multi rail switch. Backed by a 10 year warranty, these PSUs won't disappoint even the most seasoned, high-end PC builders. For highly efficient, quiet operation, you can't go wrong with the V Platinum.

80 PLUS Platinum Certified
The efficiency of your power supply unit is important because it directly affects your system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The V Platinum has an 80 PLUS Platinum efficiency rating, meaning it has a guaranteed typical efficiency of 92%.

Performance Driven Topology
The V Platinum is a professional grade PSU made for the everyday user. It's more than just the 80 PLUS Platinum efficiency rating. It's the performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The full-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers stable voltage outputs for safer, more reliable performance and higher efficiency. Tailor the unit's performance to your needs with a hardware based single/multi-rail switch.

Thermal Regulation Mode
Thermal Regulation Mode keeps the V Platinum quiet and stable by maintaining a constant fan speed up to 60% of the maximum load. Once this threshold is breached, the system will increase the fan's rotation accordingly based on the thermal requirements of the current load. This system increases the lifespan of the power supply unit by keeping the fan under minimal stress without risking the safety or performance of the PSU or the system as a whole.

Single/Multi-Rail Switch
The built in rail switch allows you to alter the PSU from single to multiple rails in order to tailor the unit's performance to your needs. Use multi-rail mode for normal use and single rail mode for specialized needs such as overclocking. Change modes with the flick of a switch.

Improved PCI-e Cable Conductivity
The V Platinum series comes with 16AWG PCI-e cables. These are thicker than current industry standard 18AWG cables, meaning less heat resistance during use. The reduction in heat resistance improves efficiency and stability so your components can get the most out of that 80 PLUS Platinum rating. As an added bonus, the lower resistance means less ambient heat in your case being expelled from your cables, making your entire system safer and cooler than the same setup with standard issue cables

Double Ball Fan Bearing
In order to meet the highest performance demands, the V Platinum's 135mm fan uses a double ball bearing. Though rarely used in power supply units, this special fan bearing can operate safely and reliably in temperatures up to 70°C. This considerably high safe maximum temperature allows users to safely conduct stressful operations such as mining and overclocking without having to worry about their PSU fan failing. Features • 80 PLUS Platinum Certified.
• Full-Bridge LLC Resonant Converter and DC-DC Technology.
• Thermal Regulation Mode (TRM).
• Single/Multi-Rail Switch.
• Improved PCI-e Cable Conductivity.
• 10 Year Warranty.
Specifications
Size ATX
Edition V-Series Platinum
Wattage 850 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac) 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single/Multi Rail
Rail 1 +12V 35.2 A
Rail 2 +12V 35.2 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 70.4 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24-pin

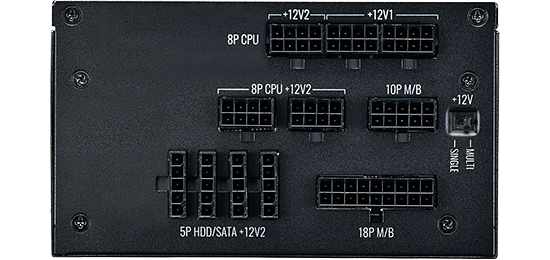

Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 4 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 12 x SATA
Dimensions 150 x 86 x 201.2 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN96650
Model Number MPZ-8501-AFBAPV-UK
GTIN 4719512071670
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
