Samsung 85" OH85N-D Outdoor High Bright UHD SMART Signage Panel

85" Samsung OH85N-D Outdoor High Bright, IP56, UHD, SMART Signage Panel, 3300nit, Embedded Media Player, 24/7 3yr wty

Free Upgrade to XDP Delivery on oversized items - (N.B. 3pm Cut-Off)
Thumbnail 1 : Samsung 85" OH85N-D Outdoor High Bright UHD SMART Signage Panel Thumbnail 2 : Samsung 85" OH85N-D Outdoor High Bright UHD SMART Signage Panel Thumbnail 3 : Samsung 85" OH85N-D Outdoor High Bright UHD SMART Signage Panel Thumbnail 4 : Samsung 85" OH85N-D Outdoor High Bright UHD SMART Signage Panel
Scan code: LN98938 Manufacturer code: LH85OHNDKGB/EN
Call for price
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

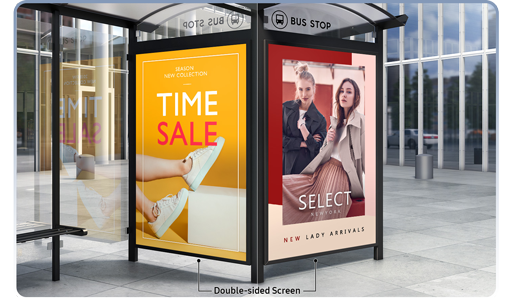

Product Overview A double-sided screen with slim depth
The OHN-D series has two screens to highlight brilliant content and graphics on each side. With 3,000nit brightness on both sides of the display, users can double their marketing in one location with vibrant content. Its slim design is ideal for a bus shelter or street billboards.

Unsurpassable visibility day and night
The OHN-D series allows for exceptional, consistent content delivery with 3,000nit brightness and 24/7 performance. With a built-in dimming sensor, the display automatically adjusts the brightness based on the external lighting environment, saving display operating expenses and power consumption.

Easy-to-use management software
The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the displays overall performance, allows for painless content management and ensures seamless transition and playback.

Resistant to outdoor elements
The OHN-D series is verified to perform in any outdoor setting. IP56-rated protection* ensures the OHN series will that withstand physical impact as well as dust**, humidity or other outdoor elements that could affect the display.
* Additional glass needed for OHN-D kit-type
**Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment.

Easy setup and maintenance
Users can easily access the inside of the OHN-D series for repair or maintenance. Simply lift the set for quick entrance to the display’s inner components for any necessary updates
Features • 85” Diagonal Screen
• Type: 60Hz D-LED Local Dim. BLU
• 3840 x 2160 (4K UHD)
• Pixel Pitch(mm): 0.488mm(H) X 0.488mm(V)
• Brightness: 3,300
• 3000:1 Contrast Ratio
• Viewing Angle(H/V): 178/178
• Display Colors: 8 bit - 16.7M
• Input Connectivity: 4x HDMI 2.0, 2x Display Port 1.2, 2x USB2.0, RS232C, RJ45, Stereo Mini Jack
• Dimensions (W x H x D): 1,193 x 2,012 x 228 mm
• Weight: 255kg
Specifications
Screen Size 85"
Edition OH85N-D
Panel Type D-LED BLU
Panel Coating
Panel Finish
Touchsceen
Backlight
Pitch Size 0.488mm(H) X 0.488mm(V)
Curvature
Adaptive Frame-rate Technology N/A
HDCP Yes
Connectors
  • 2 x DisplayPort 1.2
  • 4 x HDMI 2.0
  • 2 x USB 2.0 In
Position Adjustment
Resolution 3840x2160 (Ultra HD)
Aspect Ratio
Refresh Rate 60Hz
Response Time 8 ms
Brightness 3300 cd/m²
Viewing Angle 178/178 (°H/°V)
Contrast Ratio/DCR 3000:1
Color Gamut 72%
Color Bit Depth 8-Bit (16.7M Colours)
HDR Support No
Supported HDR Standards
Speakers No
Speaker Configuration
Web Camera No
Power Usage (Switched on) 3,600 (1,800x2) W
VESA
3D Support No
Anti-Theft Features
Included Accessories
  • 1 x Quick Start Guide
  • 1 x Warranty Card
Monitor Colour
Dimensions (with stand)
Dimensions (without stand) 1,193 x 2,012 x 228 (WxHxD)
Weight (with Stand) 255 kg
Note
Additional Information
Scan Code LN98938
Model Number LH85OHNDKGB/EN
GTIN 8801643466657
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
