Scan code: LN83139 Manufacturer code: SST-LSB01

SilverStone 8 Port RGB LED Hub, 2 * 300mm 5050 RGB LED strip , 2 * 300mm male to female & RGB 4

8 Port SilverStone LSB01 - RGB LED Hub, 2 * 300mm 5050 RGB LED strip , 2 * 300mm male to female & RGB 4pin extend

Thumbnail 1 : SilverStone 8 Port RGB LED Hub, 2 * 300mm 5050 RGB LED strip , 2 * 300mm male to female & RGB 4 Thumbnail 2 : SilverStone 8 Port RGB LED Hub, 2 * 300mm 5050 RGB LED strip , 2 * 300mm male to female & RGB 4 Thumbnail 3 : SilverStone 8 Port RGB LED Hub, 2 * 300mm 5050 RGB LED strip , 2 * 300mm male to female & RGB 4 Thumbnail 4 : SilverStone 8 Port RGB LED Hub, 2 * 300mm 5050 RGB LED strip , 2 * 300mm male to female & RGB 4
Scan code: LN83139 Manufacturer code: SST-LSB01
£28.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Dec 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

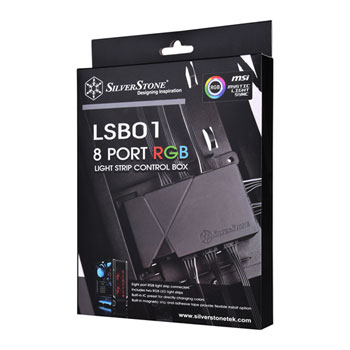

Product Overview LSB01 is a SilverStone designed RGB light strip control box with 8 port signal control.

For use in conjunction with SilverStone LS02, it easily expands the amount of lighting that one can control and solves the problem of insufficient RGB 4pin connectors.

It can control light via motherboard RGB software or other RGB 4pin host.

Apart from this, for those enthusiast‘s motherboard that lacks RGB 4pin or without another signal source, the LSB01 can still offer direct control via case switch with an included cable adapter. Features • Eight port RGB light strip connectors
• Includes two RGB LED light strips
• Built-in IC preset for directly changing colors
• Built-in magnetic strip and adhesive tape provide flexible install option

Specifications
Model No.: SST-LSB01
Material: Plastic outer shell
Included Parts:
- SST-LS02 RGB LED strip x 2
- Extend Y cable x 2****
- RGB 4pin signal cable x 1
- 4pin peripheral cable x 1
Signal input: *Via RGB 4pin host (+12V, G, R, B**) or built-in IC control
Signal output: SilverStone custom RGB 4pin x 8***
Output limitation (each port): SST-LS02 (12V, 0.12A) x 5 or other identically spec’d RGB light strips
Net weight: 30g
Dimension: 46mm (W) x 19mm (H) x 85mm (D) / 1.81" (W) x 0.75" (H) x 3.35" (D)
Note:
* Be sure to turn off power before switching signal input switch or install / remove LED strip
** Please check the signal source’s pin header that you want to connect is the same as LSB01’s pin definition.
*** Control box’s connectors are proprietary SilverStone custom connectors and are not compatible with other RGB strip’s 4pin connectors.
**** One to two Y cable can support SilverStone custom connectors and others RGB 4pin connectors.
Specifications
Input Voltage
Current
Input Current
Power Consumption
Luminous flux
Color Temperature
Colour Rendering Index (CRI)
Fitting
Life Span
Incandescent Equivalent
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
Questions & Answers

Can I use this to sync non Aura compatible fans

Can I plug say 8 Corsair HD120 RGB fans or other non Aura compatible fans in to this and then control and sync them all together through the Aura software so the fans, motherboard, graphics card and other Aura compatible products are all synchronized together?
Asked by: Batch
Hello, These should be fully compatible with Asus' Aura software however there will be limitations with the amount of control you may have over various components and we cannot guarantee the compatibility or customisation levels of particular items. Regards,
Answered by: JackB
Date published: 2017-10-10
