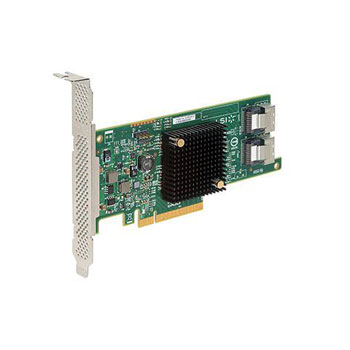

LSI LSI00301 8 Port SAS+SATA PCI Express Host Bus Adapter

8 Port LSI SAS 9207-8i SGL Internal 6Gb/s SATA+SAS, PCIe 3.0 HBA

LSI
Scan code: LN46211 Manufacturer code: LSI00301 Request call
£251.99
In stock
Pay on Scan Finance with a 10% deposit from just £6.29 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 27th Feb 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview The LSI® SAS 9207-8i PCI Express® (PCIe®)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), referred to as the LSI SAS 9207-8i HBA, provides high-performance internal storage connectivity for servers and workstations. The LSI SAS 9207-8i HBA provides eight lanes of 6Gb/s SAS storage connectivity and is matched with eight lanes of PCIe 3.0 8Gb/s host connectivity. The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting bracket that creates a universal fit for any server. The LSI SAS 9207-8i HBA is based on the Fusion-MPT™ architected LSI SAS 2308 controller that integrates the latest enhancements in PCIe 3.0 technology and 6Gb/s SAS technology. Features • 8 internal 6Gb/s SAS+SATA ports.
• 8 lanes, PCI Express 3.0.
• Low profile form factor design.
• Two x4 internal mini-SAS connectors (SFF8087).
• Supports up to 256 SAS or SATA end devices.
• Supports SSDs, HDDs and tape drives.
Specifications
Specifications
Ports Total 8 Port
Ports Internal 8 Int Ports
Ports External
Connectors 2 x SFF-8087
Interface PCIe 3.0 x8
JBOD No
RAID Support N/A
Low Profile Compatible Yes
Cables Inc.
Cache Memory
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
SCAN
Telephone:
0871 472 4747
Customers also bought
Reviews
Questions & Answers

Does this part number include cables to connect to the drives or is it just the controller card?

If it is just the card, are there recommendations for cables to connect to SATA drives?
Asked by: aberscotty
Hello, This is just the expansion card, if you need assistance with cables then you'd need to contact our sales team. Regards,
Answered by: LizN
Date published: 2016-06-24

Gigabyte Motherboard

Can you advise preferably a Gigabyte Motherboard that will cater for 3 of these which i would also need to get, I would prefer to use an 1150 Processor - Thanks Mark
Asked by: MRB1964
