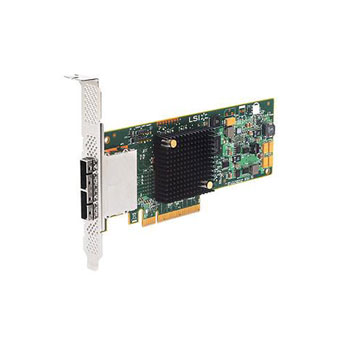

LSI 8-Port Ext 6Gb/s SATA+SAS PCIe3.0 Host Bus Adapter

8 Port LSI SAS 9207-8e SGL 6Gb/s SATA+SAS, PCIe 3.0 HBA

Scan code: LN46210 Manufacturer code: LSI00300 Request call
Pay on Scan Finance with a 10% deposit from just £5.99 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 23rd Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The LSI SAS 9207-8e host bus adapter provides high performance for 1U/2U mid to high-end servers that connect to large scale storage enclosures. The LSI SAS 9207-8e provides 8 lanes of 6Gb/s SAS matched with 8 lanes of PCI Express 3.0, 8Gb/s performance. Performance is based on the LSISAS2308 6Gb/s SAS IO Controller that highly integrates the latest enhancements in PCI Express and SAS technology. Features • 8 external 6Gb/s SAS+SATA ports.
• 8 lanes, PCI Express 3.0.
• Low profile form factor design.
• Two, x4 external mini-SAS connectors (SFF8088).
• Supports up to 1024 SAS or SATA end devices.
• Supports SSDs, HDDs and tape drives.
Ports Total 8 Port
Ports Internal
Ports External 8 Ext Ports
Connectors 2 x SFF-8088
Interface PCIe 3.0 x8
RAID Support N/A
Low Profile Compatible Yes
Cables Inc.
Cache Memory
