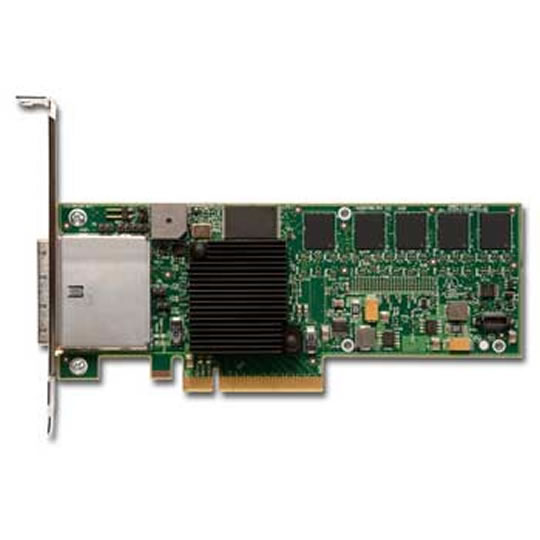

LSI MegaRAID SAS 8880EM2

8 Port LSI MegaRAID SAS 8880EM2 - storage controller (RAID) - SATA-300 / SAS - PCI Express

LSI
Scan code: LN28955 Manufacturer code: MRSAS8880EM2-SGL Request call
£371.99
In stock
Pay on Scan Finance with a 10% deposit from just £9.29 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 9th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Today's newest external enclosure designs are based on architectures that support both SATA and SAS hard drives. The MegaRAID SAS 8880EM2, with eight external SAS/SATA ports, is the ideal solution for configuring these external enclosures with either high-performance SAS drives or high-capacity SATA drives. This adapter features an LSISAS1078 storage processor, DDRII memory, and a x8 PCI Express host interface to provide the best performance for external applications. Since system builders can use the MegaRAID SAS 8880EM2 to support one enclosure design that can be populated with either SAS or SATA hard drives. Features Features

• Eight external SAS/SATA ports
• Two Mini-SAS SFF-8088 x4 connectors
• 3Gb/s throughput per port
• LSISAS1078 RAID on Chip (ROC)
• 500MHz power-PC
• Hardware RAID 5 & 6 parity engines
• Low-profile MD2 form factor (6.6” X 2.536”)
• x8 PCI Express host interface
• 512MB DDRII Cache (667MHz)
• Optional battery backup unit (direct attach)
• Connect up to 240 SAS and/or SATA devices
• RAID levels 0, 1, 5 and 6
• RAID spans 10, 50 and 60
• Auto-resume on rebuild
• Auto-resume on reconstruction
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Comprehensive RAID management suite
• Global and dedicated hot spare with revertible hot spare support
• Automatic rebuild
• Enclosure affinity
• Emergency SATA hot spare for SAS arrays
• Single controller multipathing (failover)
• I/O load balancing
• Support for extended RAID 1 volumes of up to 240 devices

Benefits

• Ideal for external subsystems using large numbers of SAS or SATA drives
• LSISAS1078 ROC, x8 PCI Express host interface and 667MHz DDRII cache enhance performance of storage for low-cost server and nearline applications.
• True MD2 form factor perfect fit for 1U and 2U servers and space-limited storage environments
• Proven MegaRAID protection for SATA and SAS drives using RAID 0, 1, 5, 6, 10, 50 or 60
• Battery backup and advanced error detection and correction capabilities deliver outstanding RAID availability
• Common suite of management utilities for all MegaRAID SAS/SATA adapters
Specifications
Specifications
Ports Total
Ports Internal
Ports External
Connectors 2 x SFF-8088
Interface PCIe x8
JBOD No
RAID Support
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
Low Profile Compatible No
Cables Inc.
Cache Memory 512MB
