Highpoint RocketRAID 4322 (RR4322) 8 channel External PCI-e x8 to SAS/SATA II IOP348 RAID controller
End Of Life
Highpoint RocketRAID 4322 (RR4322) 8 channel External PCI-e x8 to SAS/SATA II IOP348 RAID controller
Scan code: LN26139 Manufacturer code: RR4322
End Of Life

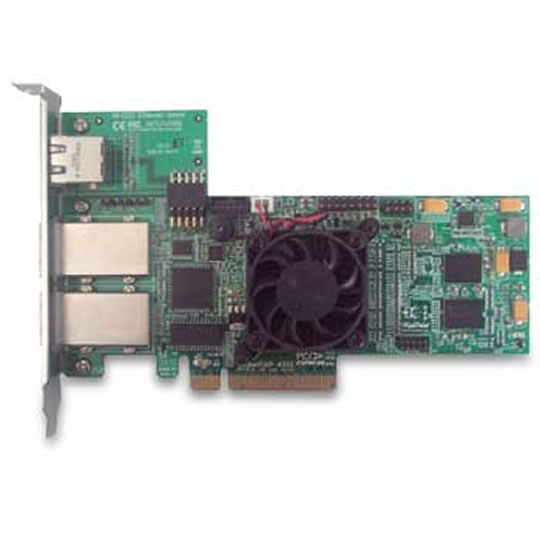

Highpoint RocketRAID 4322 (RR4322) 8 channel External PCI-e x8 to SAS/SATA II IOP348 RAID controller : image 1
  • Thumbnail 1 : Highpoint RocketRAID 4322 (RR4322) 8 channel External PCI-e x8 to SAS/SATA II IOP348 RAID controller
End Of Life

Highpoint RocketRAID 4322 (RR4322) 8 channel External PCI-e x8 to SAS/SATA II IOP348 RAID controller

8 Port Highpoint RocketRAID 4322 (RR4322) External PCI-e x8 to SAS/SATA II IOP348 RAID controller
MORE INFO
MORE INFO

Scan code: LN26139 Manufacturer code: RR4322
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

Product Overview The HighPoint RocketRAID 4322 is the world’s fastest external SAS RAID controller utilizing Intel IOP348
1.2GHz processor. The RocketRAID 4322 is the latest product in storage technology, leveraging the storage
performance in SAS and SATA II supporting the fastest available throughput while supporting enterprise level
features such as Native Command Queuing (NCQ) Features • TerabyteStream™ for Blazing Performance.
• Intel IOP 81348(1.2GHz).
• PCI-E x8 (Upward compatible with x16).
• 512 MB on-board DDR533 SDRAM with ECC protection.
• 2 external mini-SAS.
• 128 max hard drives via SAS expanders.
• NVRAM for write journaling.
• RoHS compliant.
• Support RAID 0, 1, 3, 5, 6, 10, 50 and JBOD.
• Multiple RAID support.
• Multiple Logical Drive Support.
• Write through and write back cache.
• Online array roaming.
