Scan code: LN41280 Manufacturer code: SW80010-D

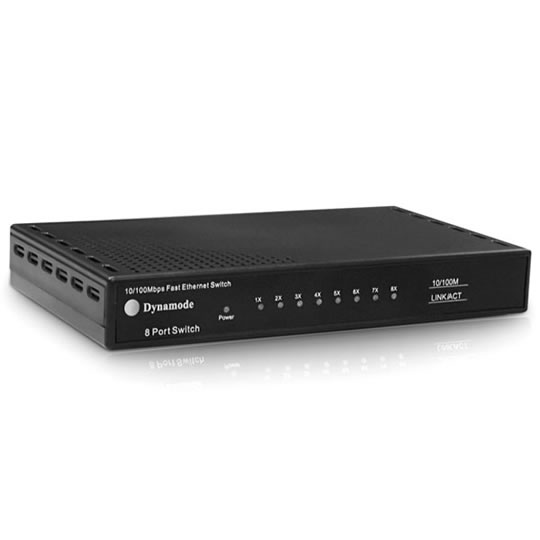

Dynamode 8 port 10/100 Destop Switch

8 Port Dynamode 10/100 Ethernet Switch Desktop

Scan code: LN41280 Manufacturer code: SW80010-D
£7.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview • Built-in 8 Port Fast Ethernet
• Supports 200Mbps in Full Duplex Mode
• Ideal for Fast Home Networks, Gaming and Video
• Ideal for SME Businesses looking higher port densities
• Sylish and compact design with low Power Consumption
• Plug n' Play for all Computers, Servers, Routers, Media Centres, Game Consoles and more

Data Sheet
Features Standards and Protocols
• IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP

Basic Function
• Wire-speed Performance
• MAC Address Auto-Learning and Auto-aging
• IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

MAC Address Table
• 1k

Forwarding Rate
• 10BASE-T: 14880pps/port
• 100BASE-TX: 148800pps/port

Transmission Method
• Store-and-Forward

Ports
• 8x 10/100Mbps Auto-Negotiation
• RJ45 ports (Auto MDI/MDIX)

Network Media
• 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100ù STP (maximum 100m)
• 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100ù STP (maximum 100m)

LED Indicators
• Power, Link/Act (1, 2, 3, 4, 5)

Environment
• Operating Temperature: 0°C~40°C (32?~104?)
• Storage Temperature : -40°C~70°C (-40?~158?)
• Relative Humidity :10% ~ 90%, non condensation
• Storage Humidity : 5%~95% non-condensing

Power
• External Power Adapter
Specifications
Edition
Form Factor
Total Network Ports 8 x Fast Ethernet 10/100
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material
Includes
Dimensions (WxHxD)
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Customers also bought
Reviews
8 Port Dynamode 10/100 Ethernet Switch Desktop is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Great for a budget I can't really complain about this item. It does what it says on the tin. Good news, I can't see a noticeable drop in speed either. Possible winner here!
Date published: 2014-03-17
