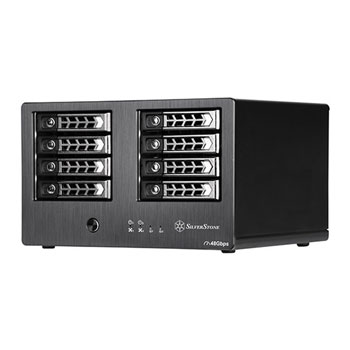

ilverStone TS821S 8 Bay Mini-SAS Storage 2.5" HDD/SSD Hotswap

Product Overview Supports Mini-SAS SFF-8088 maximum 48 Gbps transfer speed
Supports up to eight 2.5" SAS / SATA 6 Gbit/s drives
Individual metal key lock for each drive for extra security
Independent drive status LED
Built-in cooling fan for excellent heat dissipation
Compatible with all 2.5" drives up to 15mm thickness
Fully supports SATA Hot-Swap function
Complete retail pack includes Mini-SAS SFF-8088 to Mini-SAS SFF-8088 cable, Mini-SAS SFF-8087 to SATA 7 pin cable, power adapter card and Mini-SAS adapter

SilverStone Technology has developed a new external storage device, the TS821S. It is a 8 bay storage tower with Mini-SAS interface that supports eight 2.5" HDD / SSD and hot-swap function. For security, each drive tray also has metal key lock. Built-in cooling fan behind the chassis ensures drive and run cool for extended life. Meanwhile, in order to allow common users can also enjoy high-speed transmission experience with Mini-SAS, SilverStone provide complete cables and adapters. Includes Mini-SAS SFF-8088 to Mini-SAS SFF-8088 cable, Mini-SAS SFF-8087 to SATA 7 pin cable, power adapter card and Mini-SAS adapter, the integrated package providing consumers with superior external storage Features Model No.
SST-TS821S
Color Black
Material Steel
Drive support 8 x 2.5" SAS / SATA HDD or SSD
Transfer rate Up to 6 Gbit/s (dependent on drive speed)
Host interface Mini-SAS SFF-8088 26 pin connector x 2
LED indicator Solid Green: Power On
Yellow: Fan Failed
Purple: Overheating
White: HDD Read / Write
Cooling fan 80mm PWM fan x 2
Environment Operating Temperature: 5°C ~ 35°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH
Net weight 2.63kg
Dimension 200mm (W) x 120mm (H) x 181mm (D)
7.87" (W) x 4.72" (H) x 7.13" (D)
Power adapter card
Model No. SST-ECP01
Input connector and current Peripheral 4-Pin female connector x 1 (12V/5A) or
SATA 15-Pin female connector x 1 (12V/5A)
Output connector and current DC jack connector x 1 (12V/5A)
USB Type-A female connector x 1 (5V/3A)
Intelligent Security Protection Over current protection
Cable length and specifications DC plug 1.2m cable with 18 AWG x 1 and OD 3.5mm DC dim 2.5mm to DC dim 2.1mm adapter
Net weight 35g
Dimension 120mm (W) x 21mm (H) x 53mm (D)
4.72" (W) x 0.83" (H) x 2.09" (D)
Internal Mini-SAS cable
Model No. SST-CPS03-RE
Color Black and blue
Connectors Mini-SAS SFF-8087 36pin (target) to SATA 7pin x 4 (host) with sideband cable
Length 500mm
SAS ports 4
External Mini-SAS cable
Model No. SST-CPS01
Color Black
Connectors Mini-SAS SFF-8088 26pin x 2
Length 1000mm
SAS ports 4
Mini-SAS adapter
Model No. SST-SA022
Adapter feature Internal Mini-SAS SFF-8087 x 2 to external Mini-SAS SFF-8088 x 2 adapter
Transfer bandwidth Up to 48Gbit/s
Connectors Internal : Mini-SAS SFF-8087 x 2 (to host terminal, e.g. motherboard or Mini-SAS expansion card)
External : Mini-SAS SFF-8088 x 2 (to external drive enclosure)
Mounting Standard expansion slot
