Scan code: LN120705 Manufacturer code: AD3-C60-704

Autel Smart Controller V2

7.9" Autel Smart Controller V2, QHD Display, 2000nit, 5800mAh Battery, HDMI, USB-C/USB-A, 128GB

Thumbnail 1 : Autel Smart Controller V2 Thumbnail 2 : Autel Smart Controller V2 Thumbnail 3 : Autel Smart Controller V2
Scan code: LN120705 Manufacturer code: AD3-C60-704
£1,438.99Item currently awaiting an ETA
Pre order
From £29.98 / month (APR 0%) or 0% for 4 months
Monthly Payment: £119.92
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,438.99
Total inc. interest: £1,438.99
Monthly Payment: £59.96
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,438.99
Total inc. interest: £1,438.99
Monthly Payment: £39.98
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,438.99
Total inc. interest: £1,438.99
Monthly Payment: £29.98
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,438.99
Total inc. interest: £1,438.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £35.94 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Autel - 'Smart Controller'

Autel Smart Controller V2

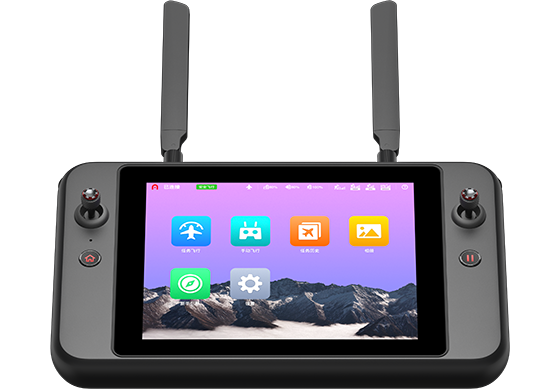

Supersharp, High Brightness DisplayThe Smart Controller’s built-in display is 4 times brighter than a conventional smartphone screen, and the 7.9-inch Ultra-HD touchscreen provides clear visibility under direct sunlight. Integrating true tone technology dynamically adjusts the white balance of the display, delivering the best viewing experience for any pilot in any lighting environment.

Portable, Efficient, and Easy to Use

Autel Smart Controller V2

2000nit Super-Bright ScreenAutel Smart Controller’s built-in display is twice as bright as the next leading competitor and 4 times brighter than a conventional smartphone screen. The 7.9-inch QHD display offers anti-glare coatings and provides clear visibility under direct sunlight.

Autel Smart Controller V2

Working Temperature-20~40°C Working Temperature Bigger heatsinks allow the Smart Controller to operate with a wider temperature range, giving the pilot more stable and reliable operation in extreme environments without overheating or freezing.

Autel Smart Controller V2

Extensive Battery LifeThe Smart Controller's 5800mAh large capacity lithium battery guarentees up to 4.5 hours of continuous use for long days out on the field. The 2-hour fast charge capability allows the pilot to get back into action as quickly as possible.

Autel Smart Controller V2

Customised OS SystemThe Smart Controller runs on a customised Android system that supports additional flexibility for third party system workflow by allowing users to download additional third-party apps.

Autel Smart Controller V2

128GB Internal MemoryAmple internal storage allows more than enough space for media and flight logs without the needs for external hardware.

Autel Smart Controller V2

8-Core ProcessorSamsung Exynos 8895 8-core processor allows the Smart Controller to play 4K/60FPS H.265.

13km Image Transmission Distance

Autel Smart Controller V2

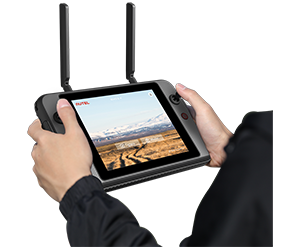

Long Distance HD Image TransmissionThe latest iteration of Autel's proprietary image transmission technology has allowed for HD 1080p video transmission as far as 8.1 miles (13 km) with low latency. Dual band support and automatic frequency changing ensures signal stability in high interference environments.

5800 mAh Li-ion Battery

Autel Smart Controller V2

4.5 Ultra Long Battery LifeThe 5800mAh lithium battery lasts up to 4.5 hours in continuous use and supports 2-hour fast charging. The Smart Controller is ready to meet your demands in aerial operation for those long days out in the field.

Rugged, Reinforced Composite Construction

Autel Smart Controller V2

Sleek and PortableThe Smart Controller weights 2.5 pounds and comes with removable command sticks and storage so it can be tucked into a carrying bag with ease.

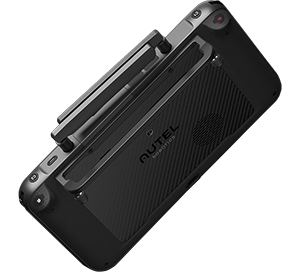

Premium Material, Rugged DesignThe back of the controller is made from reinforced composites and 3D laser engraved for improved ergonomics, grip, and durability.

4G/5G Streaming via USB

Autel Smart Controller V2

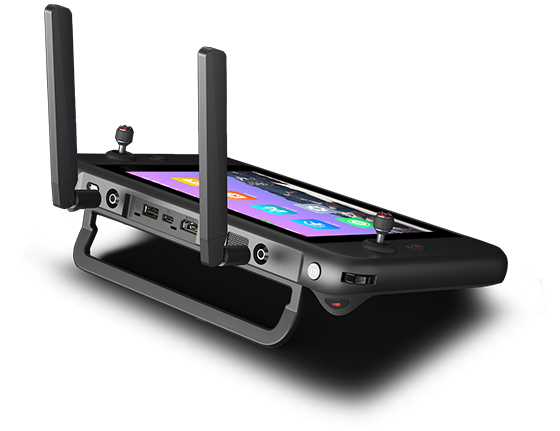

Multi-Port OutputHDMI, USA-A, and USB-C ports allow for live streaming with 4G/5G network modules. SMA connectors allow the antennas to be detached and replaced or upgraded with SMA compatible third party devices.

The Tech Spec

Features Specification
Working Frequency Image Transmission: 902-928 MHz;2.400-2.4835 GHz;5.725-5.850 GHz

Digital Transmission: 5.725 - 5.755 GHz

Wi-Fi: 2.400 - 2.4835 GHz; 5.150 - 5.250GHz; 5.725 ‒ 5.850 GHz
Transmitter Power (EIRP) Image Transmission:
902-928 MHz
FCC:≤30dBm
2.400-2.4835 GHz
FCC:≤30dBm
CE:≤20dBm
5.725-5.850 GHz
CE:≤14dBm

Digital Transmission:
FCC:≤20dBm
CE:≤14dBm

Wi-Fi:
2.400-2.4835 GHz
FCC/CE:≤20dBm
5.150-5.250GHz
FCC:≤17dBm
5.725-5.850 GHz
FCC:≤17dBm
CE:≤14dBm
Max Signal Transmission Distance (No interference, No obstacles) FCC:13km; CE:7km
Wi-Fi Protocol Wi-Fi Direct;
Wi-Fi Display;
802.11a/g/n/ac;
Wi-Fi with 2×2 MIMO
Battery Type Li-ion
Capacity 5800mAh
Voltage 11.55V
Battery Energy 67 Wh
Charging Time 120 min
Operating Time 3 Hours (Max Brightness)
4.5 Hours (50% Brightness)
Internal Storag 128GB
Video Output Port HDMI
USB A Voltage/Current 5V / 2A
Operating Temperature -20℃ to 40℃
Charging Temperature 5℃ to 45℃
Supported Aircrafts EVO II Series
EVO II RTK Series
EVO II Enterprise
Satellite Positioning Module GPS+GLONASS+Galileo
Dimensions 303x190x87 mm (antennas folded)
303x273x87 mm (antennas unfolded)
Weight 1150g (without protection case)
1250g (with protection case)
