DJI CrystalSky High-Bright 7.85" Monitor
7.85" DJI CrystalSky High Brightness Monitor, 2048x1536, 1000cd/m², 4K Decoding, HDMI/Micro-USB/USB-C/Dual MicroSD
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
DJI - 'CrystalSky'
7.85" High-Brightness Monitor
'Created for Aerial Imaging'The CrystalSky monitor created by DJI features a high-brightness screen so that you can view your aerial imaging outside in the sunlight. DJI has designed these monitors from the ground up to work seamlessly with the DJI GO app, giving greater control to camera operators.
1000cd/m²Ultra-Bright
2048x1536Resolution
4920mAhBattery
Double the Brightness of Mobile Devices

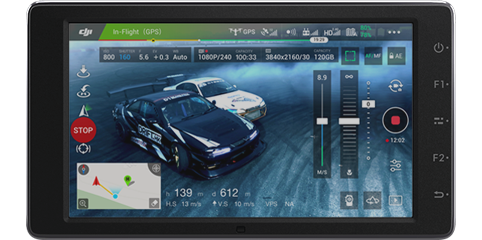

High-BrightnessThe CrystalSky High-Brightness monitor features a maximum 1000cd/m² brightness giving you more than double the brightness when compared with typical mobile devices. Clear and sharp details along with vibrant colours are exactly what you need when fine tuning your composition on location and that’s what the CrystalSky Monitors provide. The Dedicated Sunlight Readability Enhancement mode was specifically designed for processing images in real-time to give a more comfortable viewing experience under bright sunlight.
Experience the Features of DJI GO
SMOOTHER VIDEO DISPLAYLimitations in smartphone and tablet software can create less than ideal video decoding results, with jittering footage, long latency and transmission issues. The CrystalSky monitors use an optimised decoder to provide you with smooth, real-time video with as little latency as possible.
CUSTOMIZED SYSTEM AND DJI GOA newly designed system removes unnecessary Android apps and services and is resistant to viruses and junk software. This ensures that the CrystalSky monitor is able to offer optimum performance at all times. Its embedded DJI GO app provides full access to all DJI GO features including aircraft parameter adjustment, camera control, footage management, and playback. Using offline maps, maps can be kept available even if going out of Wi-Fi reach.
*Supports DJI GO, DJI GO 4 and DJI Pilot.
Extra Long Battery Life

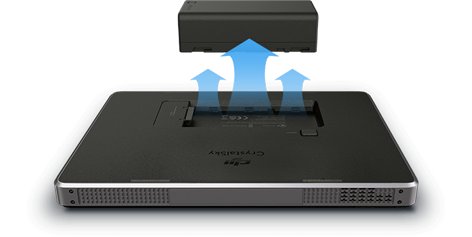

Power SupplyThe dual cell 4920mAh external secondary battery provides a longer operating time for the CrystalSky monitor than comparable mobile devices. Support for quick charge, and a well controlled discharge rate even in low temperatures allowing for a maximum operating time of 4-5 hours when paired with the 7.85” monitor.
Easily Share Your Content

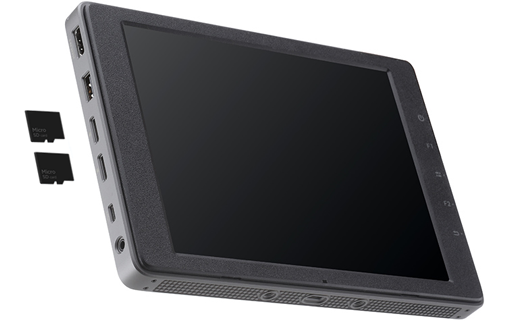

Dual SD Card SlotsThe CrystalSky monitor is equipped with dual MicroSD Card slots to extend it’s storage, or footage can be played back directly on the monitor from the MicroSD card. It can also be used for backing up your footage. DJI GO can be used to create high-quality edits quickly and instantly shared to social media. The CrystalSky monitor supports H.264 and H.265 video decoding, allowing play back of these files at 30 fps and 60 fps respectively. These videos can also be output through the onboard HDMI port.

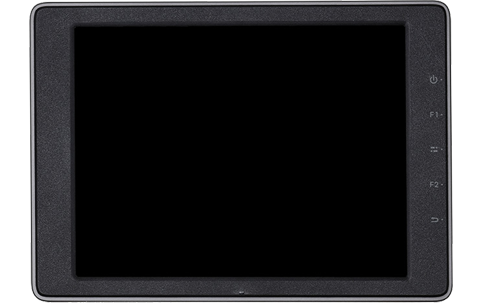

PORTS AND NETWORKThe onboard HDMI port of the CrystalSky monitor allows for up to 4K video to be output to FPV googles and other display devices. With dual-band Wi-Fi built-in, the monitor can be connected to Wi-Fi networks and Wi-Fi hotspots from mobile devices, it is also compatible with 4G dongles and USB storage devices through its USB-A port. When the CrystalSky monitor is connected to the internet it gets easy access to system upgrades, livestreaming, photo or video sharing, data synchronisation and more. Mobile data demand is limited by using file sizes that are as optimised as possible. Onboard Micro USB and USB-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices.
EXTREME TEMPERATURE OPTIMISEDAlmost all smart devices are design to operate in common temperature ranges. The CrystalSky monitor’s external battery has been designed to withstand more extreme temperatures.It is able to operate in as low as -20°C and, with its internal cooling system, functions normally in temperatures as high as 40°C.
Compatible with a Wide Range of DJI Systems
DJI Aerial System CompatibilityThe CrystalSky monitor can quickly connect to the Inspire series, Phantom 4 series, Phantom 3 series (Phantom 3 Professional, Phantom 3 Advanced), Matrice series,
Mavic Pro and Osmo series (except the Osmo Mobile) over Wi-Fi or via a remote controller USB port, depending on your specific product.* Also, CrystalSky easily

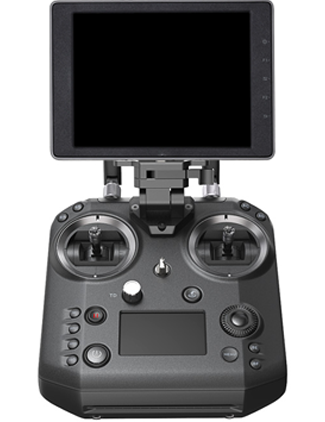

attaches to the Cendence remote controller without an additional mounting bracket.
*Monitor mounting bracket recommended. The Mavic Pro and Osmo series gimbal cameras
(excluding the Osmo Mobile) are only compatible with 5.5" Crystalsky monitors.
Phantom Series
Inspire Series
Matrice Series
Osmo Series(Osmo Mobile Excluded)
Mavic Pro
Cendence
The Tech Spec
| Features | Specification | Display | Multi-touch display with IPS technolgy. |
|---|---|
| Resolution | 2048x1536 |
| Brigtness | 1000cd/m² |
| Operating System | Android |
| System Languages | Simplified Chinese, Traditional Chinese, English, and Japanese |
| App | DJI GO, DJI GO 4, DJI Pilot |
| Memory | ROM 64GB+RAM 4GB |
| Connectors | HDMI, MicroSD Card slots, Micro-USB and USB-C |
| Connectivity | WIFI：2.4G，5.2G&5.8G 802.11b、802.11g、 802.11n(HT20)、802.11a 4G dongle support) |
| GPS | GPS/GLONAASS |
| Gyroscope | Support |
| Compass | Support |
| Speaker | Support |
| Brigtness Sensors | Support |
| Mic | Support |
| Built-In Battery | 980mAh, 3.7V |
| External Battery | 4920mAh, 7.6V (detachable) |
| Brigtness Sensors | Support |
| Operating Temperature | -20°C to 40°C |
| 4K Video Decoding | H.264 4k 30fps / H.265 4k 60fps |
| Dimensions Without Battery | 208.6x147.8x17mm |
| Dimensions With Battery | 208.6x147.8x34.75mm |
| Outer Battery | 90x45x26mm |
