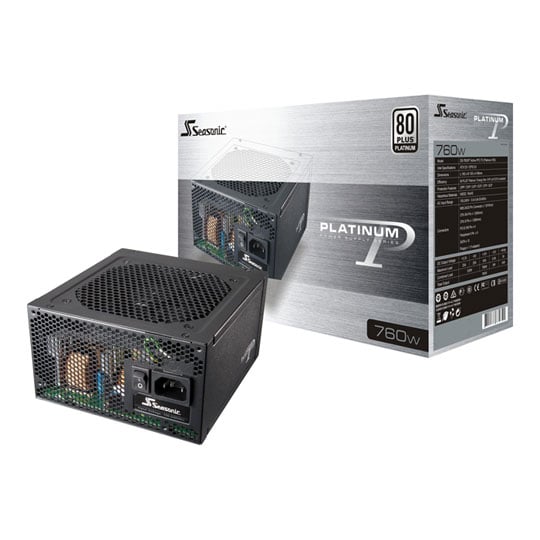

Seasonic Platinum 760W Modular Power Supply

760W Seasonic Platinum, Full Modular, 80 PLUS Platinum, ATX, PSU

Seasonic
Scan code: LN47993 Manufacturer code: SS-760XP2 Request call
£179.99Item overdue since 04 November 2016
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Seasonic’s Patented Fully Modular Design while minimizing voltage drops and impedance, it greatly maximizes efficiency and cooling to enhance overall performance and reliability. The Platinum Series, certified in accordance to the 80PLUS highest standards, offers the newest technology and innovation for performance and energy savings with up to 92% efficiency and a true power factor of greater than 0.9PF. Features • 80PLUS® Platinum Certified Super High Efficiency.
• DC Connector Panel with Integrated VRM [Voltage Regulator Module].
• DC to DC Converter Design.
• Active Power Factor Correction [99% PF Typical].
• Conductive Polymer Aluminium Solid Capacitors.
• Highly Reliable 105°C Japanese Aluminium Electrolytic Capacitors.
• Gold Plated High Current Terminals.
• High +12V Output.
• Dual Sided PCB Layout.
• Seasonic Patented Hybrid Silent Fan Control.
• Sanyo Denki San Ace Silent Fan.
Specifications
Specifications
Size ATX
Edition
Wattage 760 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency 92 %
Cooling Fan
Fans
Internal +12V Rails Single Rail
Rail 1 +12V 63 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4 Pin
Connectors
  • 1 x 4+4pin CPU +12V
  • 5 x 4pin Molex
  • 4 x 6+2pin PCI-E Power
  • 1 x 8pin CPU +12V
  • 1 x FDD Power
  • 10 x SATA Power
Dimensions 150 x 86 x 160 mm (WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
84 months
Type:
Direct
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Seasonic
Telephone:
[email protected]

Additional Notes:
Scan Computers will only assist you with a warranty claim within the first year, outside of this time you will have to return to Seasonic directly in Germany.

Reviews
Rated 5 out of 5 by 8 reviewers.
Rated 5 out of 5 by Excellent PSU The build quality of this PSU is really good, sufficient cables are supplied for most needs. Even when fan is running the unit is very quiet. This PSU is feeding an Asus X99 motherboard with quad channel DDR4, Intel I7 5820 CPU and 2 x ASUS 970GTX graphics cards, even running under games benchmarks software the PC is almost inaudible. Voltages from the PSU are well within spec. 08 January 2016
Rated 5 out of 5 by Silent for my use - brilliant. I needed a silent PC for audio production and this PSU has worked out brilliantly - it's beefy enough to power everything in my PC and, because my system runs cool, it runs passively even when gaming. very impressed and happy :) 19 October 2015
Rated 5 out of 5 by What to look for in a power supply. Reliability quality components/capacitors and after all if it is a power supply then it should be the most efficient it can be. After all why pay more in a power bill than you have too once you have paid for it. With this unit having a Max efficiency of 92% higher than more expensive options. Its a winner! 10 August 2015
Rated 5 out of 5 by Excellent PSU, quiet, plenty of juice I wanted an efficient PSU that wasn't close to the rated wattage limit when pushing my gaming PC to the limit. Another factor was I wanted a quality PSU seeing as I didn't want to risk blowing expensive components by using a low cost variant. After looking at the details of various internet reviews this fitted the bill - ticked all the boxes. It's modular but I ended up using most of the cables seeing as my PC is also a HTPC with several HDDs a SSD, TV card, numerous fans. 28 March 2014
Rated 5 out of 5 by Fantastic producct A truly quality built product. The fan pretty much never never spins, even under full load. And when it does it's silent anyway. Obviously a pricey option, but lets face it, it's the part you want to go wrong the least. 04 February 2014
Rated 5 out of 5 by Excellent Excellent, mostly silent - the fan is static for the majority of time, highly recommended. 07 November 2013
Rated 5 out of 5 by Had problem but first class support. I had a problem with my first unit after two weeks. Basically the PC just wouldn't resume from power off or suspend. I emailed Seasonic tech support and had a brilliant experience - given that I am only a home user. They were very responsive, knowledgeable and helpfu,l They agreed to RMA and the replacement has been fine. I like the fact it's modular so I don't cables everywhere when they are not needed. It's not and quiet and I have since bought a second one for another build. 25 October 2013
Rated 5 out of 5 by High quality product Easy to install with fan facing up or down depending on your preference/case. Very quiet in "hybrid" mode, can be heard if not in "hybrid" mode and usage is high but still very quiet most of the time. Excellent build quality, robust, great modular connections and delivering voltages with 0.02V of expected. Would certainly buy again. 01 October 2013
