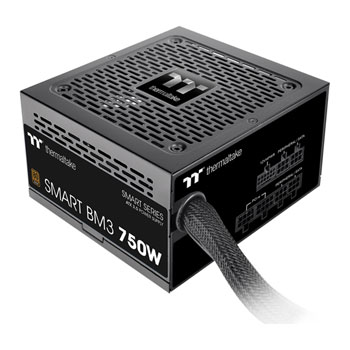

Thermaltake Smart BM3 750 Watt Semi Modular PCIe Gen 5 ATX3.0 80+ Bronze PSU/Power Supply

750W Thermaltake Smart BM3, Native PCIe 5, Semi Modular, 80PLUS Bronze, Single Rail, 62.5A, 120mm Fan, ATX3.0 PSU

Thumbnail 1 : Thermaltake Smart BM3 750 Watt Semi Modular PCIe Gen 5 ATX3.0 80+ Bronze PSU/Power Supply Thumbnail 2 : Thermaltake Smart BM3 750 Watt Semi Modular PCIe Gen 5 ATX3.0 80+ Bronze PSU/Power Supply Thumbnail 3 : Thermaltake Smart BM3 750 Watt Semi Modular PCIe Gen 5 ATX3.0 80+ Bronze PSU/Power Supply Thumbnail 4 : Thermaltake Smart BM3 750 Watt Semi Modular PCIe Gen 5 ATX3.0 80+ Bronze PSU/Power Supply
Scan code: LN139295 Manufacturer code: PS-SPD-0750MNFABE-3
£94.99Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Smart BM3 750W Semi Modular PSU from Thermaltake

BM3

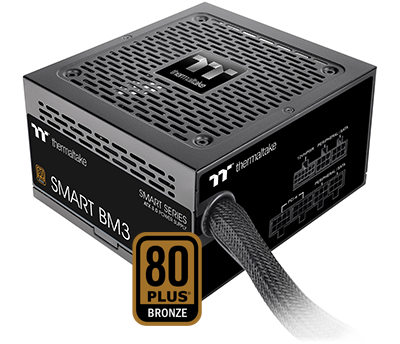

Power Up the Next Generation HardwareSmart BM3 80 PLUS Bronze certified semi modular PSU is designed to meet ATX 3.0 standards, it also comes with one PCIe Gen 5.0 (12VHPWR) connector to support modern graphics cards. With an ample 5-year warranty, the Smart BM3 series is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

Incredible Power

DJI Air 3 Drone

Compatible with Intel ATX 3.0 StandardsSmart BM3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

DJI Air 3 Drone

PCIe Gen 5.0 ReadySmart BM3 Bronze series comes with a 16-pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs. The wattage marked on the 12VHPWR’s connector is the recommended wattage.

Made to Comply with the Latest Graphics Cards

4K Recording

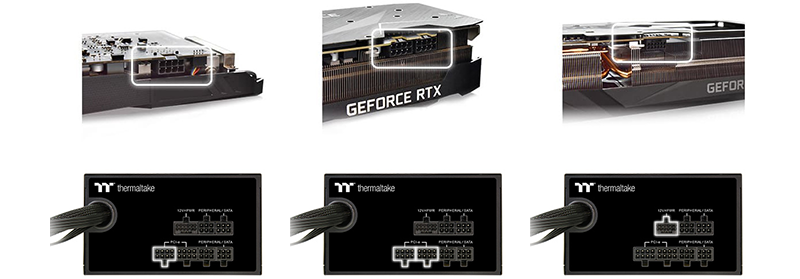

support NVIDIA and AMDAs the power consumption of graphics cards increase, so has their demand for power. The Smart BM3 series is designed to support NVIDIA and AMD graphics cards, it supports 8-pin PCIe cables for AMD graphics cards & entry RTX 40 series graphics cards, it also comes with a 1 x 16-pin connector for RTX 40 series cards that need a PCIe Gen 5.0 connector, ready to supply the graphics cards according to their different ways of connections.

Built-in Industrial Grade Protection

4K Recording

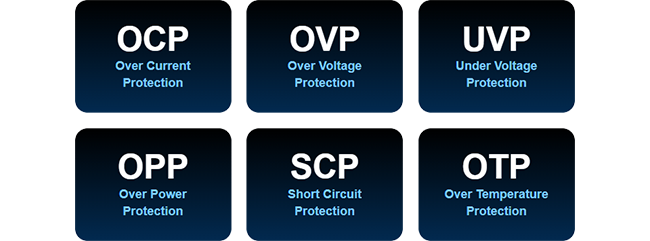

BUILT TO LASTTo protect the hardware, Smart BM3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

Impressive Energy Saving

4K Recording

80 PLUS Bronze-Certified and Intel C6/C7 States ReadySmart BM3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Specifications
Form Factor ATX 3.0
Edition BM3 750W
Wattage 750 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 62.5 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62.5 A
Modular Yes
Modularity Semi Modular
SLI/CrossFire No
EPS 12V No
Motherboard Connector 24-pin
Connectors
  • 1 x 12+4-pin PCIe
  • 2 x 4+4-pin ATX 12V
  • 1 x 4-pin FDD Power
  • 7 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x 8-pin ATX 12V
  • 6 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Warranty 5 Year
Additional Information
Scan Code LN139295
Model Number PS-SPD-0750MNFABE-3
GTIN 4713227539746
