Seasonic CONNECT 750 Watt Full Modular 80+ Gold PSU/Power Supply

750W Seasonic CONNECT, Full Modular, 80 PLUS Gold, SLI/CrossFire, Single Rail, 62A, 135mm Fan, ATX PSU

Thumbnail 1 : Seasonic CONNECT 750 Watt Full Modular 80+ Gold PSU/Power Supply Thumbnail 2 : Seasonic CONNECT 750 Watt Full Modular 80+ Gold PSU/Power Supply Thumbnail 3 : Seasonic CONNECT 750 Watt Full Modular 80+ Gold PSU/Power Supply Thumbnail 4 : Seasonic CONNECT 750 Watt Full Modular 80+ Gold PSU/Power Supply
Scan code: LN105947 Manufacturer code: SSR-750FA
Call for price
Delivery Options
  • By DPD On 14th Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Connect Gold 750 Watt Power Supply from Seasonic

ION+ 560W PSU

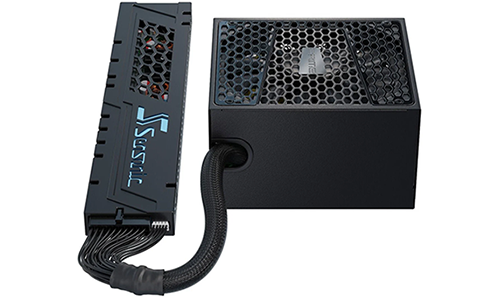

A NEW LEVEL OF PC POWER The Seasonic CONNECT is comprised of two linked products. One is the Seasonic PRIME 750 W 80 PLUS® Gold certified power supply, with S3FC technology for efficient cooling and quiet operation. The other component is the CONNECT device, which is essentially a backplane that is mounted on the PC case with magnets to provide for the connections to all the components. During installation you only need to use two cables from the power supply to power the CONNECT. While the power supply itself supports the +12 V, -12 V and +5 Vsb rails, the CONNECT converts this power to provide the +3.3 V and +5 V outputs from the +12 V rail.

750Watts

80 PLUS® GoldEfficiency

ATXForm Factor

Excellent Efficiency for your Dream PC

80 plus gold

80 PLUS® GOLDThe CONNECT achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

Add Style to your Rig

80 plus gold

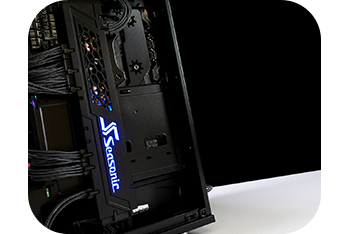

ONE CLEAN SOLUTIONThe Seasonic CONNECT is an aesthetic upgrade to everyone’s system and it also features a Seasonic LED display. The Seasonic CONNECT will ship with a dedicated cable set that will be long enough to reach any part of your computer to make your CONNECT a One Clean Solution.

Connect Feature Summary

1.80 PLUS® Gold certified

2.Micro Tolerance Load Regulation (0.5 %)

3.Cable-free Connection Design

4.Premium Hybrid Fan Control - Fanless until 40 % load

5.Multi-GPU setup

6.Gold plated connectors

7.10 years warranty

See how to Install your Seasonic Connect

connect video
Specifications
Size ATX
Edition CONNECT
Wattage 750 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 62 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin ATX 12V
  • 3 x 4-pin Molex
  • 2 x 4-Pin Molex to SATA
  • 4 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN105947
Model Number SSR-750FA
GTIN 4711173875611
