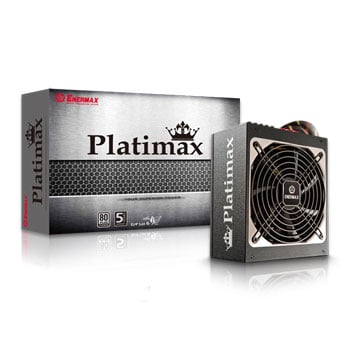

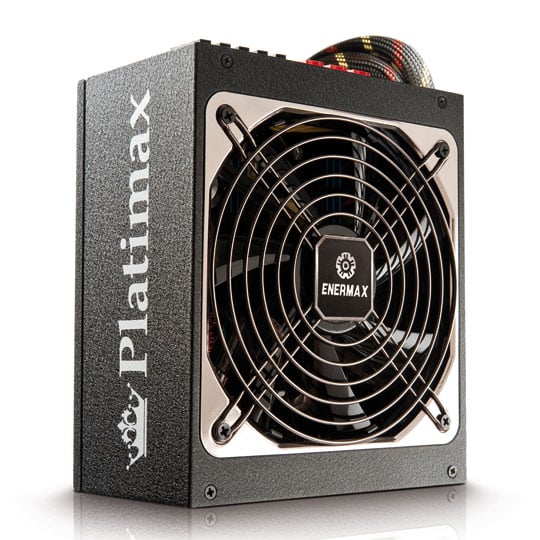

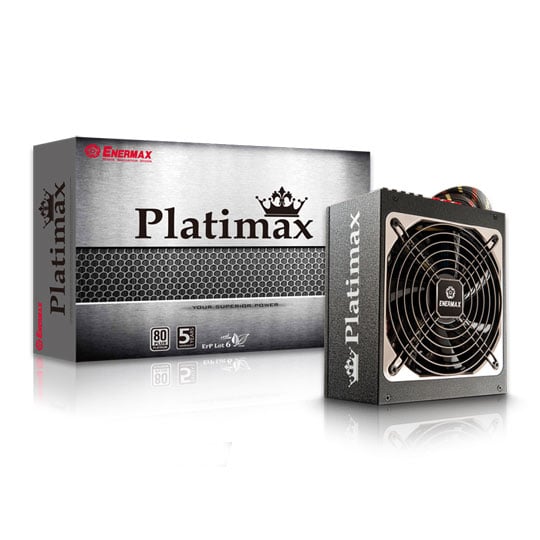

Enermax Platimax 750W Hybrid Modular Power Supply
Scan code: LN42478
Manufacturer code: EPM750AWT
End Of Life
Product Overview
Enermax 750W is a High-performance power supply topology to use all magnetic quadrants of the main transformer and to achieve maximum efficiency and rock stable output voltage. It features Innovative and patented transmission technology for direct voltage transmission to reduce the wire-resistance and to increase the efficiency.
80 PLUS® Platinum*
90 to 94 percent efficiency at 230V and 20 to 100 percent load. 80 PLUS® Platinum certified.
* EPM1500EGT is designed for 220-240V. It even surpasses 80 PLUS® Platinum requirements with 90 to 95% efficiency.
FMQ Design*
High-performance power supply topology to use all magnetic quadrants of the main transformer and to achieve maximum efficiency and rock stable output voltage.
* only EPM1350EWT and EPM1500EGT
Dynamic Hybrid Transformer Topology*
Technological breakthrough topology using a staged dynamic transformer array for extremely high efficiency with the most durable and stable output at any load.
* only EPM500AWT, EPM600AWT, EPM750AWT, EPM850EWT and EPM1000EWT
Copper Bridge Array*
Innovative and patented transmission technology for direct voltage transmission to reduce the wire-resistance and to increase the efficiency. Optimized air circulation due to clear and spacious PCB design.
* only EPM1350EWT and EPM1500EGT
ErP Lot 6 ready!
Help systems to meet EU eco-design directive ErP/EuP Lot 6 (<0.5W (only EPM1350EWT) / <1W in standby mode*) due to improved, high-efficient 5V standby (+5Vsb) circuitry.
* only in combination with an ErP Lot 6 ready Mainboard
ZERO Load Design
Stable voltage output even at 0W load. In this way, Platimax supports the energy-saving functions (C6/C7) of the latest Intel® CPUs (incl. the forthcoming Haswell generation) as well as the energy-saving modes of modern graphics cards (Hybrid Mode) and prevents compatibility issues.
Multi Rail Design*
Stable and safe power supply thanks to up to six high-performance and massive 12V rails each with separated over current protection (OCP). Extremely low ripple noise.
* except EPM1000EWT
Special OC Edition
EPM1000EWT with one powerful and rock stable 12V rail for maximum performance to support systems with extremely overclocked CPU and/or GPU.
Future ready and flexible
All-round modular cable management. 10/12P sockets for possible connector changes of upcoming high-performance CPU and graphics card generations.
Full-modular Cable Management*
Cables can be completly removed in order to make the system installation and cable routing more comfortable and to improve the air circulation inside the case.
* only EPM1200EWT and EPM1500EGT
Intel ATX12V v2.4
Compliant with the latest desktop power supply design guide. Full support of most current Intel® and AMD® CPU.
Fit4Server*
Compliant with SSI PSDG for the new Intel® Core™ Extreme/i7, Xeon™ and AMD® Opteron™ and downward compatible with EPS12V v2.92, v2.8.
*only EPM850EWT, EPM1000EWT, EPM1200EWT and EPM1500EGT
DXXI ready!
Full support of most current DX11 graphics cards due to minimum two 6+2P (8P) PCI-E connectors.
Full graphics power
Supports SLI™ and CrossFireX™ systems.
Air Cooling by Enermax
Integrated 13.9cm fan with patented Twister Bearing Technology* ensures efficient and ultra silent cooling and long lifetime (100,000 hours MTBF).
* except EPM1350EWT
SpeedGuard*
Path-breaking and leading fan speed control to ensure effective and silent cooling. Unmatched 300 to max. 1,000 RPM.
* EPM1200EWT: 600 to 1,500 RPM / EPM1500EGT: 900 to 2,000 RPM
HeatGuard
Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.
SafeGuard
Industry-leading multiple protection circuitry of OCP, OVP, DC UVP, OPP, OTP, SCP & SIP.
CordGuard
Fixing the AC cord tightly to avoid accidental shutdowns of your PC.
Non-stop @ 50°C*
Non-Stop industrial class performance at 50°C ambient.
* EPM1350EWT/EPM1500EWT: non-stop industrial performance at 40°C
High-quality Japanese Capacitors
Highest Enermax quality standards for leading stability and maximum durability. 105°C Japanese electrolytic capacitors without exception.
Extreme Density Transformer*
Innovative design boosts transformer core utilization rate and reduces overall dimension.
* only EPM1350EWT and EPM1500EGT
Worldwide Compatibility*
100-240V AC input with automatic adjustment and up to 99% active Power Factor Correction (PFC) for global usage.
* EPM1500EGT: 220-240V
ENERGY STAR 5.0 ready!
Support computer system to meet ENERGY STAR 5.0 standard.
Dimensions (W x H x D)
EPM500AWT/EPM600AWT: 150 x 86 x 160mm | EPM750AWT/EPM850EWT/EPM1000EWT: 150 x 86 x 175mm | EPM1350EWT/EPM1500EGT: 150 x 86 x 180mm
Warranty
5 years vendor warranty
Features • Dynamic Hybrid Transformer Topology.
• ErP Lot 6 ready!
• Multi Rail Design.
• Full-modular Cable Management.
• Supports SLI™ and CrossFireX™ systems.
• Integrated 13.9cm fan with patented Twister Bearing Technology.
