Scan code: LN115291 Manufacturer code: CP-9020061-UK/RF

Corsair CX750M Series 750W 80+ Bronze Power Supply, Refurbished

750W Corsair CX750M, Semi Modular, 80PLUS Bronze, Single Rail, 62A, 120mm Fan, ATX PSU, Refurbished

Thumbnail 1 : Corsair CX750M Series 750W 80+ Bronze Power Supply, Refurbished Thumbnail 2 : Corsair CX750M Series 750W 80+ Bronze Power Supply, Refurbished Thumbnail 3 : Corsair CX750M Series 750W 80+ Bronze Power Supply, Refurbished Thumbnail 4 : Corsair CX750M Series 750W 80+ Bronze Power Supply, Refurbished
Scan code: LN115291 Manufacturer code: CP-9020061-UK/RF
£54.98
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Refurbished CX750M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair CX750M Power Supply 80PLUS - Bronze

Corsair CXM 750W Power Supply

The CX750M is an excellent mid-level PSU for use in basic system builds and desktop PC computer uprades. The CXM Series is available in a variety of power configurations allowing you to power more components if needed. The matt black finish, black sleeved cables and black connectors give the CX450M a high-tech look. The clever thermally controlled fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This means the CX750M emits less excess heat, lower noise, and lower power bills.

View other CXM Series power supplies:
CX850

Fully Wired Connectivity

Connections

Modular Cabling System

On the CX750M PSU the peripheral power cables aren’t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC’s case where they can add to the clutter and interfere with airflow.

CX750M Efficiency & Noise Graphs

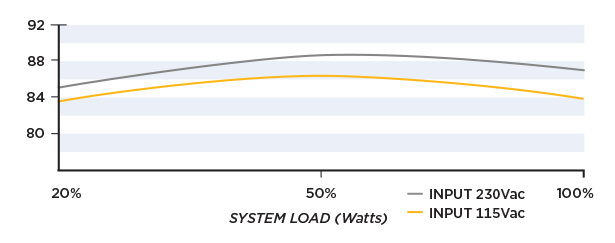

CX750M EFFICIENCY

Efficiency Graph

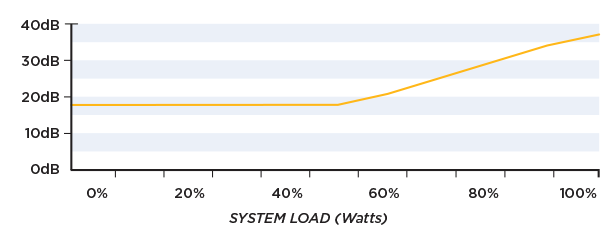

CX750M FAN NOISE

Noise Graph

Corsair CX750M Output Power Chart

Corsair CX750M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 62A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 744W 9.6W 15W
  Total Power: 750W
Specifications
Size ATX
Edition CX750M
Wattage 750 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 62 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 140 x 86 x 150 (WxHxD)
Package Type Refurbished
Additional Information
Scan Code LN115291
Model Number CP-9020061-UK/RF
GTIN 843591030762
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01204 474747
