Scan code: LN109093 Manufacturer code: MPE-7501-ACABW-BUK

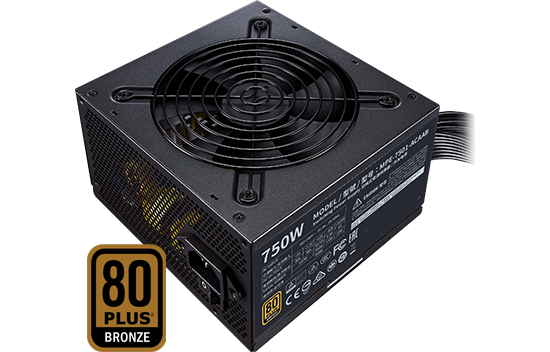

Cooler Master MWE Bronze 750 V2 PSU / Power Supply

750W Cooler Master MWE 750 V2 Fully Wired, 80PLUS Bronze, Single Rail, 62A, 1x120mm Fan, ATX PSU

Thumbnail 1 : Cooler Master MWE Bronze 750 V2 PSU / Power Supply Thumbnail 2 : Cooler Master MWE Bronze 750 V2 PSU / Power Supply Thumbnail 3 : Cooler Master MWE Bronze 750 V2 PSU / Power Supply Thumbnail 4 : Cooler Master MWE Bronze 750 V2 PSU / Power Supply
Scan code: LN109093 Manufacturer code: MPE-7501-ACABW-BUK
£64.99
Order now and get it tomorrow, Wed 22nd Sep
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

MWE V2 750W Bronze Full Modular Power Supply from Cooler Master

MWE Bronze

POWER UP YOUR SETUP The MWE Bronze V2 offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS Bronze efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great mid-tier computing experience, you can't go wrong with the MWE Bronze V2.

Perfect Power, Perfect Efficiency

4K Recording

80 Plus Bronze CertifiedIt's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.

Always Staying Cool

4K Recording

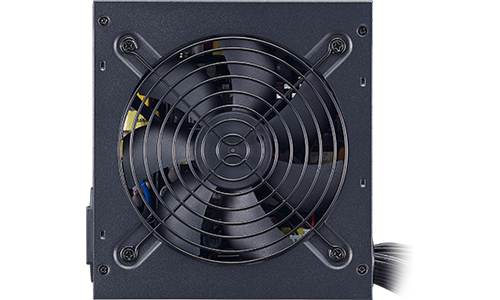

120mm HDB FanThe constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze's solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system's temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.

All Around Power Consistency

4K Recording

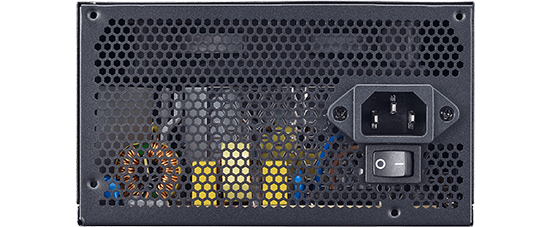

Single +12V RailGetting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading. The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system's overall performance. That's why the MWE Bronze only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.

Push your Power Further

4K Recording

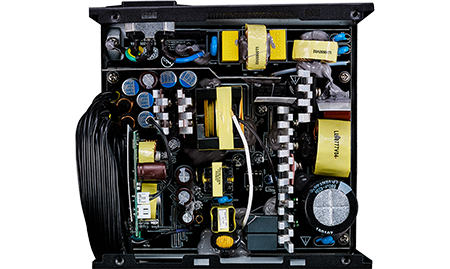

DC-to-DC Circuit DesignPower comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE Bronze's DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected components.

Installation is a Breeze

4K Recording

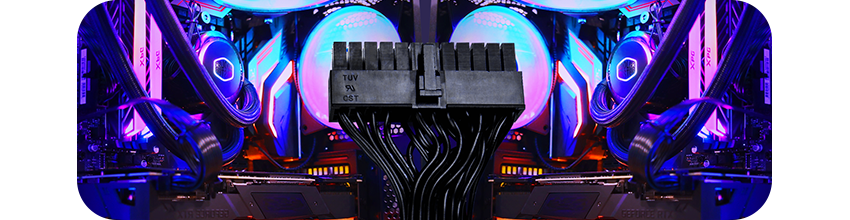

Flat Black CablesFor many PC Builders with aesthetics in mind, cabling can be one of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze - V2 uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.

Specifications
Size ATX
Edition MWE
Wattage 750 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 88 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 62 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 3 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 6 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN109093
Model Number MPE-7501-ACABW-BUK
GTIN 4719512104545
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
