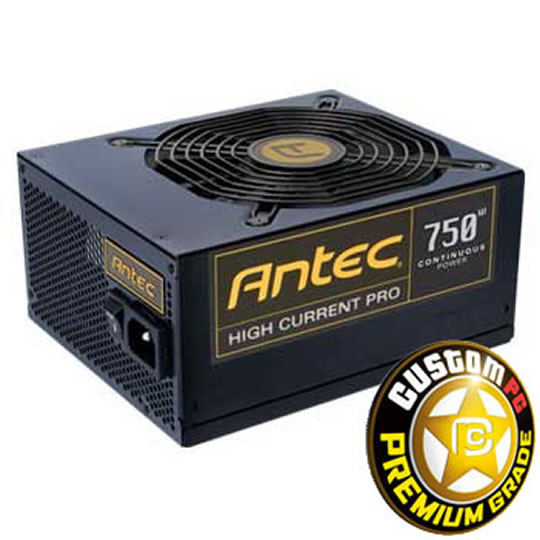

Antec High Current Pro 750W PSU 80Plus GOLD
750W Antec HCP-750 GB High Current PRO 92% Eff', 80 PLUS Gold, SLI/CrossFire, EPS 12V, Quiet Fan, ATX v2.3, PSU
Scan code:
LN36268
Manufacturer code:
HCP-750 GB
End Of Life
Delivery Options
- By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
Antec's HCP-750 unifies raw power with advanced PSU engineering to meet the demands of high performing PCs. A full-featured, 80 PLUS® Gold certified unit, HCP-750 is capable of outputting 100 percent of its rated power on its four +12V rails to ensure CPU and graphics card compatibility. Exclusive to the High Current series, HCP-750 boasts High Current heavy-gauge 16 AWG wiring that boosts conductivity, increasing efficiency and improving power delivery. In addition, a double-layer PCB and onboard DC-to-DC converters provide substantial voltage stability. To tackle the needs of your system, pick up Antec's HCP-750.
Features 750 watts of Continuous Power
80 PLUS™ Gold certified - up to 92% efficient
NVIDIA® SLI®-Ready certified, ATI CrossFireX™ certified
Intelligent Hybrid Cable Management utilizes a 10-pin modular connector system
Special heavy-gauge 16 AWG High Current cable for CPU connectors boosts conductivity, increasing efficiency and improving power delivery
2 x 8-pin CPU connectors i ncluded for dual-CPU gaming, server applications and high-end motherboards
Gold-plated high-current terminals for optimal conductivity
135 mm double ball bearing PWM fan for optimal and quiet cooling
Four fully-protected High Current +12V rails ensure high-end CPU and graphics cards compatibility
Up to 100% power available on +12V rails
DC-to-DC voltage regulator modules ensure stability and higher efficiency
Highest quality Japanese brand capacitors for long-term reliability
Double-layer PCB allows for heavy-duty components
ATX12V version 2.3 and EPS12V version 2.92 compliant
Full suite of industrial grade protection :
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP)
- Over temperature protection (OTP)
All cables braided and wrapped for better airflow and neatness
Universal Input - works on any 100V - 240V grid
Active Power Factor Correction (PFC) with PF : 0.99
MTB F: 100,000 hours
Meets ErP Lot 6: 2010 requirement : 5Vsb < 1W
Safety : cUL, TÜV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
Unit Dimensions
- 86 mm (H) x 150 mm (W) x 180 mm (D)
- 3,4" (H) x 5,9" (W) x 7,1" (D)
