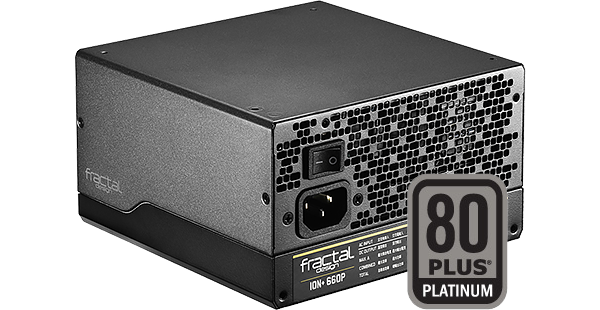

Fractal Design ION+ 660P 660 Watt Fully Modular Platinum PSU/Power Supply

660W Fractal Design Ion+ 660P, Full Modular, 80 PLUS Platinum, SLI/CrossFire, Single Rail, 55A, 140mm Fan, ATX PSU

Thumbnail 1 : Fractal Design ION+ 660P 660 Watt Fully Modular Platinum PSU/Power Supply Thumbnail 2 : Fractal Design ION+ 660P 660 Watt Fully Modular Platinum PSU/Power Supply Thumbnail 3 : Fractal Design ION+ 660P 660 Watt Fully Modular Platinum PSU/Power Supply Thumbnail 4 : Fractal Design ION+ 660P 660 Watt Fully Modular Platinum PSU/Power Supply Fractal Design ION+ 660P 660 Watt Fully Modular Platinum PSU/Power Supply : video thumbnail 1
Scan code: LN97967 Manufacturer code: FD-PSU-IONP-660P-BK
£104.99
From £8.75 / month (APR 0%)
Monthly Payment: £17.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £104.99
Monthly Payment: £8.75
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £104.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Dec To 19th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ION+ Platinum 660P - 660 Watt Power Supply from Fractal Design

ION+ 760W PSU

UTILIZE FULLY MODULAR GREATNESS Experience high-performance, fully modular quality with the ION+ Platinum PSU from Fractal Design. This innovative power supply unit offers whisper-quiet operation and superior cable flexibility so you can install it into your PC with ease. Enjoy incredible output quality and industry-leading 80 PLUS® Platinum Efficiency. You can utilize a semi-passive Zero RPM mode which makes your PSU completely silent under light loads, with a specially designed 140mm fan with FDB bearings to make your fan silent even under more demanding workloads. Enjoy easy installation with the flexible UltraFlex cable which has a high strand count wire and special insulation bends so you can easily twist cables with no effort to make routing a breeze. The ION+ PSU utilizes premium Japanese 105°C capacitors to give you excellent durability, and the PSU itself only takes up 150mm of depth so you can place it in compact spaces with extra room for cables. If all these amazing features aren't enough, the ION+ offers a range of protective features and comes with a fantastic ten-year warranty to give you support for years to come.

Specially Engineered for Silent Performance

ion silent fan

CUSTOM-TAILORED FAN FOR ZERO NOISE The ION+ uses a 140mm Dynamic Series fan which works to minimize noise whilst maximizing lifespan with true FDB bearings. You can select a Zero RPM mode which allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling.

Protective Features for Fantastic Longevity

protective japanese capacitors

KEEP YOUR ION PSU PROTECTED The ION+ PSU uses premium Japanese 105°C capacitors to give you incredible durability and reliability. It also utilizes a wealth of protective features such as Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection. All these extensive safeguarding features work to keep your PSU working reliably for longer.

ION+ 660P Connection Ports

ION ports

impressive connectivity options 1 x 4+4-pin ATX 12V | 4 x 4-pin Molex | 6 x 6+2-pin PCIe | 10 x SATA

Perfect Efficiency Guaranteed

80 plus platinum efficiency

80 PLUS PLATINUM & WARRANTY The ION+ PSU has an 80 PLUS® Platinum Efficiency rating which means your PSU supplies optimized electrical performance and reduced heat generation. Fractal Design also offers a generous ten-year warranty with your ION+ PSU so you'll be supported for years to come.

Discover more About the Features of your the ION+ Power Supply

ION VIDEO
Specifications
Size ATX
Edition Ion+ 660P
Wattage 660 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 55 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 55 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin ATX 12V
  • 4 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 10 x SATA
Dimensions 150 x 86 x 150 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN97967
Model Number FD-PSU-IONP-660P-BK
GTIN 7340172701941
