Scan code: LN100769 Manufacturer code: Focus PX-650

Seasonic Focus PX 650 650W Modular 80+ Platinum PSU/Power Supply

650W Seasonic Focus PX-650 80PLUS Platinum, Single Rail, Fully Modular, 54A, 120mm Fan, ATX PSU

Thumbnail 1 : Seasonic Focus PX 650 650W Modular 80+ Platinum PSU/Power Supply Thumbnail 2 : Seasonic Focus PX 650 650W Modular 80+ Platinum PSU/Power Supply Thumbnail 3 : Seasonic Focus PX 650 650W Modular 80+ Platinum PSU/Power Supply Thumbnail 4 : Seasonic Focus PX 650 650W Modular 80+ Platinum PSU/Power Supply
Scan code: LN100769 Manufacturer code: Focus PX-650
£124.99Item overdue since 29 June 2020
Pre order
From £11.22 / month (APR 14.9%)
Monthly Payment: £21.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £124.99
Total inc. interest: £130.14
Monthly Payment: £11.22
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £124.99
Total inc. interest: £134.65
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Seasonic Focus PX-650 650W 80+ Platinum Modular Intel ATX Power Supply

PX=550

Compact, Reliable, Powerful Introducing the Focux PX-650 Modular PSU from seasonic the highly anticipated successor to the FOCUS PLUS series. Boasting an updated fully modular design and a highly efficient 80 Plus Platinum efficiency rating which is surprising when you consider this compact PSU is capable of pushing out 650W in total output with a powerful 12Volt single rail delivering a full 54A output powering even high-end systems with ease. A new cable-free connection design has reduced the chance of errors during manual insertion and also improves output power quality and with the addition of hybrid silent fan control you can now achieve optimal control between performance and silence with the 30% fanless mode which gives you unsurpassed silent performance and extended fan life due to a reduced number of fan rotations.

Cable-Free Connection Design

4K Recording

Breakthrough PCB SolutionPotentially one of the highest rated features of the new PX series power supplies is the inclusion of a copper plate to connect the back panel and PCB rather than cables, this breakthrough solution has reduced the chance of production errors during manual insertion but it has also improves output power quality!

Worried About Noise?

4K Recording

Hybrid Silent Fan ControlsIntroducing, the industry first, Seasonic patented advanced three-phased thermal control. These hybrid silent fan controls has three operational stages: Fanless mode (below 30% load), silent mode and finally cooling mode, This intuitive system is able to ensure you have optimised heat dissipation at all times and also provides extended fan life as the 120mm passive fan is having to make less rotations throughout its lifespan.

Integrated Fan Control Button

back

Switch Fanless Mode On/Off On the rear of the Focus Plus PSUs you will find the fan control button which provides you with further control over the three fan control modes to suit your needs, if the button is pushed in Fanless mode will be switched off meaning that even under light loads the 120mm fan will still spin, its totally up to you!

High Performance Fan Bearings

4K Recording

Fluid Dynamic Fan BearingsHigh performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

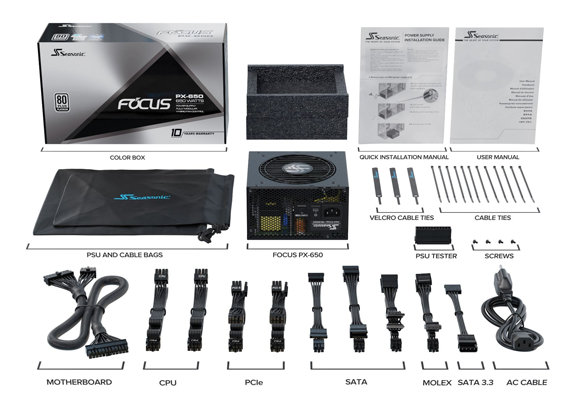

Whats in the Box?

4K Recording
Specifications
Size ATX
Edition Focus PX 650
Wattage 650 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 54 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 54 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin ATX 12V
  • 1 x 4-pin FDD Power
  • 5 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 10 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN100769
Model Number Focus PX-650
GTIN 4711173874652
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Direct
DOA Period:
30 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Seasonic
Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

Reviews
650W Seasonic Focus PX-650 80PLUS Platinum, Single Rail, Fully Modular, 54A, 120mm Fan, ATX PSU is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Excellent PSU - Highly Recommended I decided to spend more on a PSU this time given my last two cheapo ones died within a year. The first two were not up to scratch - insufficient connections and the second (Gigabyte AORUS P750GM) had a constant tapping from the coil, even when the fan was off. Thankfully, this Seasonic Focus PX-650 80PLUS Platinum unit has none of these problems. It is well built, has all the connections and excellent cables you will need, and it is whisper quiet. Top PSU, highly recommended.
