Offer Offer
Scan code: LN90151 Manufacturer code: NP-1PM-E650A-UK

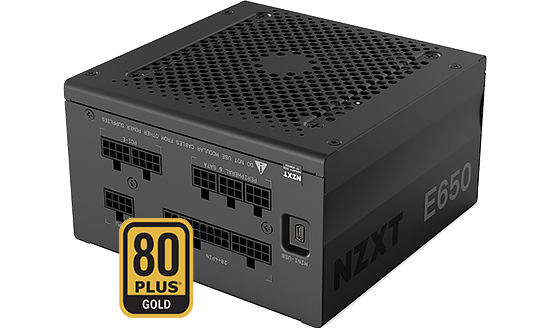

NZXT E-Series 650 Watt 80+ Gold Fully Modular PSU/Power Supply

650W NZXT E-Series E650, Fully Modular, 80PLUS Gold, Single Rail, 54A, 120mm Fan, CAM-Powered, Digital ATX PSU

Free SCAN NZXT Gaming Mouse Mat LIMITED EDITION - LN 92200
Thumbnail 1 : NZXT E-Series 650 Watt 80+ Gold Fully Modular PSU/Power Supply Thumbnail 2 : NZXT E-Series 650 Watt 80+ Gold Fully Modular PSU/Power Supply Thumbnail 3 : NZXT E-Series 650 Watt 80+ Gold Fully Modular PSU/Power Supply Thumbnail 4 : NZXT E-Series 650 Watt 80+ Gold Fully Modular PSU/Power Supply NZXT E-Series 650 Watt 80+ Gold Fully Modular PSU/Power Supply : video thumbnail 1 NZXT E-Series 650 Watt 80+ Gold Fully Modular PSU/Power Supply : video thumbnail 2 Special Offer
Scan code: LN90151 Manufacturer code: NP-1PM-E650A-UK
Was: £79.99
£79.98
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st May 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

E-Series 650 Watt Fully Modular Power Supply from NZXT

nzxt e series 850w psu

ENJOY OPTIMIZED EFFICIENCY The 650W E Series ATX PSU from NZXT has been engineered to provide superb and precise power for your system, which you can monitor in real time to find the best results for you. View digital voltage, uptime, wattage by rail and temperature stats so you can optimize the power you use. Store and track important data over time by utilizing CAM software to get a precise picture of your PSU's health. E Series PSUs are rated at a 80+ Gold level, which means they provide excellent power efficiency, and this PSU can also power multiple GPUs. Inside is a silent 120mm fan, which offers incredible cooling whilst the PSU powers your system. The E Series have been crafted with premium components and is supported by a generous 10-year warranty.

Enjoy Silent Fan Operation while Gaming

e series psu fan

NEVER BE DISTRACTED BY INTERNAL NOISE With the use of a 120mm fan that comes with an FDB (fluid dynamic bearing) fan bearing, the E Series provides silent operation even during the most demanding tasks. When powering loads under 100W, the 0 dB mode provides totally silent operation. Using CAM, optimize and fine-tune the fan curve to suit your system, or choose between the preset, Silent, Performance or Fixed modes.

Track your Power Usage for an Optimized PC

e series monitoring

REAL-TIME POWER DATA The E Series PSU supplies you with real-time wattage indicators for three 12V rails, along with total uptime and internal temperature. Use CAM software to compare CPU and GPU power usage to rated TDP, and you can track historical data. This gives you all the information you need to find what's best for your system and the power you use.

Experience an Easy-to-Install Component

e series fully modular design

FULLY MODULAR CABLE DESIGN This versatile power supply supports single or multi-GPU builds, and the fully modular design means you can use only the connections you need to put together your build. This reduces cable clutter and simplifies your system building/expansion to create an easier and more efficient DIY experience. The cables used with the E Series PSUs are crafted with nylon sleeves to provide you with extra durability and to prevent damage.

E Series 650W Connections

e series connection ports

FLEXIBLE CONNECTION PORTS 1 x 4+4-pin CPU + 12V (EPS) | 6 x 4-pin Molex | 4 x 6+2-pin PCIe | 1 x Mini USB | 8 x SATA

Faultless Reliability Guaranteed

e series gold rating

ENJOY POWER FOR YEARS TO COME The E Series always deliver flawless power, with which it has earned itself the 80 PLUS Gold certification. Built using only Japanese capacitors, this cutting-edge PSU provides long-term durability and reliability, and is also backed by a 10-year limited warranty.

Explore the Intuitive Features of the E Series PSU

e series walkthrough video
Specifications
Size ATX
Edition E-Series 650
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 54 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 54 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 6 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x Mini-USB
  • 8 x SATA
Dimensions 150 x 86 x 150 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN90151
Model Number NP-1PM-E650A-UK
GTIN 5060301694488
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
scan
Loading Please Wait

Please wait . . .

Reviews
650W NZXT E-Series E650, Fully Modular, 80PLUS Gold, Single Rail, 54A, 120mm Fan, CAM-Powered, Digital ATX PSU is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from Don't go near it... I ordered this premium priced PSU and was excited by the features it offered. Working with NZXT's software CAM, it would have fit in perfectly with my current system which comprises a lot of NZXT products. The unit itself looks good, but that's pretty much where the good stuff ends. From an installation point of view, it's terrible. It will ONLY work with the cables supplied, so if they are not long enough (as in my case) for your needs or if you wanted specific colours, you've had it. I tried EVGA and Corsair cables and neither worked. I then noticed that although the unit reports to CAM the amount of hours it has been used for, it doesn't report anything in terms of realtime wattage as it is supposed to. It just shows 0w for everything. I reported this to NZXT immediately, almost 6 weeks a go. Since then, at the rate of 1 email message per day due to timezones (they are based in the US) they have taken my systems details, sent me a new USB cable and have basically stalled for time trying to work out why this is happening, to no conclusion. Today I was finally offered an RMA but only to send this unit back to the US at my own expense - they offer to refund postage via PayPal. So this would leave without a working PC for days if not weeks whilst waiting for a replacement to come from them in the US, after they have recieved mine! That is simply not good enough. I know it's a trivial problem and basically the PSU functions as it supplied power to my PC, but they are charging a premium for features that do not work - at least in my case. The support has been slow, un-helpful and in the end pretty much useless. I love NZXT products and I'm sure this is just a bad egg but be aware. Perhaps they should stick to cases and leave the components to more competenet brands.
Date published: 2018-09-27
