EVGA 650 B5 80 PLUS Bronze 650W Fully Modular Power Supply

650W EVGA 650 B5, 80PLUS Bronze, Fully Modular, EVGA ECO Mode, Single Rail, 54.1A + 12V, FDB Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : EVGA 650 B5 80 PLUS Bronze 650W Fully Modular Power Supply Thumbnail 2 : EVGA 650 B5 80 PLUS Bronze 650W Fully Modular Power Supply Thumbnail 3 : EVGA 650 B5 80 PLUS Bronze 650W Fully Modular Power Supply Thumbnail 4 : EVGA 650 B5 80 PLUS Bronze 650W Fully Modular Power Supply
Scan code: LN107289 Manufacturer code: 220-B5-0650-V3
Order now and get it tomorrow, Thu 7th Jul
£59.99
Add To Basket
Get it Tomorrow, 07 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 7th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

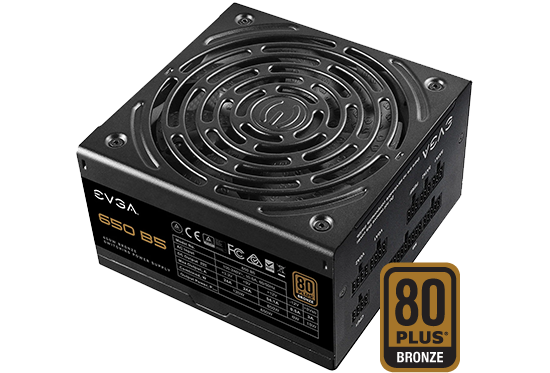

B5 650 Watt 80 PLUS Bronze PSU from EVGA

b5 psu

EASILY POWER THE MOST DEMANDING SYSTEMSIntroducing the EVGA B5 power supplies, the latest 80PLUS Certified Bronze power supplies to carry on the EVGA tradition of reliability, performance, and affordability. The B5 power supplies start with the most important standard for reliability - a Japanese main capacitor. Next, the B5 power supplies provide maximum flexibility by using a small chassis and a fully modular design. The ultra-quiet 135mm Fluid-Dynamic Bearing fan becomes silent when coupled with EVGA ECO mode to turn off the fan in medium to low loads. Last, but not least, the B5 power supplies have a full suite of protections and a 5-year limited warranty that you've come to know and expect from EVGA.

Made to Handle any Demands

HARDWARE PROTECTIONWhile being silent, the B5 also has a large single 12volt rail, providing plenty of power to fuel all of your hardware. A full suite of top tier circuit protections keep you running strong and your hardware safe.

• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• OCP (Over Current Protection)
• OTP (Over Temperature Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)

Features of the EVGA B5

down

SINGLE +12V RAILEnjoy great power output, rail stability and compatibility with the latest hardware. The B5 provides up to 54.4A respectively on a single rail.

up

FULLY MODULARThe Fully Modular design makes installation and removal easier than ever, reduces clutter and enhances case airflow.

down

Fluid-Dynamic Bearing fanA high-quality fluid-dynamic bearing fan gives the B5 an excellent thermal and acoustic profile, along with reliability and a long PSU lifespan.

up

BRONZE Rated EFFICIENCYThe 80 Plus Bronze certification ensures your power supply doesn't waste power. Under typical load the B5 is 85% efficient.

Specifications
Size ATX
Edition 650 B5
Wattage 650 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 54.1 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 54.1 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Adapter
  • 3 x 4-pin Molex
  • 3 x 6+2-pin PCIe
  • 6 x SATA
Dimensions 150 x 86 x 150 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN107289
Model Number 220-B5-0650-V3
GTIN 2003560624806
