Scan code: LN108128 Manufacturer code: DP-DQ650-M-V2L

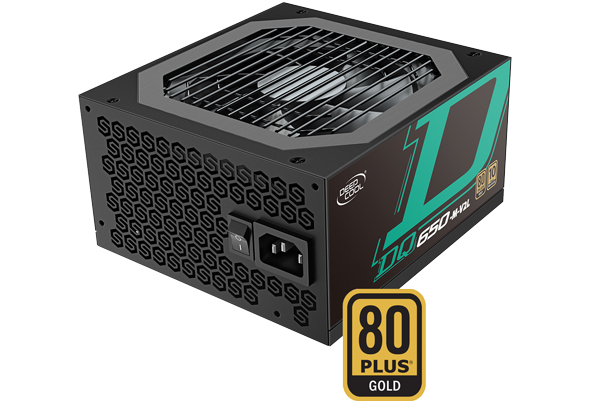

DEEPCOOL DQ Series 650W 80+ Gold Full Modular Power Supply

650W DEEPCOOL DQ650-M-V2L DQ Series Fully Modular, 80PLUS Gold, Single Rail, 54A, 120mm Fan, ATX PSU

Thumbnail 1 : DEEPCOOL DQ Series 650W 80+ Gold Full Modular Power Supply Thumbnail 2 : DEEPCOOL DQ Series 650W 80+ Gold Full Modular Power Supply Thumbnail 3 : DEEPCOOL DQ Series 650W 80+ Gold Full Modular Power Supply Thumbnail 4 : DEEPCOOL DQ Series 650W 80+ Gold Full Modular Power Supply
Scan code: LN108128 Manufacturer code: DP-DQ650-M-V2L
£84.98
Order now and get it tomorrow, Wed 27th Jan
Delivery Options
  • By DPD On 27th Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

650 Watt Deepcool DQ Series Black Fully Modular PSU

850W DEEPCOOL DQ650-M-V2L Black

BUILT FOR TRUE EFFICIENCY The DEEPCOOL DQ650-M-V2L fully modular 650W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ650 power supply unit offers better reliability for your PC system.

Top-Notch Design

design

increased premium quality Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ650-M-V2L delivers improved performance with lower power dissipation, quality, and better thermals to meet your needs.

80 PLUS Gold

80 PLUS® Gold80 PLUS® Gold certified – Up to 87~90% efficient (20~100% Loading)

fan

Silent and High Performance Fan120mm silent fan has temperature control function to keep low noise.

Efficient Power for a High Performance

80 PLUS Gold

80 PLUS® Gold Certified Get all the power you need with a maximum 90.4% efficiency to reduce excess energy consumption and waste heat.

Fully Modular with Cables

warranty

Power For Your PC Easy cable management with flat cables keep your system clean and tidy. The DQ Series also comes with a reliable 10 year warranty.

Included Cables

connectors

X1Main Power Connector 24(20+4)Pin

connectors

X1EPS 12V Connector 8(4+4)Pin

connectors

X1EPS 12V Connector (6+2)Pin x2

connectors

X1SATA x4

connectors

X24Pin Peripheral x2 & SATA x2

Specifications
Size ATX
Edition DQ650-M-V2L
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 54 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 648 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V No
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 86 x 160 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN108128
Model Number DP-DQ650-M-V2L
GTIN 6933412798910
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
