Scan code: LN96647 Manufacturer code: MPY-6501-AFAAGV-UK

Cooler Master V-Series 650 Watt Fully Modular 80+ Gold PSU/Power Supply

650W Cooler Master V-Series V650 Gold, Full Modular, 80PLUS Gold, Single Rail, 54A, 135mm Fan, ATX PSU

Thumbnail 1 : Cooler Master V-Series 650 Watt Fully Modular 80+ Gold PSU/Power Supply Thumbnail 2 : Cooler Master V-Series 650 Watt Fully Modular 80+ Gold PSU/Power Supply Thumbnail 3 : Cooler Master V-Series 650 Watt Fully Modular 80+ Gold PSU/Power Supply Thumbnail 4 : Cooler Master V-Series 650 Watt Fully Modular 80+ Gold PSU/Power Supply
Scan code: LN96647 Manufacturer code: MPY-6501-AFAAGV-UK
£104.99
From £9.43 / month (APR 14.9%)
Monthly Payment: £18.22
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £109.30
Monthly Payment: £9.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £113.10
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Aug 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

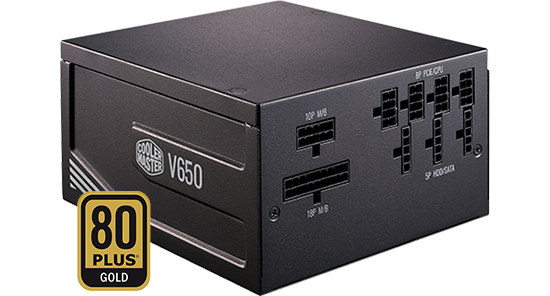

V-Series 650 Watt Fully Modular Gold Power Supply by Cooler Master

cooler master v series gold 650w psu

MADE FOR EVERY TYPE OF USER This V Gold series power supply delivers an incredible source of power up to 650 watts. With an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation and a hardware based hybrid switch. It utilizes a 135mm FDB fan, with 16AWG PCIe high efficiency cables, and is all backed by a ten year warranty. Cooler Master have brought together numerous innovations and improvements from past products to craft a PSU that meets any enthusiasts needs. Featuring 100% Japanese capacitors, a half-bridge LLC resonant converter, and DC-DC circuitry, the V Gold series makes for a versatile power supply that can keep up with the most demanding of tasks.

Incredible Cooling that Never Fails to Keep Up

fluid dynamic fan

135mm FLUID DYNAMIC FAN BEARING The V Gold PSU works efficiently to keep cool under pressure. It utilizes a fluid dynamic fan bearing that creates less friction, which works well for low RPM operations. This innovative technology, combined with a 135mm fan keeps your PSU fan running smoothly and more efficiently for longer, keeping noise to a minimum whilst extending the lifespan of your PSU.

Enjoy Total Control Over Your Cooling

hybrid button

DEDICATED HYBRID SWITCH When you're completing less demanding tasks, the semi-fanless mode will keep your PSU completely silent when under 40% maximum load. The integrated hybrid switch allows you to disengage fanless mode at any time with the press of a button for testing, debugging or simply achieving maximum cooling at all times.

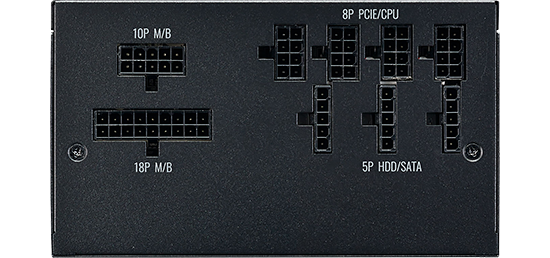

V Series Gold 650W Connections

psu ports

INCREDIBLE HEAT RESISTANT CABLING This superior PSU comes with 16AWG fully modular PCI-e cables. These are thicker than industry standard 18AWG cables, meaning less heat resistance during use. This reduction in heat resistance improves efficiency and stability so your components can get the most out of that 80 PLUS Gold rating, making your entire system safer and cooler.

1 x 4+4-pin CPU +12V (EPS) | 1 x 4-pin FDD Power | 4 x 4-pin Molex
4 x 6+2-pin PCIe | 1 x 8-pin CPU +12V (EPS) | 8 x SATA

80 PLUS Gold Certified

efficiency gold rating

GREATER POWER FOR A LESSER COST The efficiency of your PSU is an important factor as it directly affects your systems performance and your power bill. The higher a PSU's efficiency is, the less power it needs to power your system. The V Gold provides an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.

Specifications
Size ATX
Edition V-Series Gold
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 54 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 54 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 4 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 8 x SATA
Dimensions 150 x 86 x 160 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN96647
Model Number MPY-6501-AFAAGV-UK
GTIN 4719512068687
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
COOLER MASTER
Telephone:
01908 226655
