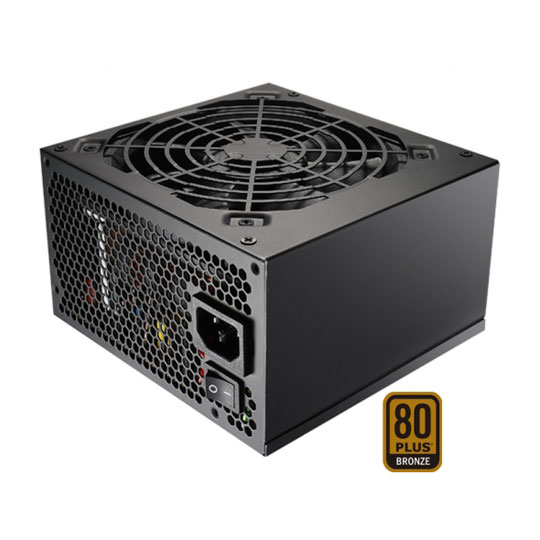

The Cooler Master GX Series of power supplies feature a single highly robust 12 V rail, proficiently delivering power to the most demanding componentsincluding the processor, drives, cooling fans and even the most intense dual graphic cards. Including a double-layer EMI Filter, 120mm fan with intelligent speed control and an active PFC/PWM combo controller for increased efficiency, the GX Series will keep the power in your hands.
Single 12 V Power Rail
Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading.
Double-Layer EMI Filter
Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.
ATX12V v 2.3 and EPS version 2.91 compliant.
Intelligent Fan Speed Control
Speed control makes the 120 mm fan adept for any user’s circumstances and need.
Active PFC+ PWM Combo Controller
Integrating this active controller will increase the efficiency of any computer, making PFC higher than 99%.
Multiple Protection Design
Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP) and Short Circuit Protection (SCP).
Massive Bulk Capacitor
Producing hold times >17ms upon full loading.
- Adeptly holding power for minimal loss in the 5V standby voltage so the system is promptly up and ready from power on or sleep modes
- Highly efficient design on par with 80Plus requirements (85% typical)
- Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
- High reliability with an MBTF of at least 100,000 hours of use.
- NVIDIA SLI-Ready Certified guarantees enough ample power and up-to date connectors for SLI graphics cards.
- Five Year Warranty. Features Model RS-650-ACAA-D3
Type Intel Form Factor ATX 12V V2.31
Dimension (W / H / D) 150 x 140 x 86mm
5.9 x 5.5 x 3.4 inch
Input Voltage 90-264Vac (Auto Range)
Input Current [email protected], [email protected]
Input Frequency Range 47-63Hz
PFC Active PFC (>0.9)
Power Good Signal 100~500ms
Hold Up Time >17ms
Efficiency 85% typical
MTBF >100,000 hours
Protection OVP / UVP / OPP / OTP / SCP
Output Capacity 650W
Max. Output Capacity 780W
Operation Temperature 0~40°C (Nominal Input Voltage)
Regulatory TUV / CE / UL / FCC / BSMI / GOST / C-tick / CCC / KCC
Certifications 80 PLUS
Connector 20+4 Pin MB x 1
4+4 Pin CPU 12V x 1
6+2 Pin PCI-e x 2
SATA x 6
4 Pin Peripherial x 3
4 Pin Floppy x 1
