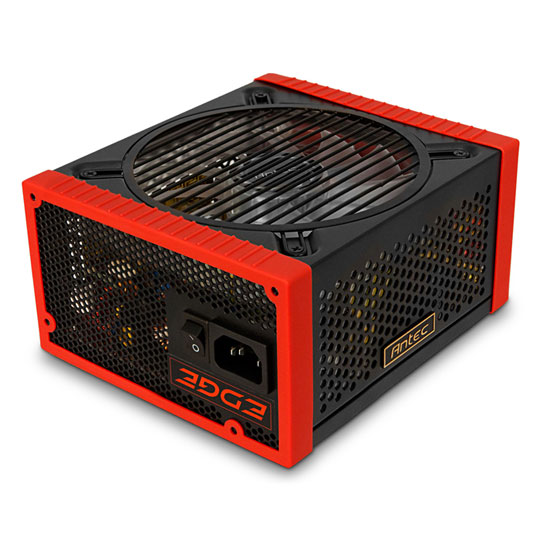

Antec Edge 650W Modular Power Supply

650W Antec Edge 80PLUS Gold Certified Fully Modular PSU, 13.5CM FDB, Fan Jap Caps 5 Year Warranty

Antec
Scan code: LN59920 Manufacturer code: 0-761345-05066-1 Request call
£99.98
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End
Delivery options £11.50 By DPD On 31st Mar 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Antec’s EDGE series is the pinnacle of power supplies. EDGE is fully modular with a revolutionary 18+10-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS® GOLD & ErP Lot 6: 2013 certified, operating up to 92% efficient, you can reduce your electricity bill by up to 20% when compared to many other power supplies. EDGE’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. All cables are darkened and also flat (except MBU cable) to become Flat Stealth Wires and are thus nearly invisible in your chassis. 2 High Current Rails and a ~99% +12V output ratio maximize EDGE’s capabilities to power the latest CPU’s & GPU’s. CircuitShield™ makes EDGE safe and reliable in any environment with its 7 industrial-grade protections. Backed by a 5 year warranty and lifetime global 24/7 support, EDGE embodies everything a power supply can accomplish today Features • 650W Continuous Power - Guaranteed 650W of Continuous Power from Antec
• 80 PLUS® GOLD certified - Up to 92% efficient, to reduce your electricity bill
• Save Energy and Money - Reduce your electricity bill by up to 20%
• 135 mm LED FDB Silence - Whisper-quiet high-quality LED fluid dynamic bearing bearing fan with long lifetime
• Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
• 28(18+10)-pin MBU socket - For possible future MBU connectors
• 16-pin Socket - Industry-leading 16-pin socket double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
• High Current Rails - 2 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
• 98% +12V - Output for maximum CPU & GPU support
• Multi PCI-E - 2 PCI-E connectors for multiple GPU support
• CircuitShield™ - Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), No Load Operation (NLO)
• Japanese Heavy-Duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
• PhaseWave™ Design - A server-class LLC design with a synchronous rectification based on a DC-DC topology
• Flat Stealth Wires - Flat and darkened wires for minimal visibility in chassis(except MBU)
• AQ5 - Antec Quality 5-year warranty and lifetime global 24/7 support
Specifications
Specifications
Size ATX
Edition Edge
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Dual (2) Rail
Rail 1 +12V 35 A
Rail 2 +12V 35 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 1 x FDD Power
  • 9 x SATA
Dimensions 150 x 86 x 170 (WxHxD)
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
Customers also bought
Reviews
650W Antec Edge 80PLUS Gold Certified Fully Modular PSU, 13.5CM FDB, Fan Jap Caps 5 Year Warranty is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Power feels good... My Name Brand power supply gave up the ghost after five years of labour - just out of warranty, wouldn't-you-know! Investigating the reason for it's demise, I found it was liberally sprinkled with capacitors from a manufacturer not noted for the reliability of its' components, so I struck that particular Name Brand off my Approved List of Manufacturers (I don't really have one, but it sounds good), and set about a search for a successor. Many comparisons ensued; do I want 'Gold' or 'Platinum'? Is 'Certified Gold' as good as a mere 'Platinum? I've no idea. So, after stripping away all that - expensive - marketing nonsense, I settled on the Antec 650 watt, fully modular unit. And I'm glad - thus far - I did. It's overkill for the board (Asus x79 pro, Intel I7 processor) and video card (Nvidia GTX 660ti), but it'll handle any upgrades I may throw at it, with ease. All-in-all, a nicely presented, fully modular (much better than hard-wired) power supply. The cooling fan for the unit is of the 'permanently-on' type. This is no bad thing - it is silent in use, and will help, in my opinion, to keep the unit at a lower thermal equilibrium than is the case for the 'on-demand' fan mode, to be found in other PSU's. In conclusion, a nice power supply which simply does it's job. That's all I ask.
Date published: 2016-11-24
Rated 5 out of 5 by from Very good power supply Im glad to have a very good power supply looks nice, work quiet and what is important it's solid. I give a 5/5 because price is very good for this specification.
Date published: 2015-09-14
