Thermaltake 600W SMART DPS G Digital Power Supply/PSU
600W ThermalTake SMART DPS G, 80PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail 46A +12V, 1x120mm Fan, ATX
By DPD On 25th Sep 2018
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
What is Smart Power Management (SPM)?
Thermaltake would like to raise the awareness on global warming issue to all PC DIY/ PC users through Smart Power Management (SPM) platform. SPM is a cloud computing platform that tracks and analyzes PC electricity consumption, allows user to observe and learn their own energy consumption whereby alter their behavior to achieve the goal of reducing CO2 emission together to contribute on slowing global warming.
Smart Power Management (SPM)

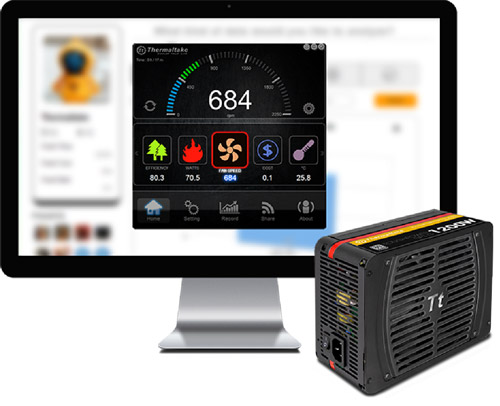

Out of all the PSU monitoring software applications on the market, Thermaltake DPS G Smart Power Management (SPM) is the most powerful, flexible, universal and easy-to-use monitoring tool that provides digital solution together with PC software and mobile application.

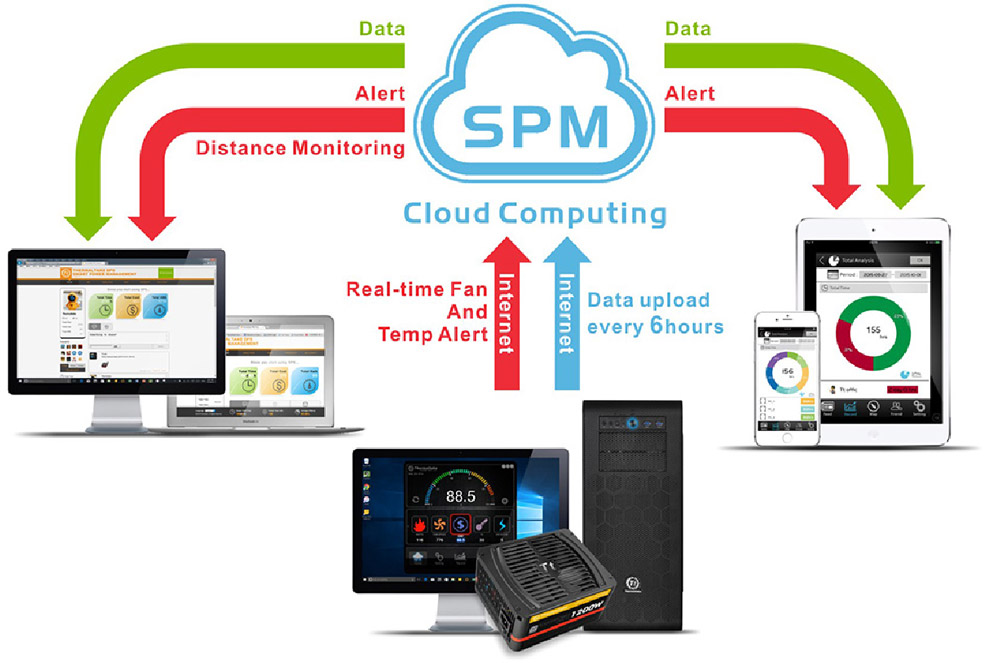

On the basis of DPS G Smart Power Management Cloud 1.0, users can access the PSU/VGA/CPU data via PC or mobile devices. By uploading the data onto the smart power management cloud every 6 hours, users are capable of monitoring multiple PSUs via their mobile devices and achieving IT cost reduction while monitoring the PSU. Additionally, users are capable of accessing data as well as doing PSU management on different devices – PC or mobile devices – anytime anywhere. *
DPS G Smart Power Management Cloud 1.0: FEED vs. ME
Share your PSU data/status on “FEED” with friends and check your own messages from your friends. Also, you can find Thermaltake official news releases and product information on the “FEED” page.
Click on “ME”, users can monitor the status of PSU/VGA/CPU (data will be uploaded per minute), including efficiency, fan speed, voltage, current, etc. Zoom in to see more details of the graph, there is no limit on the number of PSUs being monitored at any one time.*
DPS G Smart Power Management Cloud 1.0: Analysis
Click “Analysis”, users can choose the specific PSU they want to monitor, or click “Select All” to see all the digital power supplies. Detailed information such as total time, total cost, and KWh can be monitored at once. Besides line chart, users can also see the data in pie chart and bar chart.
DPS G Smart Power Management Cloud 1.0: Warning Alert
Our real-time warning alert will be pushed to DPS G Smart Power Management Cloud 1.0 immediately once the fan fails, PSU temperature is overheated (over 140?/60?), or voltage (over/under 5% of normal level) operate abnormally.
DPS G PC APP 2.0: CPU and VGA Monitoring
DPS G PC App 2.0 enables users to digitally monitor the key parameters of the CPU and VGA, including efficiency, wattage, voltage and temperature while using computer.*
DPS G PC APP 2.0: Warning Alert
DPS G PC APP 2.0 offers real-time warning alert when the fan speed, temperature (over 140?/60?), and voltage (over/under 5% of normal level) operate abnormally.
DPS G Mobile APP 1.0: Single Comparison
Users are capable of monitoring single or multiple PSUs anytime anywhere while using DPS G Mobile APP 1.0.
Click “Single Comparison”, you can freely choose which PSU you want to monitor in detail such as efficiency, fan speed, voltage, current and so on, or use “Select All” to see all the data of digital power supplies. After you select the data, the DPS G Mobile APP 1.0 shows how data change during a period of time.
DPS G Mobile APP 1.0: Total Analysis
Users are capable of monitoring single or multiple PSUs while using DPS G Mobile APP 1.0.
Click “Total Analysis”, users can see the selected information of the PSU, including Total Time, Total Cost, and KWh. Percentages of each item will be showed clearly, either in line chart or pie chart.
DPS G Mobile APP 1.0: Warning Alert
Our real-time warning alert will be pushed to your mobile devices immediately once the fan fails, PSU temperature is overheated (over 140?/60?), or voltage (over/under 5% of normal level) operate abnormally.
Core Component: MCU
Smart DPS G Series comes with a 32Bit Microcontroller Unit (MCU) from Microchip Technology. The 32Bit Microcontroller Unit is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.
80 PLUS Bronze-certified and Haswell-ready
Smart DPS G Power Supply with DPS G software delivers up to 87% efficiency under real-world load conditions, promising the lowest power losses. Additionally, Smart DPS G Bronze Series has been optimized to work with Intel’s new, fourth-generation Haswell processors to achieve maximum energy savings.
Flat Modular Cables
Smart DPS G Bronze Series is semi-modular power supply that offers cable selection for users while powering the system at an advantageous voltage. All new low-profile flat modular cables enhance the airflow as well as improve the thermal performance of the chassis. Moreover, flat cables are softer which make cable routing easier to install.
High Quality Japanese Main Capacitors
The Smart DPS G Bronze Series features Japanese main capacitors, which greatly improves the durability and offers the highest stability and reliability. No more capacitor explosion and leakage.
High Current Single +12V Rail
Smart DPS G Bronze Series is equipped with a powerful single +12V rail. Features • 80 PLUS Bronze-certified and Haswell-ready.
• Flat Modular Cables.
• High Quality Japanese Main Capacitors.
• High Current Single +12V Rail.
|Edition||SMART DPS G|
|80 PLUS Certification||80 PLUS Bronze|
|Max. Efficiency||87 %|
|Fans||1 x 120mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||46 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||N/A|
|Dimensions||150 x 86 x 140 (WxHxD)|
