Scan code: LN88121 Manufacturer code: ACP-I600BR

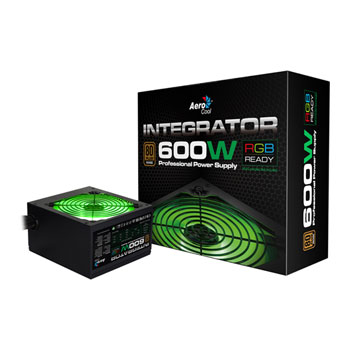

Aerocool Integrator 600W 80+ RGB PSU 12cm Fan

600W Aerocool Integrator RGB PSU 80PLUS Bronze 120mm Quiet Fan

Thumbnail 1 : Aerocool Integrator 600W 80+ RGB PSU 12cm Fan
Aerocool Integrator 600W 80+ RGB PSU 12cm Fan : image 1
Scan code: LN88121 Manufacturer code: ACP-I600BR
£38.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Jul 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Aerocool launch a classic Integrator power supply series built with an "RGB Ready" cooling fan. Access 16.8 million colours and three LED modes with P7-S1 (Project7-Software1). The RGB fan on PSU can be controlled through the P7-Hub (P7-H1) and motherboards including “Asus Aura”, “Gigabyte RGB Fusion” and “MSI Mystic Light Sync”. 7 Sata connectors for Raid storage, up to 85% efficiency for power saving and single +12V rail for extreme CPU/GPU power consumption. Good DC quality with lower ripple and noise and fully protectors functions to guard your components in your system. No more headaches when installing with the longer 20 + 4 Pin and 4 + 4 Pin up to 550mm.

Key Features

RGB fan on PSU can be controlled through P7-Hub (P7-H1) and motherboard including “Asus Aura”, “Gigabyte RGB Fusion”, and “MSI Mystic Light Sync”.
Elegant Black PSU casing with Fully Black Mesh cables.
Compliant with ATX12V Ver.2.4.
Fully compatible with the latest generation Intel Core series processors starting from the 4th Generation CPU Intel ‘Haswell’ platform’s C6/C7 power saving mode.
Up to 85%+ efficiency with official 80 Plus Bronze certificate.
Single 12V rail for high compatibility and extreme high current output.
20+4P and CPU 4+4P cable length up to 550mm - easy reach to all components.
All DC cables with mesh sleeving for optimised airflow and management.
Two PCIe 6+2 Pin connector for mid-range graphic cards.
Up to 7 Sata connectors supports multiple of hard drives.
Complete protections with OVP/UVP/OPP/SCP/SIP.
Safety and EMC certified by CE and TUV.
ECO friendly with RoHS and Erp2014 directives. Features Dimensions: 150mm x 85mm x 140mm (W x H x D)
Input Voltage: 230 VAC
Input Current: 4.5A
Input Frequency Range: 47-53Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-500 ms
Hold Up Time: >17ms
Efficiency: >82%
MTBF: > 100,000 Hours
Protection: OVP / UVP / OPP / OTP / SCP / SIP
Power: 600W
Operation Temperature: 0-40°C
Safety: CE/FCC/TUV/CB
Cooling: 12cm Fan
Noise: < 26 dBA
80 Plus Certified: Yes - 80 Plus Bronze

General Specifications


Manufacturer Part Number: ACP-I600BR
EAN Number: 4713105968019
Has Mains Plug: Yes
Colour: Black
What's In The Box: PSU
UK Power Cord
Screws
Unit (Product) Dimensions (mm): 150mm x 85mm x 140mm (W x H x D)
Packaging Dimensions (mm): 248mm x 211mm x 95mm (W x H x D)
Net Weight (KGs): 1.8 KGs
Gross Weight (KGs): 2 KGs
Specifications
Size
Edition
Wattage
80 PLUS Certification
Max. Efficiency
Cooling
Fans
Internal +12V Rails
Rail 1 +12V N/A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular No
Modularity
SLI/CrossFire No
EPS 12V No
Motherboard Connector
Connectors
Dimensions
Package Type
Warranty
