Scan code: LN88120 Manufacturer code: ACP-I600MD

Aerocool Integrator 600W 80+ Semi Modular PSU 12cm Fan

600W Aerocool Integrator Hybrid Modular PSU 80PLUS Bronze 120mm Quiet Fan

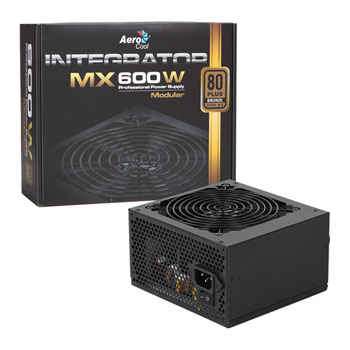

Thumbnail 1 : Aerocool Integrator 600W 80+ Semi Modular PSU 12cm Fan
Aerocool Integrator 600W 80+ Semi Modular PSU 12cm Fan : image 1
Scan code: LN88120 Manufacturer code: ACP-I600MD
£41.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th Sep 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Aerocool’s Integrator MX series is the latest high-efficient Semi-Modular power supply. The most valuable and suitable PC energy component for gamers and system integrators and it features a 12cm thermal control silent fan hich gives the user clean DC quality with low ripple noise and a number of connectors with cable mesh.

Key Features

Semi-modular cable management by user’s system configuration.
Elegant Black PSU casing with Fully Black Mesh cables.
Compliant with ATX12V Ver.2.4.
Fully compatible with the latest generation Intel Core series processors starting from the 4th Generation CPU Intel ‘Haswell’ platform’s C6/C7 power saving mode.
Up to 88%+ efficiency with official 80Plus 230V EU Bronze certificate.
Single 12V rail for high compatibility and extreme high current output.
20 + 4 Pin and CPU 4 + 4 Pin cable length up to 550mm - easy reach to all components.
Two PCIe 6 + 2 Pin connectors for mid-range graphic cards.
Up to 7 SATA connectors supports multiple hard drives.
Complete protections with OVP / UVP / OPP / SCP / SIP.
Safety and EMC certified by CE and TUV.
ECO friendly with RoHS and Erp2014 directives. Features Dimensions: 150mm x 85mm x 140mm (W x H x D)
Input Voltage: 230 VAC
Input Current: 4.5A
Input Frequency Range: 47-53Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-500 ms
Hold Up Time: >17ms
Efficiency: >85%
MTBF: > 100,000 Hours
Protection: OVP / UVP / OPP / OTP / SCP / SIP
Power: 600W
Operation Temperature: 0-40°C
Safety: CE/FCC/TUV/CB
Cooling: 12cm Fan
Noise: < 26 dBA
80 Plus Certified: Yes - 80 Plus Bronze

General Specifications


Manufacturer Part Number: ACP-I600MD
EAN Number: 4713105968538
Has Mains Plug: Yes
Colour: Black
What's In The Box: PSU
User Manual
UK Power Cord
Screws
Unit (Product) Dimensions (mm): 150mm x 85mm x 140mm (W x H x D)
Packaging Dimensions (mm): 248mm x 211mm x 95mm (W x H x D)
Net Weight (KGs): 1.6 KGs
Gross Weight (KGs): 1.8 KGs
Specifications
Size
Edition
Wattage
80 PLUS Certification
Max. Efficiency
Cooling
Fans
Internal +12V Rails
Rail 1 +12V N/A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular No
Modularity
SLI/CrossFire No
EPS 12V No
Motherboard Connector
Connectors
Dimensions
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
