Fractal Design ION+ 560P 560 Watt Fully Modular Platinum PSU/Power Supply
560W Fractal Design Ion+ 560P, Full Modular, 80PLUS Platinum, SLI/CrossFire, Single Rail, 46.6A, 140mm Fan, ATX PSU
By DPD On 28th Jan
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

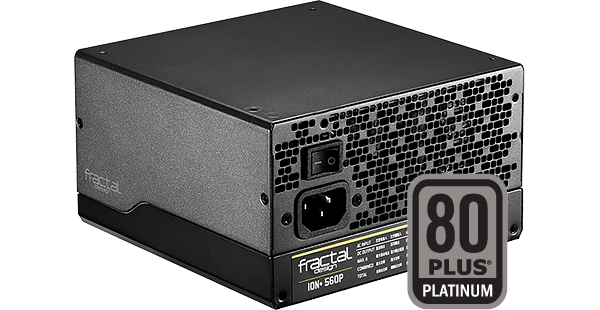

ION+ Platinum 560P - 560 Watt Power Supply from Fractal Design

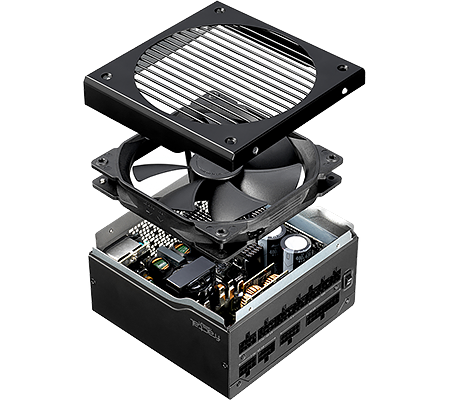

UTILIZE FULLY MODULAR GREATNESS Enjoy a power supply that provides excellent performance in a fully modular design with the ION+ Platinum by Fractal Design. This impressive power supply unit performs in complete silence and offers great cable flexibility so you can install it into your system with complete ease. Enjoy incredible output quality and industry-leading 80 PLUS® Platinum efficiency. Utilize the semi-passive Zero RPM mode which makes your PSU completely silent under light workloads, and with a specially designed 140mm fan with FDB bearings to keep up the silence under more demanding tasks. Easily install your PSU with the UltraFlex cabling which has a high strand count wire and special insulation bends to make twisting cables easier and cable routing a breeze. The ION+ PSU utilizes premium Japanese 105°C capacitors to provide excellent reliability, and the PSU only takes up 150mm depth-wise so you can place it in compact spaces with additional room for your cables. If all this isn't enough, the ION+ offers a wealth of features to keep your PSU protected, and comes with a generous ten-year warranty to give you support for years and years.
Intricately Designed for Silent Performance

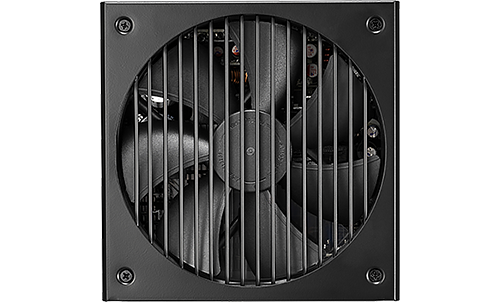

CUSTOM-TAILORED FAN FOR SILENT OPERATION The ION+ uses a 140mm Dynamic Series fan which works to minimize noise whilst maximizing lifespan with true FDB bearings. You can select a Zero RPM mode which allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling.
Made to Last for Years and Years
WITH EXTENSIVE PROTECTIVE FEATURES The ION+ PSU uses premium Japanese 105°C capacitors to give you incredible durability and reliability. It also utilizes a wealth of protective features such as Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection. All these extensive safeguarding features work to keep your PSU working reliably for longer.

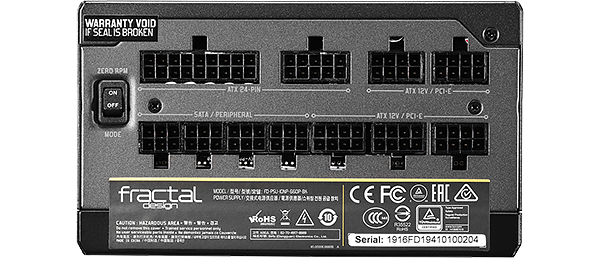

ION+ 560P Connection Ports
VAST connectivity options 1 x 4+4-pin ATX 12V | 4 x 4-pin Molex | 6 x 6+2-pin PCIe | 6 x SATA
Incredible Efficiency Guaranteed for Years
80 PLUS PLATINUM & WARRANTY The ION+ PSU has an 80 PLUS® Platinum Efficiency rating which means your PSU supplies optimized electrical performance and reduced heat generation. Fractal Design also offers a generous ten-year warranty with your ION+ PSU so you'll be supported for years to come.
Discover more About the Power of your the ION+ Platinum
|80 PLUS Certification||80 PLUS Platinum|
|Max. Efficiency (at 230Vac)|
|Fans||1 x 140mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||46.6 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||46.6 A|
|Dimensions||150 x 86 x 150 mm (WxHxD)|
