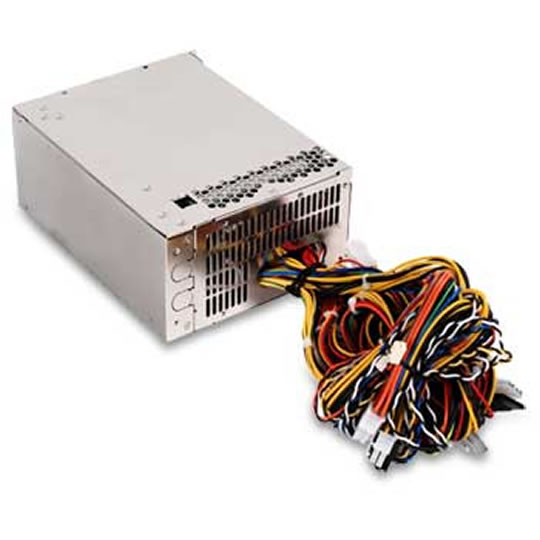

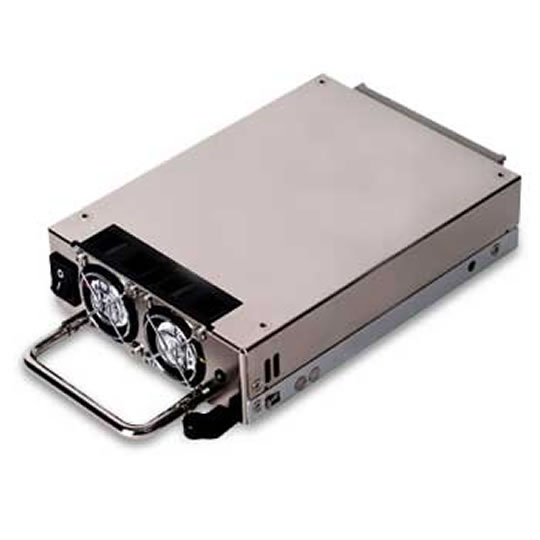

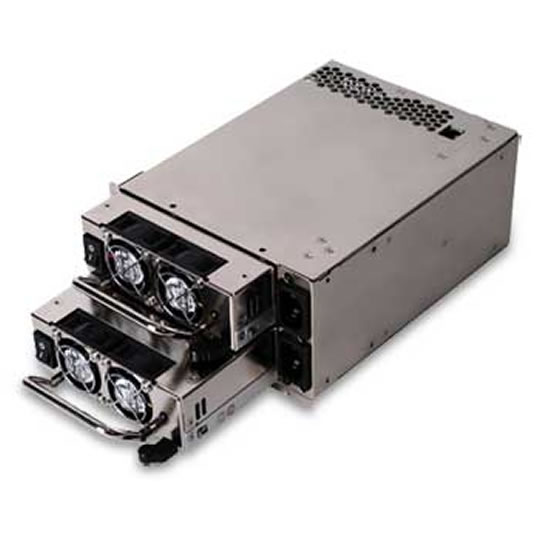

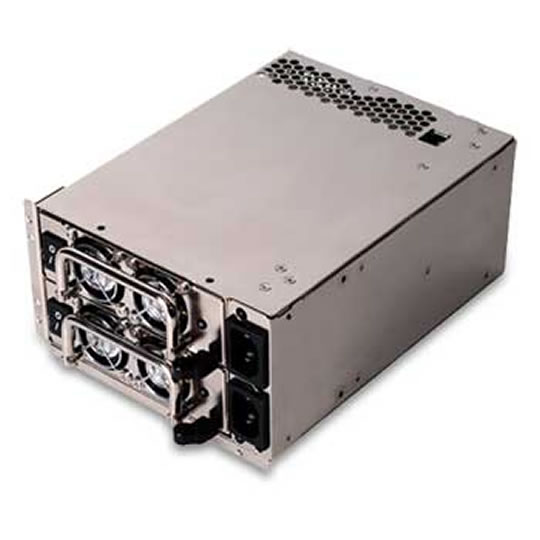

550W Mini redundant Gemini ST55GF Power Supply/PSU from Silverstone

550W Silverstone Gemini ST55GF, Single Rail, 41A +12V, 2x 40mm Fan, PS/2 Mini redundant, 50 dBA

Silverstone
Scan code: LN28330 Manufacturer code: ST55GF Request call
£334.49Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview For users with mission-critical systems or file servers, nothing is more important than a power supply with always up reliability and redundancy. With the pervious venerable Gemini ST46GF model as the starting point, SilverStone ST55GF improves every aspect of the former from specification to user impression. By combining proven industrial grade components and a focus on performance, the amazing dual 550W independent power packs stowed inside a PS/2 frame enable the possibility to enjoy the bullet-proof security of a 24/7 server in just about any case and any system! Features • 550W + 550W PS/2 redundant power supply
• Hot swappable
• Industry-leading reliability
• Durable zinc-plated surface
• Convenient pull-out handle bars
• Over Current Protection.
• Over Power Protection.
• Under Voltage Protection.
• Over Voltage Protection.
• Short Circuit Protection.
• Dual 40 mm Fan
• Noise Level 50 dBA
• Weight 4.75 kg
Specifications
Specifications
Size PS/2
Edition
Wattage 550 W
80 PLUS Certification Uncertified
Max. Efficiency 68 %
Cooling Fan
Fans 2 x 40mm
Internal +12V Rails Single Rail
Rail 1 +12V 41 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 41 A
Modular No
Modularity
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 24 Pin
Connectors
  • 1 x 4pin ATX 12V
  • 8 x 4pin Molex
  • 1 x 6pin PCI-E Power
  • 1 x 8pin CPU +12V
  • 2 x FDD Power
  • 4 x SATA Power
Dimensions 150 x 85 x 200 mm (WxHxD)
