Corsair TX-M Series 550W 80+ Gold Power Supply

550W Corsair TX-M Series TX550M, Semi Modular, 80PLUS Gold, Single Rail, 43A, 120mm Fan, ATX PSU

Thumbnail 1 : Corsair TX-M Series 550W 80+ Gold Power Supply Thumbnail 2 : Corsair TX-M Series 550W 80+ Gold Power Supply Thumbnail 3 : Corsair TX-M Series 550W 80+ Gold Power Supply Thumbnail 4 : Corsair TX-M Series 550W 80+ Gold Power Supply
Scan code: LN117789 Manufacturer code: CP-9020228-UK
£71.99
Order now and get it tomorrow, Thu 21st Oct
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

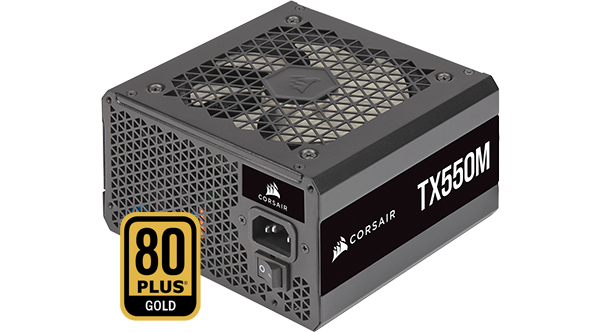

TX-M Series 550W 80+ Gold Power Supply from Corsair

Corsair TX-M PSU

BRING TRUE POWER TO YOUR PC CORSAIR TX-M Series Low-Noise ATX Power Supplies offer reliable, low-noise operation with 80 PLUS Gold efficiency certification, semi-modular cabling and a low-noise rifle bearing fan. With dual EPS12V cables and two/four PCIe 8-pin power connectors, TX-M PSUs have all the connections needed to power today’s most demanding PC upgrades. Japanese 105°C-rated capacitors deliver excellent electrical performance and reliability, supported by a seven-year warranty. Resonant LLC topology ensures clean, consistent power and reduced coil whine. With a compact design allowing for great flexibility in multiple build configurations, TXM Series power supplies offer tens of thousands of hours of dependable, low-noise power.

550Watts

80 Plus GoldEfficiency Rating

ATXForm Factor

Efficiency has Never been Better

back

80 PLUS GOLD-CERTIFIED EFFICIENCYThe super-efficient operation of the TX Series semi-modular results in lower energy use and lower operating costs. Since it generates less heat, the fan doesn’t need to work as hard, and you’ll enjoy near silent operation.

Installation made Easy

back

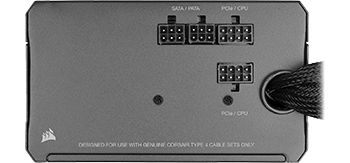

MODULAR CABLING WITH MARKED CONNECTORSThe flat, sleeved black cables are semi-modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

Built to Last

back

EACH ONE MADE PERFECTEvery CORSAIR power supply is designed by Corsair's California engineering team and built to exact specifications. The same care that goes into the design and testing of their renowned high-power enthusiast power supplies also goes into the TX-M Series semi-modular, because you need confidence and reliability regardless of your build budget.

Specifications
Size ATX
Edition TX550M
Wattage 550 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 92 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 43 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 43 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 3 x SATA
Dimensions 140 x 86 x 150 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN117789
Model Number CP-9020228-UK
GTIN 2124040721
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
84 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
84 months
