Scan code: LN104917 Manufacturer code: CP-9020210-UK

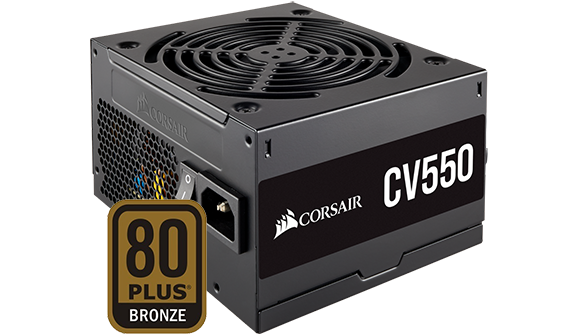

Corsair CV Series 550W 80+ Bronze Power Supply/PSU

550W Corsair CV Series CV550, Fully Wired, 80PLUS Bronze, Single Rail, 44A, 120mm Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : Corsair CV Series 550W 80+ Bronze Power Supply/PSU Thumbnail 2 : Corsair CV Series 550W 80+ Bronze Power Supply/PSU Thumbnail 3 : Corsair CV Series 550W 80+ Bronze Power Supply/PSU Thumbnail 4 : Corsair CV Series 550W 80+ Bronze Power Supply/PSU
Scan code: LN104917 Manufacturer code: CP-9020210-UK
£44.99
Add To Basket
In stock
Order now and receive it by Monday, 24th January
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

CV Series™ CV550 - 550 Watt Power Supply from Corsair

corsair cv series 450 psu

QUIET AND DEPENDABLE 80 PLUS BRONZE EFFICIENCY CORSAIR's CV550 power supply is perfect for powering your new home or office computer, with an 80 PLUS Bronze efficiency rating which guarantees to flawlessly deliver full wattage to your system. The CV PSU houses a 120mm thermally controlled cooling fan that offers both cooling and low noise. The compact casing makes the PSU a breeze to install into any modern PC case, with black sleeved cables to easily connect everything together. The black powder-coated casing allows the PSU to seamlessly fit into your PC's theme. All this is supported by a comprehensive three-year CORSAIR warranty, to keep you going for years to come.

Ultra Efficient Performance

80 PLUS CERTIFICATION CORSAIR's CV series is 80 PLUS Bronze certified, delivering up to 88% efficiency for less heat and lower energy costs.

bronze certified

Power that Never Dwindles

wattage

PERFECT OUTPUT WATTAGE Like every CORSAIR power supply, the CV Series does exactly what you expect it to do. It delivers continuous power at full capacity, no matter which wattage variant you decide for your PC.

Working when You Need it Most

fan

LOW-NOISE OPERATION An integrated 120mm thermally controlled fan provides excellent cooling and low-noise. It works by only spinning at high speed when your PSU is under demanding workloads, then slowing down for quieter operation during lower loads.

Installation has Never been Easier

design

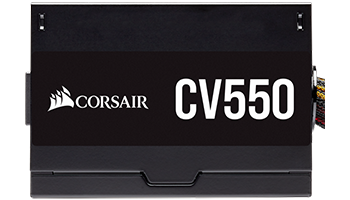

EASY-FIT DESIGN Enjoy a compact 125mm long design that grants you the ability to install the CV PSU in almost any modern PC case.

Complement your PC's Style

stealth

STEALTH MODE With black sleeved cables and a black powder-coated casing, the CV Series PSU flawlessly fits and blends in to the rest of your systems style.

*CV550 Pictured

Top-Notch Performance for Years to Come

warranty

GUARANTEED RELIABILITY With your CV Series PSU comes a three-year warranty backed by the CORSAIR global technical support team.

Specifications
Size ATX
Edition CV550
Wattage 550 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 88 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 44 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V No
Motherboard Connector 24-pin
Connectors
  • 1 x 4+4-pin ATX 12V
  • 2 x 6+2-pin PCIe
  • 7 x SATA
Dimensions 150 x 86 x 125 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN104917
Model Number CP-9020210-UK
GTIN 1944982900009
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 47 47
Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

550W Corsair CV Series CV550, Fully Wired, 80PLUS Bronze, Single Rail, 44A, 120mm Fan, ATX PSU is rated 4.0 out of 5 by 5.
Rated 4 out of 5 by from Solid PSU, relatively few issues. When installing this PSU, the wires were bulky so I recommend buying some cable management equipment - namely cable ties / zipties, cable sheaths, electrical tape, etc. I installed it, went in fine, but had a few issues with it fitting into my case, although my case was fairly cheap and poorly made so if you're going to buy this, make sure you have a big case with lots of room for all of these bulky cables. The one issue I had is the cable that comes with it - it's short and doesn't have a lip on it, so when I plugged it into the computer it dangled and didn't properly fit into the PSU. I also had to install the PSU upside down, since my case was poorly made as I said. I recommend buying another cable, as I luckily had a spare cable of the same type lying around the house and I made sure that the voltage was the same before using it, luckily it was, so I used it and the computer I used it for building is fabulous. Wattage is sufficient for higher end computers, though I highly suggest not skimping out on cooling and thermals if you're going to make a higher end PC, as I'm looking to get some water cooling for my CPU now as it runs hot.
Date published: 2020-07-29
Rated 3 out of 5 by from It does its job well The psu is good enough but sometimes the fan starts to make noises I dont know if my psu is faulty or if it's a normal thing. And the cables that are used to power the graphics cards are connected so when I connected 1 cable to the gpu u can see the order cable and there is no way to hide it which make the build look a bit bad but I dont mind it so make sure u are sure u wont mind it too before buying it.
Date published: 2020-07-27
Rated 5 out of 5 by from very stable system Nice power supply for its price range It works quietly and have had no stability issues
Date published: 2020-07-27
