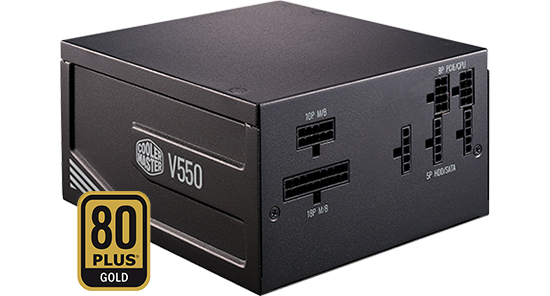

V-Series 550 Watt Fully Modular Gold Power Supply by Cooler Master

cooler master v series gold 550w psu

POWER TO MATCH UP WITH EVERY NEED Supply incredible power to your system with the V Gold Series 550W power supply. Equipped with an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation and a hardware based hybrid switch, you can achieve total control over your power. It uses a 135mm FDB fan for smooth and efficient cooling, along with 16AWG PCIe cables, and is supported by a fantastic ten year warranty. It works with 100% Japanese capacitors, a half-bridge LLC resonant converter, and DC-DC circuitry. Cooler Master have combined a number of innovations and improvements from past products to develop a versatile PSU that meets any users needs and keep up with a variety of demanding tasks.

Ultra-Silent Fan Operation

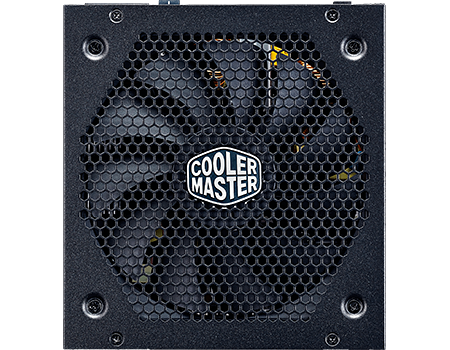

fluid dynamic fan

SUPER-EFFICIENT 135mm FLUID DYNAMIC FAN BEARING The V Gold PSU works efficiently to keep cool under pressure. It utilizes a fluid dynamic fan bearing that creates less friction, which works well for low RPM operations. This innovative technology, combined with a 135mm fan keeps your PSU fan running smoothly and more efficiently for longer, keeping noise to a minimum whilst extending the lifespan of your PSU.

Choose Cooling that Works Best for You

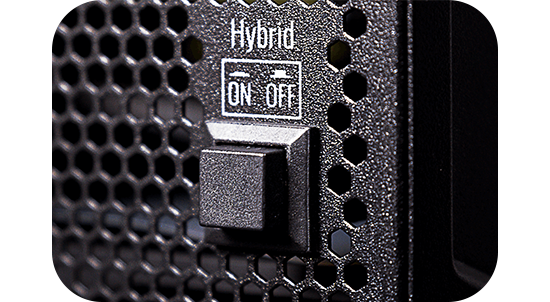

hybrid button

DEDICATED HYBRID SWITCH When you're completing less demanding tasks, the semi-fanless mode will keep your PSU completely silent when under 40% maximum load. The integrated hybrid switch allows you to disengage fanless mode at any time with the press of a button for testing, debugging or simply achieving maximum cooling at all times.

V Series Gold 550W Connections

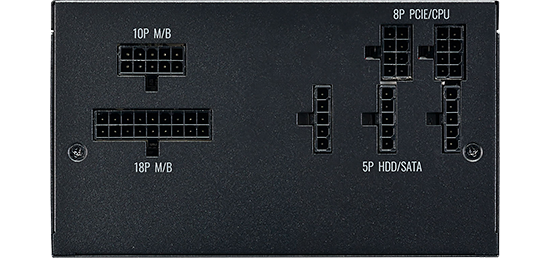

psu ports

INTUITIVE HEAT RESISTANT CABLING This superior PSU comes with 16AWG fully modular PCI-e cables. These are thicker than industry standard 18AWG cables, meaning less heat resistance during use. This reduction in heat resistance improves efficiency and stability so your components can get the most out of that 80 PLUS Gold rating, making your entire system safer and cooler.

1 x 4+4-pin CPU +12V (EPS) | 1 x 4-pin FDD Power
4 x 4-pin Molex | 2 x 6+2-pin PCIe | 8 x SATA

80 PLUS Gold Certified

efficiency gold rating

MORE EFFICIENT POWER USAGE The efficiency of your PSU is an important factor as it directly affects your systems performance and your power bill. The higher a PSU's efficiency is, the less power it needs to power your system. The V Gold provides an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.

Specifications
Size ATX
Edition V-Series Gold
Wattage 550 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 45 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 45 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 4 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 86 x 160 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN96646
Model Number MPY-5501-AFAAGV-UK
GTIN 4719512068557
