Scan code: LN97692 Manufacturer code: LH55PHFPMGC/EN

Samsung 55" PH55F-P Full HD SMART Signage Panel

55" Samsung PH55F-P Signage Monitor, FHD, E-LED BLU, 60Hz, 8ms, 4000:1, 700cd/m², VESA, DVI/HDMI/DP/USB/Rj45

Free Upgrade to XDP Delivery on oversized items - (N.B. 3pm Cut-Off) - LN 58007
Thumbnail 1 : Samsung 55" PH55F-P Full HD SMART Signage Panel Thumbnail 2 : Samsung 55" PH55F-P Full HD SMART Signage Panel Thumbnail 3 : Samsung 55" PH55F-P Full HD SMART Signage Panel Thumbnail 4 : Samsung 55" PH55F-P Full HD SMART Signage Panel
Scan code: LN97692 Manufacturer code: LH55PHFPMGC/EN
£929.99Item currently awaiting an ETA
Pre order
From £31.78 / month (APR 14.9%)
Monthly Payment: £83.49
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £929.99
Total inc. interest: £1,001.85
Monthly Payment: £44.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £929.99
Total inc. interest: £1,071.30
Monthly Payment: £31.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £929.99
Total inc. interest: £1,143.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £19.97 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Samsung 55" SMART Signage Panel with Full HD Visuals

Samsung PH55F-P FHD SMART Slim Signage Panel

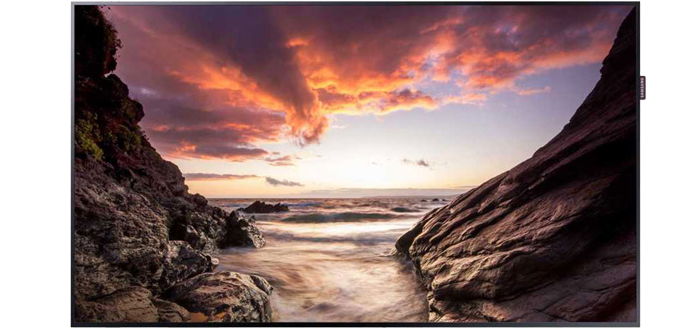

Experience Premium TIZEN-Powered Displays Samsung’s superior SMART PHF-P series offers a powerful visual performance with a 55-inch FHD 1920 x 1080 stunning display. Equipped with a non-glare frontal panel, the PHF-P series allows users to create content through the enhanced TIZEN-based SSSP 4.0 platform, and Samsung’s MagicInfo Player S4. It's sleek design features a slim depth of (29.9mm) and narrow bezel of (6.9mm). There is further support for various external sources including Samsung media players such as PIM and SBB.

55 InchScreen Size

1920 x 1080Full HD Resolution

Edge LED BLUPanel Type

Always be Assured of High Visibility and Readability

design

Bring an end to unwanted glare Equipped with a non-glare frontal panel, the PHF and PMF Series displays reduce natural and ambient light interference to ensure continuous readability in any location. Image visibility and information readability are deemed to be very high, because it is less reflective under light or sunlight, which poses no issues when used with QSR menu boards, or airport flight schedule boards with ample natural light.

down

Full HD Resolution

down

High brightness

up

Non-glare

up

24/7 Operation

Unlock Easier and more Flexible Control

control

a centralized infrared receiver The standalone displays’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. All models can receive the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.

secure

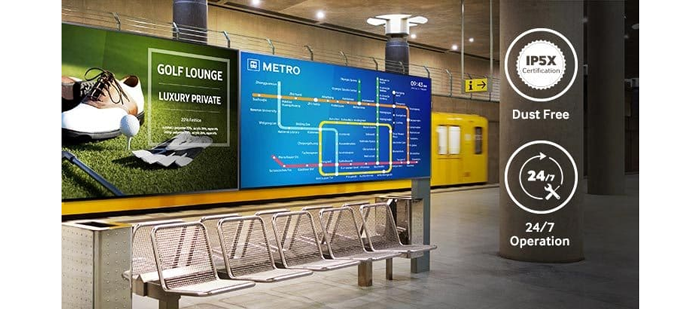

your display is protected from a range of conditions All of Samsung’s new PMF and PHF standalone displays are IP5x certified, signifying their dust-resistant design and ability to withstand a range of environmental conditions. The certification alleviates concerns about dust accumulating on displays installed on subway trains or on external platforms. Customers can conveniently use this IP5x certified display without needing to prepare additional enclosure in dusty places. Uninterrupted, 24/7 content delivery is always assured regardless of surrounding natural or interactive conditions.

Content Creation, Scheduling and Deployment Tools

Colour display

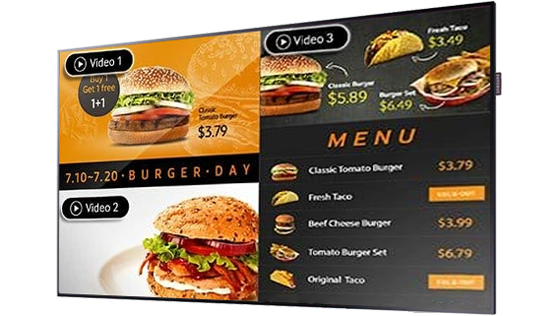

robust options for your content With MagicInfo Player S4, the new graphic engine applied to 2016 SMART Signage heightens the overall display performance while ensuring seamless transition of content and smoother ticker text scrolling. Meanwhile, high resolution images (max. 5120 X 5120) are supported and more than 100 text boxes are available. When its Touch Overlay option is utilized, the user can fully navigate the web browser through the tap of a finger on the display thus mitigating the need for additional PCs. More than just a media player, it also functions as an advanced content management solution which can allow you to play media files, set and edit media playback schedules, plus configure the display as a video wall and control device through the use of its WiFi connection, on/off timer and more. The newly designed graphical user interface enables enhanced ease-of-use and local content management capability.

All-new Embedded Media Player Powered by TIZEN™

Tizen

Easy Development and simple usability The new 2016 SMART Signage that supports SSSP 4.0 allows for a stronger, faster and more stable performance than its previous models. Transcending past hardware performance, the new SSSP 4.0 enables CMS partners to develop and deploy advanced web applications which can help to effectively manage content and SMART Signage for their customers. The ability to develop the solution further is facilitated, thanks to various development tools such as SW Development Kit (SDK) or Remote Web Inspector (RW). In addition, as it is a web standard-based open platform, it is highly compatible with HTML5. The SSSP 4.0 user screen has also been improved (new home UI) and quick access for web apps is supported through URL Launcher.

Specifications
Screen Size 55"
Edition PH55F-P
Panel Type E-LED BLU
Panel Coating
Panel Finish
Touchsceen
Backlight
Pitch Size 0.560(H) x 0.560(V)
Curvature N/A
Adaptive Frame-rate Technology N/A
HDCP Yes
Connectors
  • 1 x 3.5mm Audio In
  • 1 x CVBS
  • 2 x DisplayPort 1.2
  • 1 x DVI
  • 1 x DVI-D
  • 2 x HDMI 2.0
  • 1 x RJ45
  • 1 x RS232C (In/Out)
  • 1 x Stereo Mini Jack
  • 2 x USB 2.0
Position Adjustment
Resolution 1920x1080 (Full HD)
Aspect Ratio 16:9
Refresh Rate 60Hz
Response Time 6 ms
Brightness 700 cd/m²
Viewing Angle 178 (°H/°V)
Contrast Ratio/Dynamic Contrast Ratio 4000:1
Color Gamut 72%
Color Bit Depth 10-Bit (1.07B Colours)
HDR Support No
Supported HDR Standards
Speakers Yes
Speaker Configuration 10W x2
Web Camera No
Power Usage (Switched on) 154 W
VESA 200 x 200
3D Support No
Anti-Theft Features
Included Accessories
Monitor Colour
Dimensions (with stand)
Dimensions (without stand) 1228.4 X 701.2 X 29.9 (WxHxD)
Weight (with Stand) 16.3 kg
Note
Additional Information
Scan Code LN97692
Model Number LH55PHFPMGC/EN
GTIN 8806088677309
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
Samsung
Telephone:
0330 7262677
