Scan code: LN64377 Manufacturer code: MZHPV512HDGL-00000

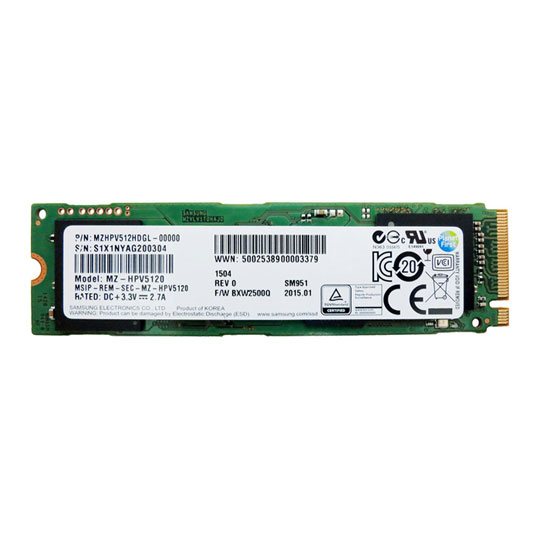

Samsung SM951 512GB M.2 PCI-e AHCI SSD

512GB Samsung SM951, M.2 (22x80) PCIe 3.0 (x4) AHCI SSD, MLC NAND, Read 2150MB/s, Write 1500MB/s, 90k/70k IOPS OEM

Thumbnail 1 : Samsung SM951 512GB M.2 PCI-e AHCI SSD Thumbnail 2 : Samsung SM951 512GB M.2 PCI-e AHCI SSD
Scan code: LN64377 Manufacturer code: MZHPV512HDGL-00000
3xs Approved
Call for price
Delivery Options
  • By DPD On 25th Apr 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview World Class Performance in a Tiny Form Factor

The Samsung SM951 512GB M.2 PCIe SSD (AHCI model) is the new performance leader in M.2 form factor SSD's, providing up to 2150MB/s read and 1500MB/s write sequential data transfer rates.

• Extreme performance - up to 2150/1500 sequential read/write data transfer rates
• PCIe 3.0 device, backwards compatible with PCIe 2.0
• Small M.2 form factor plugs straight into your PCIe-based M.2 socket with no additional cables required

This is the OEM version of MZHPV512HDGL-00000 Features • PCIe Gen3 8Gb/s Interface, up to 4 Lanes
• Compliant with PCI Express Base Specification Rev. 3.0
• Support Standard AHCI driver
• Power Saving Modes:
- Supporting APM
- Supporting L1.2 Mode
• Support NCQ (Up to 32 depth) Command Set
• Support SSD Enhanced S.M.A.R.T. Feature Set
• Support TRIM Command
• End-to-End Data Protection
• RoHS Compliant
Specifications
Capacity 512GB
Edition SM951
Form Factor M.2 (2280)
Height 3.73 mm
Interface PCIe 3.0 (x4)
Host Controller Interface AHCI
Controller
Flash Memory Type MLC NAND
Max. Read 2150 MB/s
Max. Write 1500 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 90000 IOPS
Max. Random Write 4K 70000 IOPS
Latency N/A
Special Features
Power Consumption (active) 6.5
Max. Endurance Rating
MTBF
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x M.2 (PCIe)
OS Support
Bracket N/A
Dimensions
Weight
Package Type OEM
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
RTB Period:
1 months
Manufacturer Contact Details
Telephone:
0330 (7267864)
Loading Please Wait

Please wait . . .

TekSpek Guides
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster

Read More

SSDs
SSDs
Date Issued: 7th May 2010

Solid-state drives (SSDs) are fast becoming the must-have PC components of 2010. Serving as primary storage space for high-end computers, SSD's super-fast transfer rates and near-instant accesses offer genuine advantages over traditional spindle-based magnetic drives.

Read More

PCI Express
PCI Express
Date Issued: 20th Oct 2008

A motherboard’s main job is to act as a conduit between the various hardware elements that make up a PC. It needs to be able to link the desired CPU(s), system memory, graphics card, hard drive(s), and add-in cards and enable them to work in harmony.

Read More

Reviews
512GB Samsung SM951, M.2 (22x80) PCIe 3.0 (x4) AHCI SSD, MLC NAND, Read 2150MB/s, Write 1500MB/s, 90k/70k IOPS OEM is rated 4.6 out of 5 by 18.
Rated 5 out of 5 by from 512gd Samsung SM951 M2 PCIE X4 I would highly recommend this ssd if your MB supports it , completely transformed my desktop, Very easy to install and easy to clone my original c drive too. only an hour to complete entire process
Date published: 2016-03-21
Rated 5 out of 5 by from The way forward for system drives! Super compact installed on the motherboard itself. Very fast, can be used in RAID with two installed for even faster read/write. A fraction of the size of a 2.5" SSD. Got to be the way forward for system drives.
Date published: 2016-01-31
Rated 1 out of 5 by from Stitched up like a kipper! I bought this thinking it was an SM951, like I already had (from another supplier). It is an SM951, but AHCI, not NMVe. My own fault for paying pretty much the same money for an inferior product. It wasn't until I opened the anti-static bag that I noticed the difference... Too late. Bah! It would have been nice to have been warned that two products share the same name... but quite different performance.
Date published: 2016-01-06
Rated 5 out of 5 by from Love it :) Works great in my ASUS X99 Deluxe as my boot drive. I'm tripple booting and have been through a lot of pain to get that working, so let me save you some by pointing out that this drive supports UEFI only - legacy windows will NOT install on this. You're welcome ;)
Date published: 2015-10-11
Rated 5 out of 5 by from Not Intuitive but well worth the effort. When I first enquired about this SSD and asked if it was difficult to set up I was told all I had to do was fit it and my Windows Install Media would find it as an OS install destination. WRONG This wee beasty caused me a fair bit of hair pulling. Don't get me wrong I think I would have had similar problems with any SSD. Maybe it was my setup (ASUS X99 mobo, Win 8.1) Turned out I had to create a bootable USB drive holding an image of win 8.1 to install from and also had to edit some bios settings. Searching forums online eventually got me up and running with this beauty. I still cant get over how blisteringly fast this SSD is! Highly recommended.....
Date published: 2015-10-10
Rated 5 out of 5 by from good and fast best ssd available for your z170 motherboard. fast very fast
Date published: 2015-10-09
Rated 5 out of 5 by from Superfast Amazing the difference. Power on and off super fast and apps and data load like lightning. Highly recommended.
Date published: 2015-10-02
Rated 5 out of 5 by from Incredibly fast I was using an old corsair F3 SSD before I got this, cannot believe the difference in speed between the two. I'm not even running it at full speed due to only have PCIE 2.0 not 3.0 that it is capable of.
Date published: 2015-10-01
  • y_2019, m_4, d_22, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_18
  • loc_en_GB, sid_64377, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Can this be used as a boot drive on Asus x99 motherboards?

Asked by: SouthLan
Yes, I'm using it on the X99 Deluxe. But note that this drive supports a UEFI Windows install only - the partition table needs to be GUID not MBR. If you are formatting the drive using OSX's disk utils then do not format the windows partitions as FAT, or OSX will create a hybrid GUID/MBR table which will prevent windows from installing on this device (it will see this as MBR and refuse).
Answered by: kcmyoung
Date published: 2015-12-13

Will you be stocking the SM951 NVMe version? If so, when?

Asked by: mattCCSP
The NVMe version of SM951 is listed in various sizes (128, 256 and 512) - but it says stock overdue since 18/08/15. However I guess this means that they are due in stock imminently. Just search SM951 and it will list AHCI and NVMe versions separately.
Answered by: MattMcTavish
Date published: 2019-03-30
