New
Scan code: LN95937 Manufacturer code: GP-ASM2NE2512GTTDR

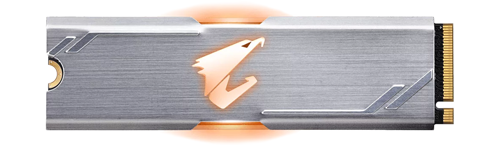

AORUS RGB 512GB M.2 PCIe NVMe SSD with Heatsink

512GB Gigabyte AORUS RGB, M.2 (2280) PCIe 3.0 (x4) NVMe 1.3 SSD, Phison, 3D TLC, 3480MB/s Read,2000MB/s Write, 360k/440k

Thumbnail 1 : AORUS RGB 512GB M.2 PCIe NVMe SSD with Heatsink Thumbnail 2 : AORUS RGB 512GB M.2 PCIe NVMe SSD with Heatsink Thumbnail 3 : AORUS RGB 512GB M.2 PCIe NVMe SSD with Heatsink Thumbnail 4 : AORUS RGB 512GB M.2 PCIe NVMe SSD with Heatsink AORUS RGB 512GB M.2 PCIe NVMe SSD with Heatsink : video thumbnail 1
Scan code: LN95937 Manufacturer code: GP-ASM2NE2512GTTDR
Call for price
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview AORUS RGB M.2 NVMe SSD: Your Game, Your Way

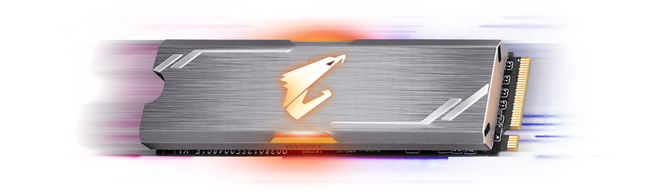

Xtreme Storage Performance
With the new NVMe interface controller, AORUS RGB M.2 SSD delivers blazing speed up to 3480MB/sec sequential read, and up to 2000MB/s sequential write. Furthermore, the heatsink keeps controller and memory temperatures low, ensuring that SSD performance won't be compromised. This is particularly important to gamers since components heat up significantly during game play. Get ready to enter the next generation of computing, with faster and smoother in game streaming and graphic intensive rendering.

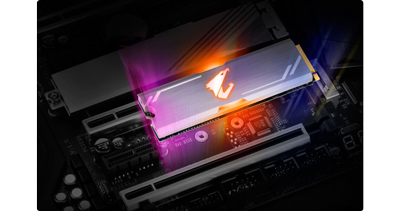

Easy Upgrade for PCs
M.2 2280 is a small form factor that is a perfect fit to all kinds of PC upgrades. M.2 slots are becoming more popular on motherboards these days. You can easily install the SSD to enjoy faster response.

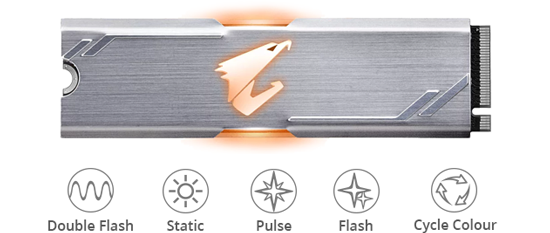

RGB Fusion
Industry first RGB M.2 SSD that can synchronize perfectly with motherboards*. It supports 5 lighting effects including static, flash, double flash, and colour cycle.
*Compatible motherboards are Z390 AORUS series and X299 AORUS MASTER.

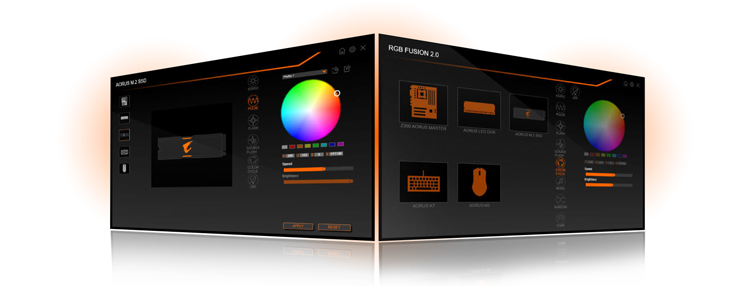

RGB Fusion Utility
With an integrated intuitive user interface, the RGB Fusion provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

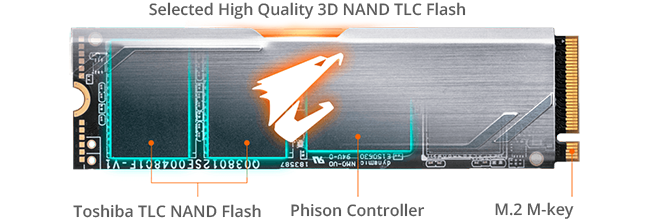

Quality Guaranteed
• High Quality 3D NAND TLC Flash Memory from Toshiba.
• Phison Controller.
• Limited 5-Year Warranty. Features • 512GB Capacity SSD with AORUS RGB Logo Heatsink.
• RGB Lighting can Sync with compatible motherboards (Z390 AORUS Series & X299 AORUS MASTER) via RGB Fusion 2.0 Software.
• M.2 2280 Form Factor with PCI-Express 3.0 x4, NVMe 1.3 Interface.
• Up to 3480 MB/s Sequential Read & 2000 MB/s Sequential Write speed.
• TRIM & S.M.A.R.T supported.
• AES 256 supported.
• Limited 5-Year Warranty.
Specifications
Capacity 512GB
Edition AORUS RGB
Form Factor M.2 (2280)
Height 8.1 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe 1.3
Controller Phison
Flash Memory Type ToshiBa BiCS3 3D NAND TLC Flash
Max. Read 3480 MB/s
Max. Write 2000 MB/s
DRAM Cache Memory 512MB
DRAM Cache Memory Type
Max. Random Read 4K 360,000 IOPS
Max. Random Write 4K 440,000 IOPS
Latency N/A
Special Features
  • AES 256-bit Encryption Support
  • Custom Heatsink
  • RGB AORUS Logo
  • S.M.A.R.T Support
  • TRIM Support
Power Consumption (active) 2.2W
Max. Endurance Rating
MTBF 1,800,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x M.2 (PCIe)
OS Support Windows OS
Bracket N/A
Dimensions 22.3 x 8.1 x 80 mm (WxHxD)
Weight
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
