Scan code: LN122734 Manufacturer code: SST-EX500-B

SilverStone Extreme 500 SFX 80+ Bronze 500W Power Supply/PSU

500W SilverStone Extreme 500, Fully Wired, 80PLUS Bronze, Single Rail, 41.66A, Silent 92mm Fan, SFX PSU

Thumbnail 1 : SilverStone Extreme 500 SFX 80+ Bronze 500W Power Supply/PSU Thumbnail 2 : SilverStone Extreme 500 SFX 80+ Bronze 500W Power Supply/PSU Thumbnail 3 : SilverStone Extreme 500 SFX 80+ Bronze 500W Power Supply/PSU
Scan code: LN122734 Manufacturer code: SST-EX500-B
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
£69.98
Get it Tomorrow, 21 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

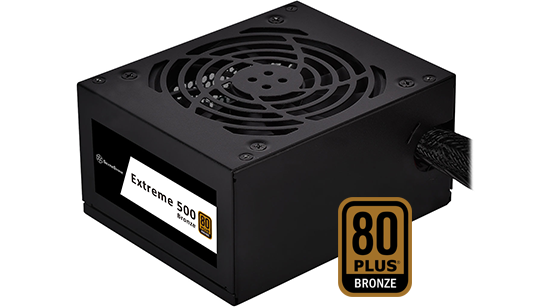

Extreme 500 SFX 80+ Bronze 500W Power Supply from SilverStone

Extreme 500

extreme power, extreme performance Provide your PC with superior power with the Extreme 500 Bronze PSU from SilverStone. With support for both standard SFX and ATX form factors with the included bracket, you can easily install it into any build. Utilize 500W of continuous power with a 40℃ operating temperature. The Extreme 500 Bronze uses a 92mm fan that offers silent running performance along with industry-leading +12V rail. The 80 PLUS Bronze certification means this PSU runs with impressive efficiency 24/7.

Features of the Extreme 500 SFX PSU

down

80 plus bronzeDesigned for 80 PLUS Bronze level of efficiency to reduce wasted heat and save on electricity.

down

92mm fanBuilt-in 92 mm fan has excellent airflow and low noise, perfect for quiet home or office use.

down

+12v railPowerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

down

easy installSoft and flexible thin cables designed to ease cable management process.

down

japanese capacitorJapanese capacitors ensure you get the best power possible for your PC.

Advanced Protections for Safety and Security

down

Over Current Protection

down

Over Voltage Protection

down

Short Circuit Protection

down

Over Power Protection

down

Over Temperature Protection

A Wealth of Connectivity Options

down

24 / 20-Pin motherboard connector.

down

8-Pin EPS/ATX 12V connector.

down

8 / 4-Pin EPS / ATX 12V connector.

down

8 / 6 PCIe connector.

down

SATA connector.

down

4-Pin peripheral connector.

down

4-Pin floppy connector.

down

Silent 92mm fan.

down

Included SFX to ATX adapter bracket.

Specifications
Size SFX
Edition SST-EX500-B
Wattage 500 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 92mm
Internal +12V Rails Single Rail
Rail 1 +12V 41.66 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 41.66 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Adapter
  • 2 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 3 x SATA
Dimensions 125 x 63.5 x 100 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN122734
Model Number SST-EX500-B
GTIN 50021160326
