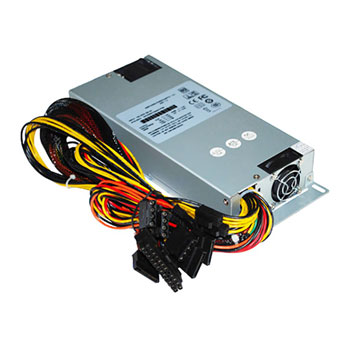

Logic Case Single 1U 500W 80 Plus Gold PSU

500W Logic Case Single 1U 80Plus Gold PSU

Logic Case
Scan code: LN84527 Manufacturer code: SC-SG1U500 Request call
£89.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview 500W Single 1U Industrial PSU 80Plus Gold Features Technical Details
PSU Form Factor 1U Industrial
Nominal Wattage 400W
Max (Peak) Wattage 500W
80 Plus Certification 80 Plus Gold
Input Current 100-240v 47-63HZ
Output Current

+3.3v 16A
+5v 16A
+12v1 18A
+12v2 16A
+5vSB 2.5A
-5v 0.5A
Connectors

4*Molex-4Pin,
5*SATA,
1*24Pin,
2*4 pin + 4 Pin EPS
Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 2 x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions D*W*H 220*100*40mm
Specifications
Size
Edition
Wattage
80 PLUS Certification
Max. Efficiency
Cooling
Fans
Internal +12V Rails
Rail 1 +12V N/A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular No
Modularity
SLI/CrossFire No
EPS 12V No
Motherboard Connector
Connectors
Dimensions
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
