Scan code: LN75615 Manufacturer code: 100-W1-0500-K3

EVGA 500W 80+ ATX Power Supply/PSU 100-W1-0500-K3

500W EVGA, Fully Wired 80PLUS, SLI/CrossFire, Single Rail, 40A +12V, 120mm Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : EVGA 500W 80+ ATX Power Supply/PSU 100-W1-0500-K3
Scan code: LN75615 Manufacturer code: 100-W1-0500-K3
Order now and get it tomorrow, Wed 6th Jul
£34.99
Add To Basket
Get it Tomorrow, 06 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 6th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

500 Watt 80 PLUS ATX PSU from EVGA

PSU EVGA

CRAFTED FOR HIGH-PERFORMANCE AT AN UNBEATABLE VALUE The EVGA 500W PSU is a remarkable choice that offers an attractive price point. When building on a budget, the 500W can offer you continuous power at the same level as other EVGA power supplies. With 40A on a single +12V rail, it provides enough power to keep all your devices powered up. Save space with it's convenient & compact design and fully sleeved cables. The EVGA 500W power supply is a superb asset for powering your next gaming system.

Enjoy Perfect Power Output for your System

rail

SINGLE +12V RAIL A single +12V rail offers a fantastic power output for your system. It offers perfect rail stability and compatibility with the latest hardware. EVGA 500W delivers up to 40A respectively on a single rail for continuous efficient power.

Excellent Acoustics for Quiet Operation

fan

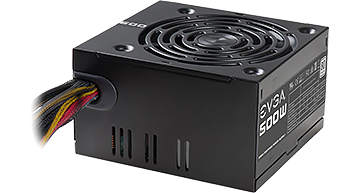

SILENT AUTO FAN The EVGA 500W utilizes a quiet and intelligent Auto Fan that provides near-silent operation, so it won't interrupt your important gaming when it's powering your system.

Discover the Power of Multiple GPUs

nvidia sli

READY FOR NVIDIA SLI Enjoy extreme graphics power with the EVGA 500W, which is capable of running multiple NVIDIA graphics cards to give you the ultimate gaming experience. The 500W provides you with the power you need to drive demanding systems and achieve impressive overclocks.

Have Peace of Mind during Heavy-Duty Operation

protections

Built-in PSU Protections The EVGA 500W features a range of heavy-duty protections that gives you the coverage you need to build a demanding system. Over Voltage, Under Voltage, Over Current, Over Power, Short Circuit and Over Temperature Protection all work to keep your PSU at the top of the game.

EVGA 500W Connections

evga 600w connections

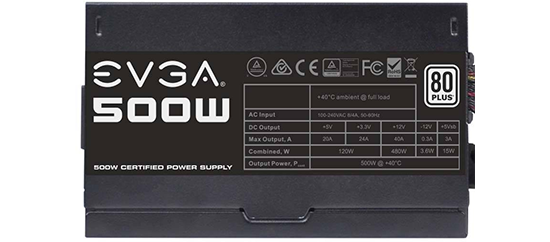

CONNECT EVERYTHING YOU NEED 1 x 24 Pin ATX | 1 x 8 Pin EPS (CPU) | 2 x 8 Pin PCIe | 6 x Sata | 3 x Four Pin Peripheral | 1 x Floppy

Excellent Power for Years to Come

EVGA Certification and Warranty

MAXIMUM EFFICIENCY GUARANTEED 80 PLUS Certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load this power supply is always 80% efficient or higher. The EVGA 500W PSU also comes with award-winning EVGA support and a generous 3 year warranty, so you'll be backed up for years to come.

Specifications
Size ATX
Edition 500W PSU
Wattage 500 W
80 PLUS Certification 80 PLUS White
Max. Efficiency (at 230Vac) 80 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 40 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 40 A
Modular No
Modularity Fully Wired
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 6 x SATA
Dimensions 150 x 85 x 140 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN75615
Model Number 100-W1-0500-K3
GTIN 4250812404688
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
EVGA
Telephone:
01788 247 298
TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

500W EVGA, 80 PLUS Fully Wired, SLI/CrossFire, Single Rail, 40A +12V, 120mm Fan, ATX PSU is rated 4.7 out of 5 by 6.
Rated 5 out of 5 by from Decent power supply at reasonable price point I'm not a power user by any stretch of the imagination and my current PC is ancient by modern standards but it does everything I need it to, so when the power supply started to play up, I looked around for a suitable replacement. Scan came up trumps with this unit which is the best mix of quality vs cost [for me] It was a good price from SCAN and delivery was really quick which meant my PC was up and running again in no time.Runs nice and quiet and doesn't produce too much heat. The only thing I would say to watch out for if you are buying this, is that as the leads are all "hard wired" [ie not the modular plug in type design] you need space in your PC case to coil up the leads you don't use.
Date published: 2020-09-06
Rated 4 out of 5 by from Good Works very well, had no problems whatsoever after about 6 weeks of use.
Date published: 2020-05-17
Rated 4 out of 5 by from Replacement PSU Bought this to replace a failing PSU and it was a straight swap which took about 15 minutes
Date published: 2020-02-06
Rated 5 out of 5 by from Worth every penny I needed a new power supply for my new graphics card (Also bought here) so I decided to go with something premium even if it costs a bit more. Plug and play. No problems whatsoever and looks nice in my gaming case.
Date published: 2017-04-04
Rated 5 out of 5 by from Did what it said on the tin Easy to install - plenty of cable options - quiet in operation
Date published: 2017-02-19
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_5
  • loc_en_GB, sid_75615, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Does it come with the cable to connect to the wall?

Asked by: pcbuildjdb
Yes
Answered by: Samolot
Date published: 2020-09-06

does this psu have to be mounted with the fan uppermost? I.e. does it require a case with vented top / fan cut-out?

Asked by: BilboJ
No,it's mounted with the fan pointing down in my PC case as has been running fine since installation last month.
Answered by: Samolot
Date published: 2020-09-07

Does this have the same connections as the old version

Hi, I need to replace my old EVGA 500W which is end of life: https://www.scan.co.uk/products/500w-evga-100-w1-0500-kr-80plus-single-rail-atx-psu Does this one have the same connections? Will it be a direct replacement for me? They are both shown as 100-W1-0500-KR so I assume so - just wanted to check before ordering. Thank you
Asked by: Topsie
Hello, These two PSU's look to have the same power connections available. Regards,
Answered by: JackB
Date published: 2017-12-05
