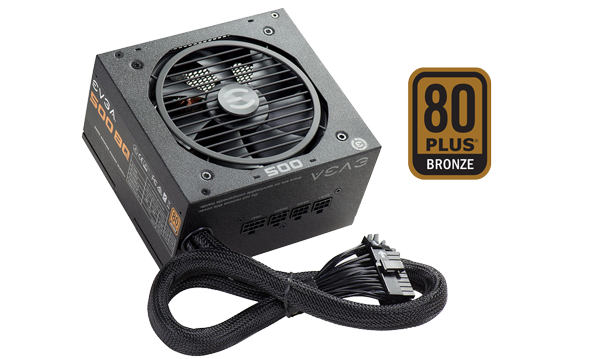

EVGA BQ 500 Watt Hybrid Modular PSU/Power Supply

500W EVGA 500 BQ, 80PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 41.6A +12V, 1x120mm Fan, ATX PSU

Thumbnail 1 : EVGA BQ 500 Watt Hybrid Modular PSU/Power Supply Thumbnail 2 : EVGA BQ 500 Watt Hybrid Modular PSU/Power Supply Thumbnail 3 : EVGA BQ 500 Watt Hybrid Modular PSU/Power Supply Thumbnail 4 : EVGA BQ 500 Watt Hybrid Modular PSU/Power Supply
Scan code: LN76725 Manufacturer code: 110-BQ-0500-K3
£59.99
Order now and receive it by Monday, 21st June
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

EVGA 500 Watt BQ Series Semi Modular Power Supply

EVGA BQ 500W 80PLUS Bronze Hybrid PSU

Great Quality, Great Value. EVGA introduce the BQ Series of power supplies, designed with both beginner and enthusiast needs in mind. Presenting the next generation in value – the EVGA BQ 500 Watt PSU. These power supplies take some of the best features from EVGA's award winning power supply lineup, like a 120mm fan with near silent operation and modular cables to make one of the best values today in high performance power supplies.

Excellent Performance with Great Quality

NVIDIA SLI READY

NVIDIA SLI READYRun multiple NVIDIA graphics cards for the ultimate gaming experience. The EVGA BQ gives you the power you need to drive these demanding systems and achieve the best overclocks.

Modular

MODULAR DESIGNModular allows some cables to be removed from the PSU for ease of installation and removal. You can leave off unnecessary cables to reduce case clutter and maximize case airflow.

+12V Rail

SINGLE +12V RAILA single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

Capacitors

EXCELLENT PERFORMANCE85% efficiency or higher under typical loads and high quality Japanese brand capacitors ensure long-term reliability.

Innovative Hybrid Modular Design

EVGA BQ Series Design PSU

KEEP EVERYTHING SIMPLE The EVGA BQ Series PSUs feature a hybrid modular design allowing you to only use the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter. Includes the following heavy-duty protections, includingOVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection).

Bronze Rated Efficiency

EVGA Bronze Rated Certification Warranty

INCREDIBLE 3-YEAR WARRANTY The EVGA BQ Series PSU features a 80 Plus certification, which ensures your power supply isn't wasting power and turning it into excess heat. Under typical load this power supply is 85% efficient, or higher. Get reliable power and protection for years to come.

Specifications
Size ATX
Edition 500 BQ
Wattage 500 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 41.6 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 41.6 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 6 x SATA
Dimensions 150 x 85 x 140 mm (WxHxD)
Package Type
Additional Information
Scan Code LN76725
Model Number 110-BQ-0500-K3
GTIN 1601230525808
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
EVGA
Telephone:
01788 247 298

Additional Notes:
Remaning warranty direct with manufacturer.

Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

500W EVGA 500 BQ, 80PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 41.6A +12V, 1x120mm Fan, ATX PSU is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Excellent PSU for the price This PSU replaced a Corsair CX600 which had been making noise probably due to a failing fan bearing. The EVGA has excellent build quality, unable to hear the fan. The main capacitor is a Japanese branded capacitor which is a bonus at this price point. Be aware that the distance between the SATA connectors is short, I had to move the SSD nearer to the HDD. The braided cables are nice (everything black), the flat modular cables are fine but about average at this price range. There is a single PCI-E cable from the PSU daisy chaining the two PCI-E connectors so don't buy if looks are important to you. Only negative is that on the connectors that are "split" (the 24 pin, the 4+4 and PCI-E 6+2) they are extremely fiddly to join up, more than any other PSU I've used.
Date published: 2020-08-19
Rated 5 out of 5 by from Great PSU Was having trouble with my Corsair CX400M PSU, so I bought this as a replacement and has resolved the problem. Love the all black colours on the cabling and was a very easy fit into my current PC case. Would definitely recommend!
Date published: 2018-12-26
